2.3.5 SIP-GW4 Card (KX-TDA3450)
Function
4-channel SIP gateway card. Compliant with RFC 3261, 3262, 3264, 3311, and 4028 protocols, and ITU-T
G.729a/b and G.711 CODEC methods.
Accessories and User-supplied Items
Accessories (included): Ferrite core × 2, Extension Bolt × 1, Strap × 1, CD-ROM (including documentation
for web programming) × 1
User-supplied (not included): RJ45 connector
Notes
• The maximum length of the cable to be connected to this optional service card is 100 m.
• When connecting the RJ45 connector, attach the included ferrite core. Refer to "2.2.8 Attaching a
Ferrite Core".
• For programming instructions and other information about the SIP-GW4 card, refer to the
documentation for the SIP-GW4 card. To programme the SIP-GW4 card, use the web
programming designed for the SIP-GW4 card.
• To confirm the trunk connection, refer to "Confirming the Trunk Connection" in "2.10.1 Starting the
Hybrid IP-PBX".
Switch Settings
Switch Usage and Status Definition
SW1 Set the switch at "ON" position before installing the card in the PBX.
DIP-SW Keep all DIP switches at default "OFF" positions.

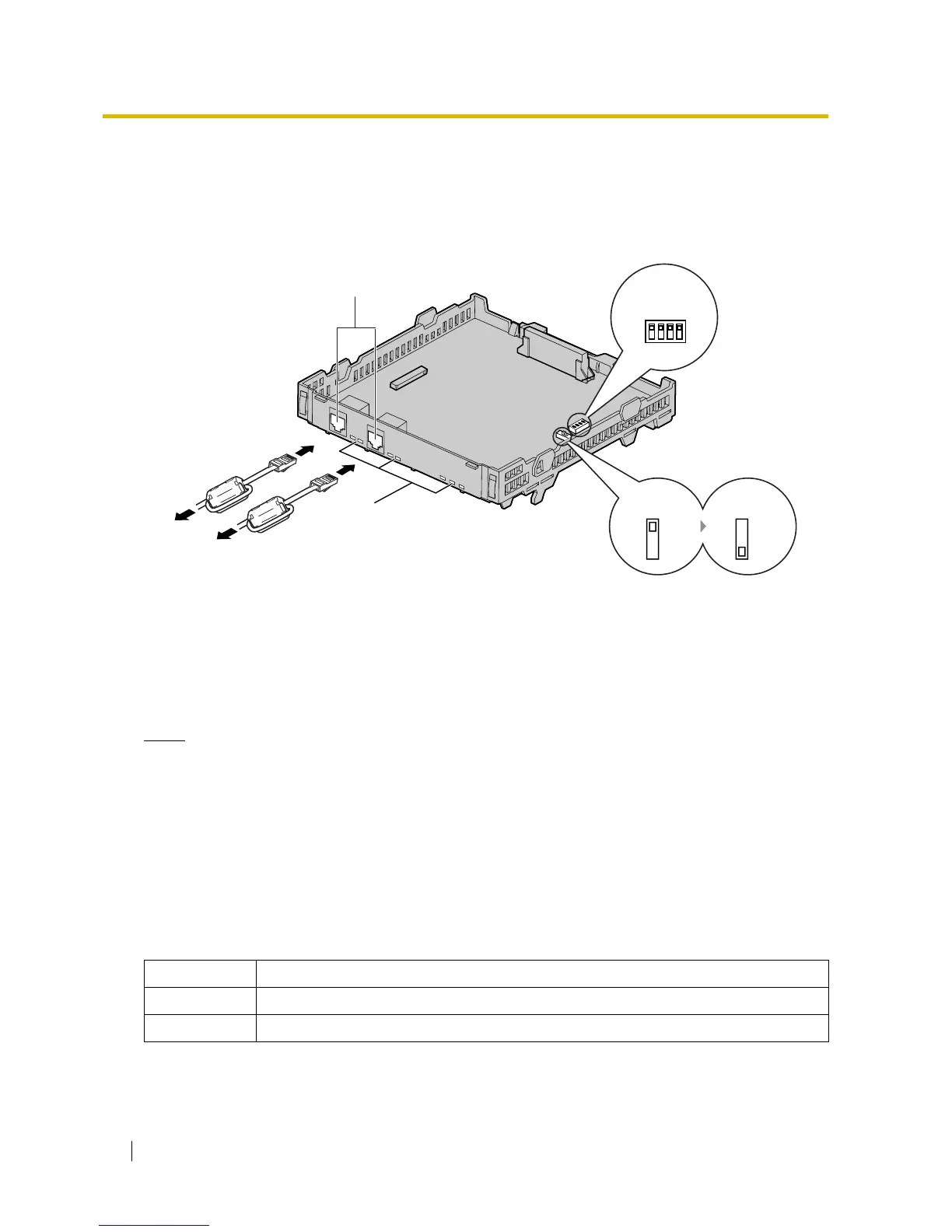

To LAN
RJ45
(10BASE-T/100BASE-TX)
LEDs
Set the switch to the
"ON" position.
OFF ON
SW1
OFF ON
SW1
OFF
1 2 3 INI
DIP-SW
To
Data Circuit Terminating
Equipment (DCE)
