Panasonic KX-TDA15

2.6 Connection of Extensions
86 Installation Manual
2.6 Connection of Extensions

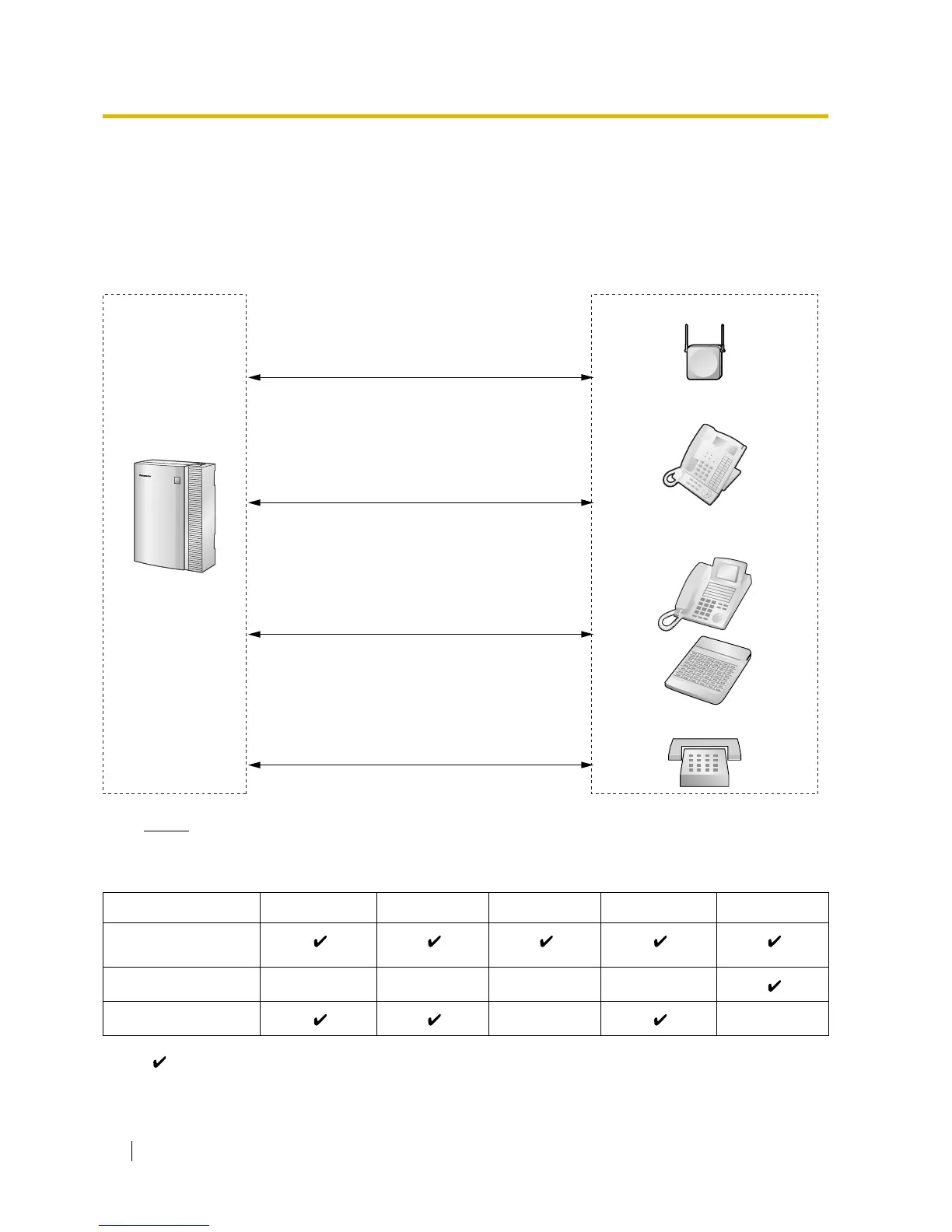

2.6.1 Maximum Cabling Distances of the Extension Wiring
(Twisted Cable)
Notice
The maximum cabling distance may vary depending on the conditions.
" " indicates that the extension card or Super Hybrid Ports support the terminal.
PT-interface CS DPT APT DSS Console SLT
Super Hybrid Ports
(Main Board)
SLC8 Cards
DLC8 Cards
Cable Maximum Distance
ø 0.4 mm: 500 m
ø 0.5 mm: 720 m
ø 0.6 mm: 830 m
CAT 5: 720 m
Cable Maximum Distance
ø 0.4 mm: 140 m
ø 0.5 mm: 229 m
ø 0.6 mm: 360 m
CAT 5: 229 m
Cable Maximum Distance
ø 0.4 mm: 698 m
ø 0.5 mm: 1128 m
ø 0.6 mm: 1798 m
CAT 5: 1128 m
Other PT and DSS Console
SLT
KX-T7600 Series DPT
Cable Maximum Distance
ø 0.4 mm: 222 m
ø 0.5 mm: 347 m
ø 0.6 mm: 500 m
CAT 5: 347 m
PT-interface CS
