2.4 Information about the Extension Cards
Installation Manual 71
2.4 Information about the Extension Cards

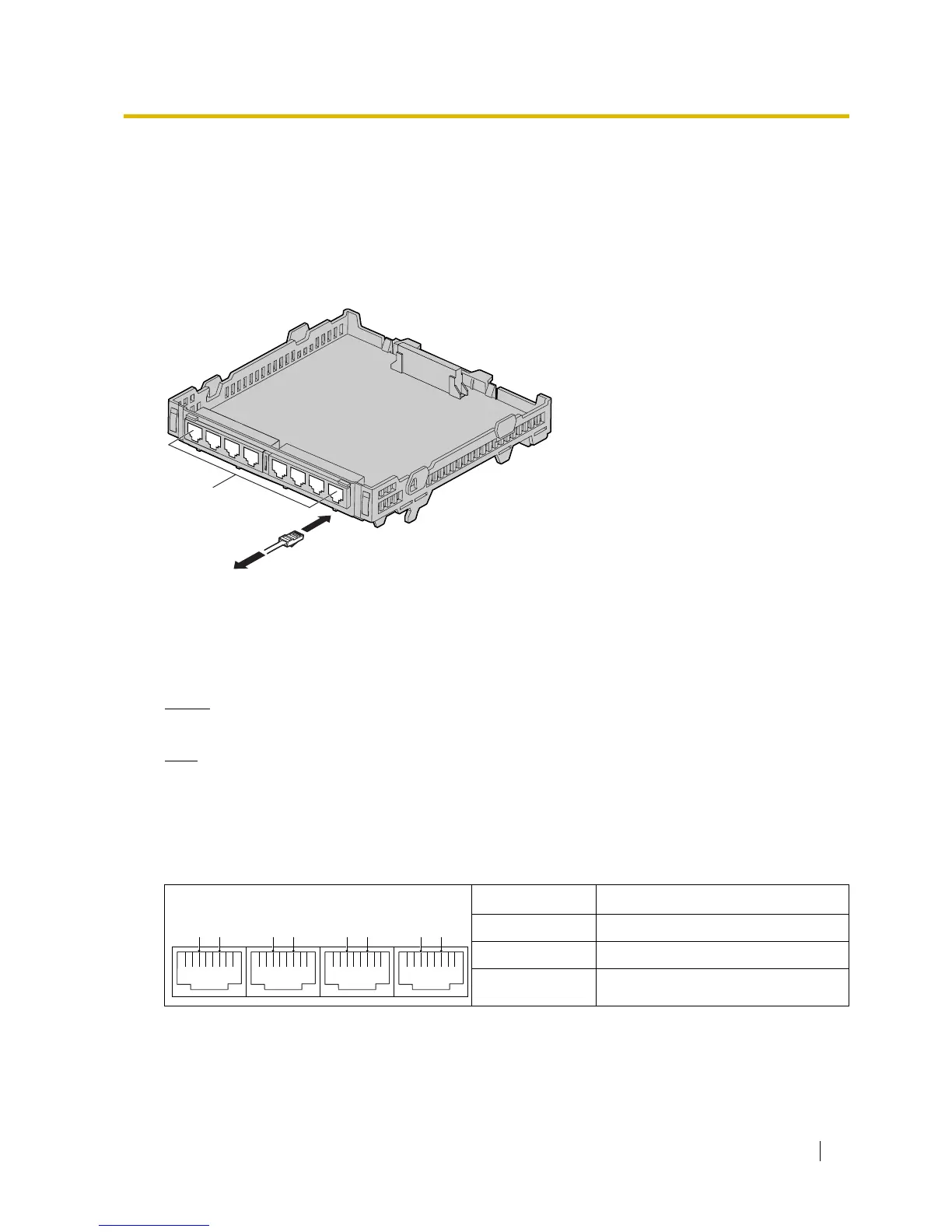

2.4.1 DLC8 Card (KX-TDA3172)
Function
8-port digital extension card for DPTs, DSS consoles, a VPS, and PT-interface CSs.
Accessories and User-supplied Items
Accessories (included): Extension Bolt × 1, Strap × 1
User-supplied (not included): RJ45 connector or RJ11 connector
Notice
The connector type may be RJ45 or RJ11 depending on the country/area.
Note
For details about connecting the CS, refer to "2.7.7 Connecting a Cell Station to the Hybrid IP-PBX".
Pin Assignments
RJ45 Connector
Signal Name Function
D1 Data port (High)
D2 Data port (Low)
– Reserved
To extension
RJ45
9 161 8
D2 D1
D2 D1
25 3217 24
D2 D1
D2 D1
