Panasonic KX-TDA15

2.5 Information about the Other Cards
Installation Manual 77

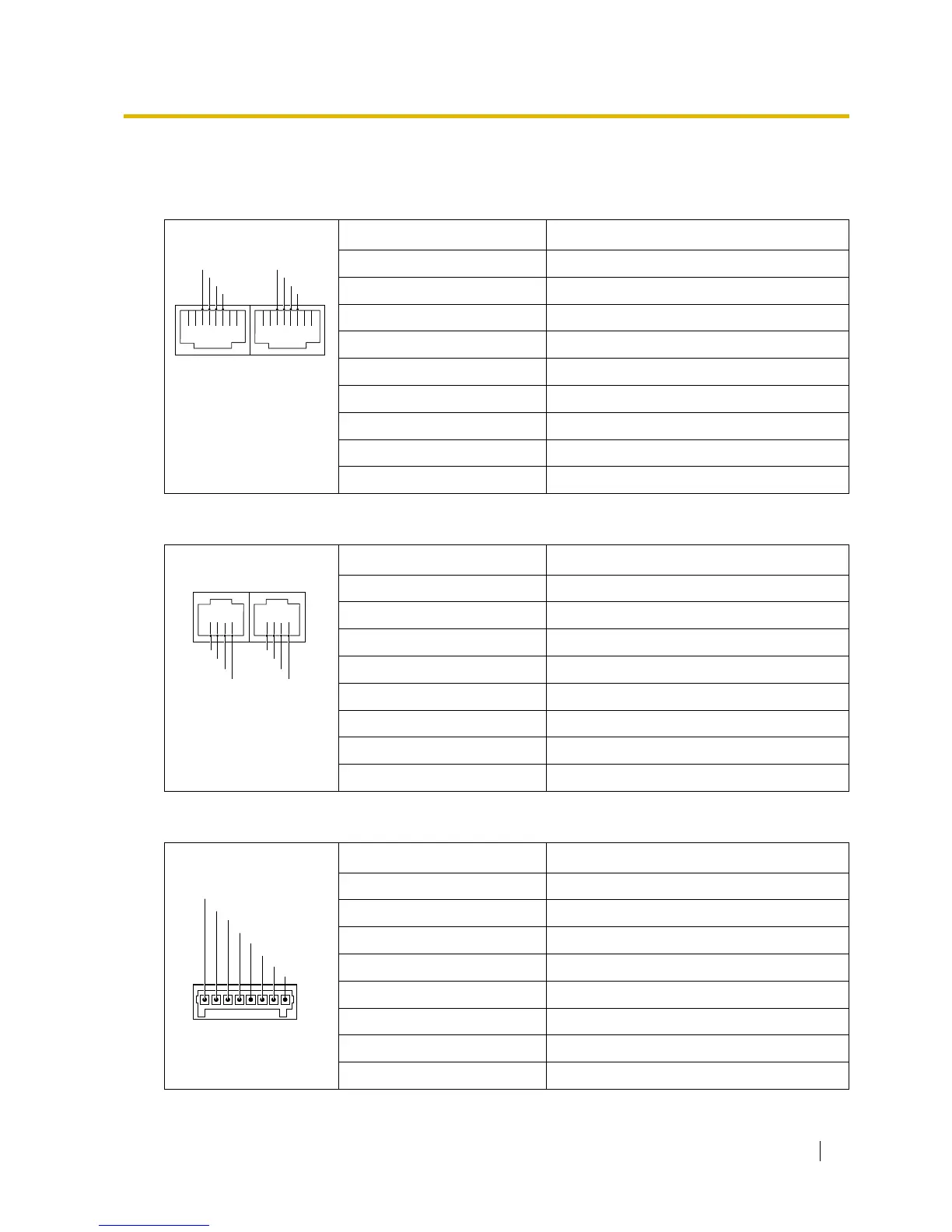

Pin Assignments
RJ45 Connector
RJ11 Connector
8-pin Terminal Block
Signal Name Function
DP2 Doorphone 2 transmit
DP1 Doorphone 1 transmit
com1 Doorphone 1 receive
com2 Doorphone 2 receive
DP4 Doorphone 4 transmit
DP3 Doorphone 3 transmit
com3 Doorphone 3 receive
com4 Doorphone 4 receive
–Reserved
Signal Name Function
DP2 Doorphone 2 transmit
DP1 Doorphone 1 transmit
com1 Doorphone 1 receive
com2 Doorphone 2 receive
DP4 Doorphone 4 transmit
DP3 Doorphone 3 transmit
com3 Doorphone 3 receive
com4 Doorphone 4 receive
Signal Name Function
SENS 1a Sensor Input 1
SENS 1b com 1
SENS 2a Sensor Input 2
SENS 2b com 2
SENS 3a Sensor Input 3
SENS 3b com 3
SENS 4a Sensor Input 4
SENS 4b com 4
1 8
DP2
DP1
com1
com2
9 16
DP4
DP3
com3
com4
DP2
DP1
com1
com2
DP4
DP3
com3
com4
5 81 4
1
8
SENS 1a
SENS 1b
SENS 2a
SENS 2b
SENS 3a
SENS 3b
SENS 4a
SENS 4b
