Panasonic KX-TDA15

2.5 Information about the Other Cards
80 Installation Manual

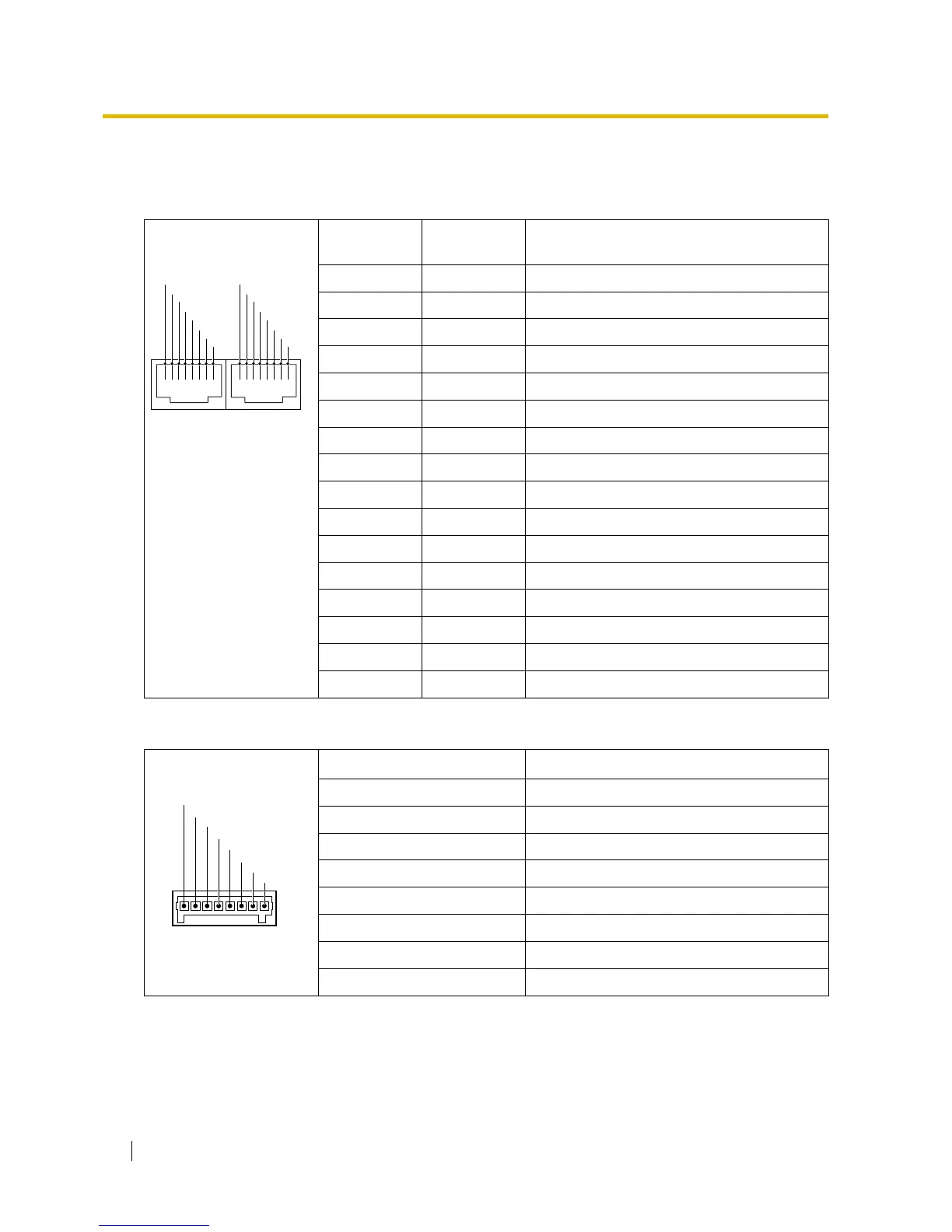

Pin Assignments
RJ45 Connector
8-pin Terminal Block
Proprietary
Signal Name
Standard
Signal Name
Function
OP1b TO b (1) Door opener 1
OP1a TO a (1) Door opener 1 com
Path_1b b (1) Doorphone 1 transmit
Path_1a a (1) Doorphone 1 receive
Call_1b RT b (1) Doorphone 1 call button
Call_1a RT a (1) Doorphone 1 call button com
DC1b TS b (1) Doorphone control 1
DC1a TS a (1) Doorphone control 1 com
OP2b TO b (2) Door opener 2
OP2a TO a (2) Door opener 2 com
Path_2b b (2) Doorphone 2 transmit
Path_2a a (2) Doorphone 2 receive
Call_2b RT b (2) Doorphone 2 call button
Call_2a RT a (2) Doorphone 2 call button com
DC2b TS b (2) Doorphone control 2
DC2a TS a (2) Doorphone control 2 com
Signal Name Function
SENS 1a Sensor Input 1
SENS 1b com 1
SENS 2a Sensor Input 2
SENS 2b com 2
SENS 3a Sensor Input 3
SENS 3b com 3
SENS 4a Sensor Input 4
SENS 4b com 4
1 8 9 16
OP1b
OP1a
Path_1b
Path_1a
Call_1b
Call_1a
DC1b
DC1a
OP2b
OP2a
Path_2b
Path_2a
Call_2b
Call_2a
DC2b
DC2a
1
8
SENS 1a
SENS 1b
SENS 2a
SENS 2b
SENS 3a
SENS 3b
SENS 4a
SENS 4b
