2.8 Connection of Doorphones, Door Openers, External Sensors, and External Relays
Installation Manual 127
Connection of Door Openers and German Type Doorphones to DPH2
Card

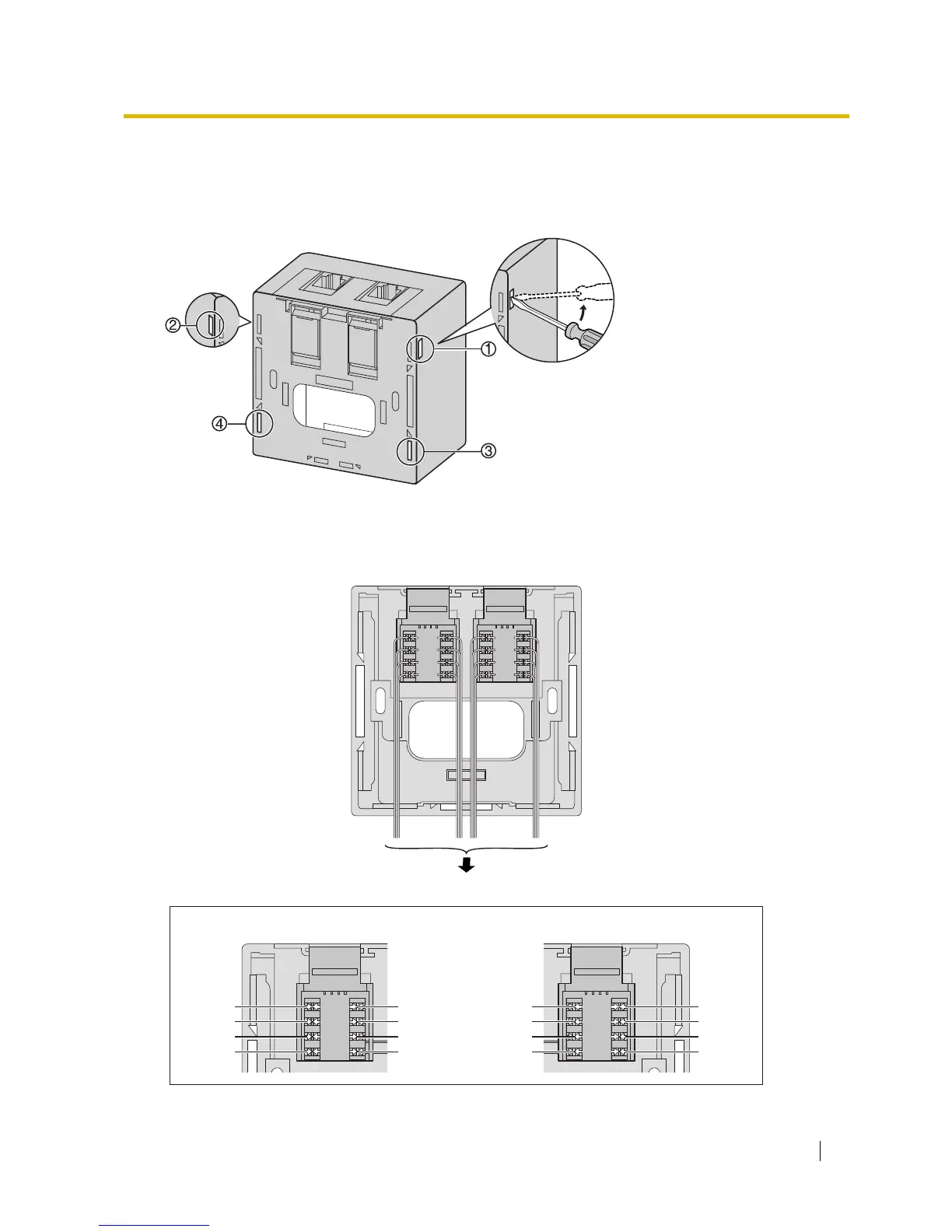

1. Unlatch the cover of the terminal box by inserting a flathead screwdriver into the openings and levering
the cover open. Follow the order indicated by the numbers 1 to 4.
2. Connect the wires of door openers and doorphones to the terminal box.
For details about pin assignments for the DPH2 card, refer to "2.5.2 DPH2 Card (KX-TDA3162)".
Terminal Box
(included with the card)
Path_1b
OP1b
Call_1a
DC1aOP1a
DC1b
Path_1a
Call_1b Path_2b
OP2a
OP2b
Call_2a
DC2a
DC2b
Path_2a
Call_2b
Pin Assignments for Terminal Box
To doorphones/door openers
To Next Page
