2.8 Connection of Doorphones, Door Openers, External Sensors, and External Relays
Installation Manual 131
Connection of External Sensors and External Relays to DPH2 Card
Use 8-pin and 10-pin terminal block (included with the card) for connection.

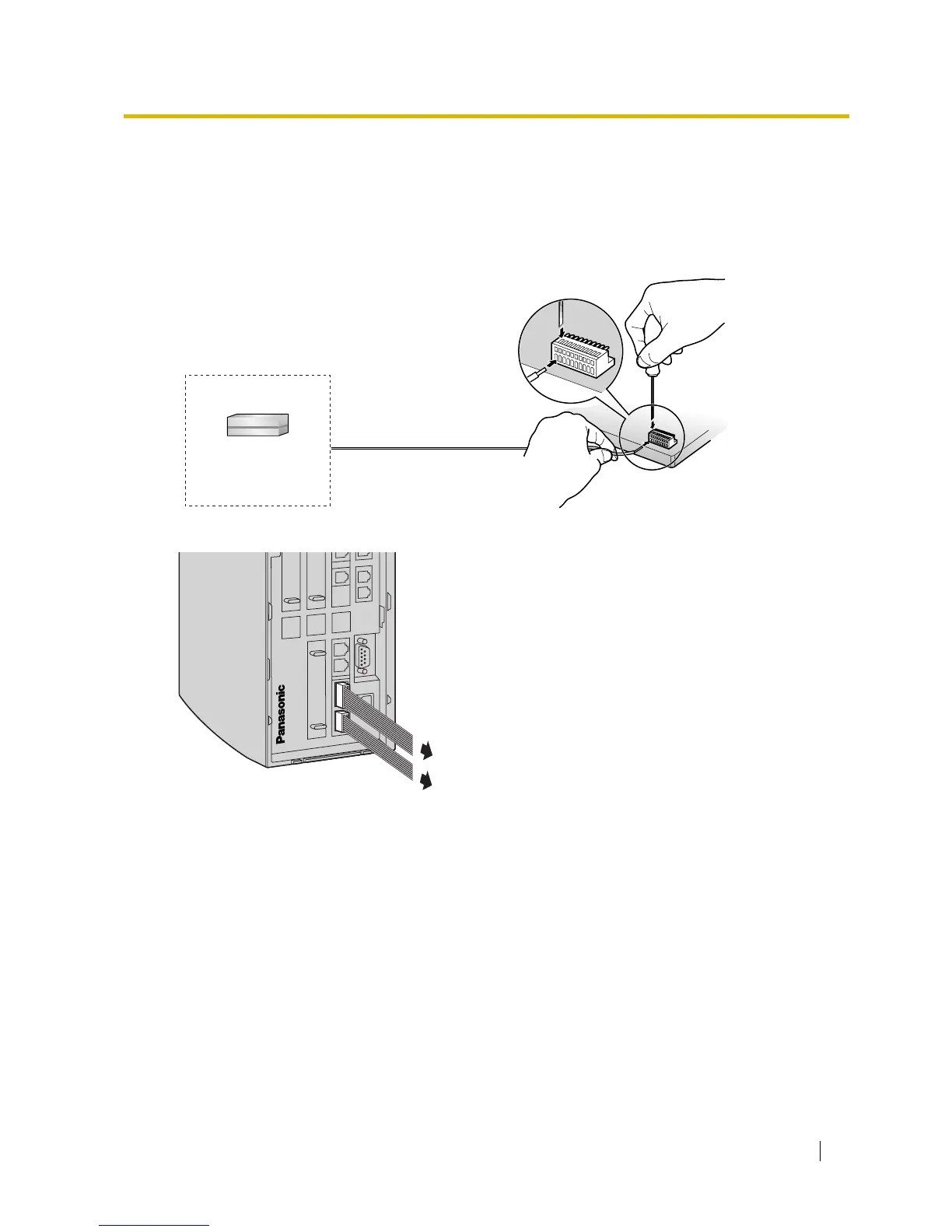

1. While pressing down on the hole at the top of the terminal block using a screwdriver, insert the wire into
the side hole as shown below. Repeat this procedure for other external sensors and external relays.
Refer to "2.5.2 DPH2 Card (KX-TDA3162)" for pin assignments.
2. Attach the terminal block to the connector of the DPH2 card in the Hybrid IP-PBX.
External Sensor/
External Relay Device
To external sensors
To external relays
