Panasonic KX-TDA15

2.9 Connection of Peripherals
Installation Manual 133
Pager
Only 1 paging device (user-supplied) can be connected to the Hybrid IP-PBX.
CAUTION
An External Paging Jack is an SELV port and should only be connected to an approved SELV device.
PC/Printer (via RS-232C)
The Hybrid IP-PBX is equipped with an RS-232C interface. This interface provides communication between
the Hybrid IP-PBX and the user-supplied devices such as PC or line printers. The RS-232C port is used for
system programming, SMDR, diagnostics and external system database storage (save/load) functions.
Note
Use an RS-232C cross cable for connection between the Hybrid IP-PBX and PC.

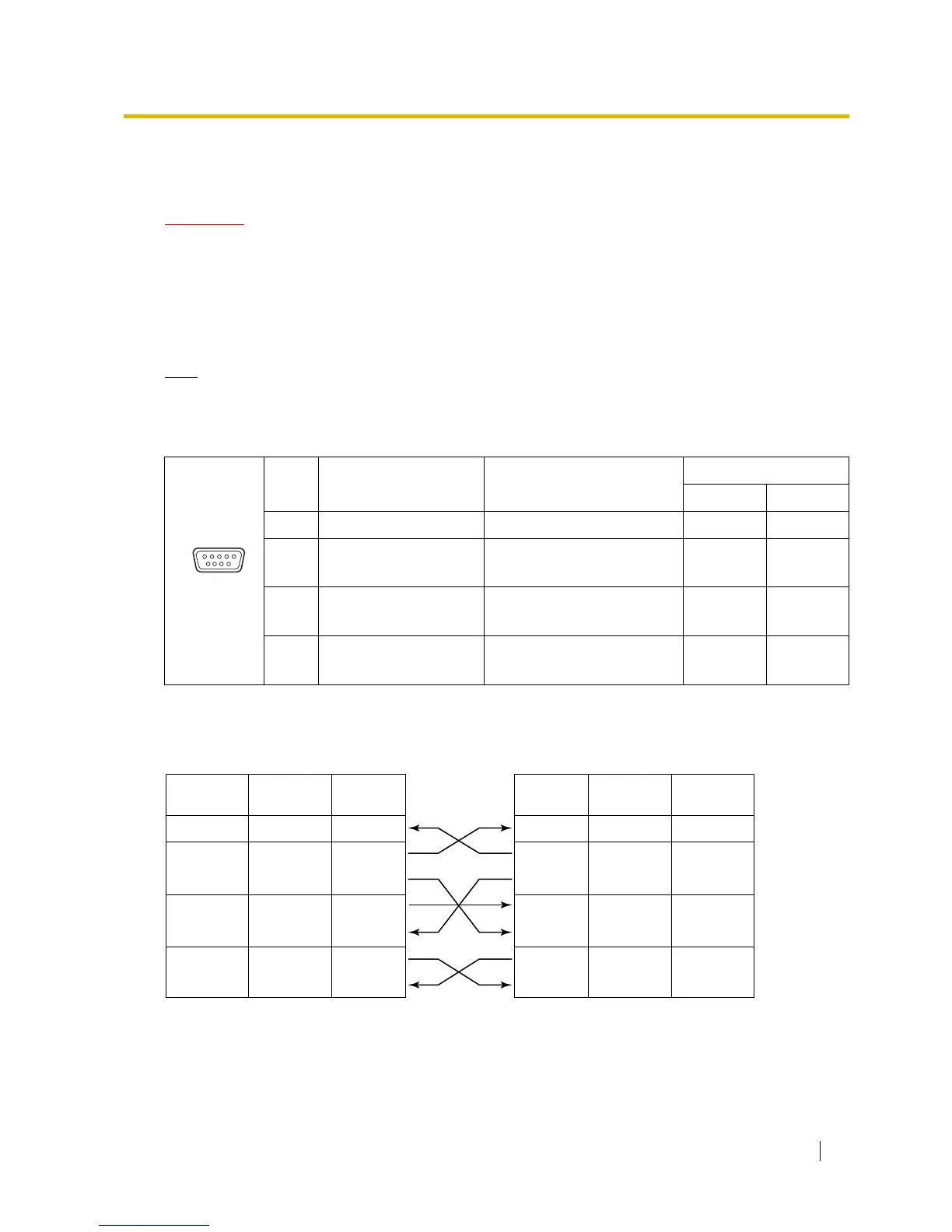

Pin Assignments
Connection Charts
For connecting a printer/PC with a 9-pin RS-232C connector
No. Signal Name Function
Circuit Type
EIA CCITT
2 RD (RXD) Receive Data BB 104
3
4
SD (TXD)
ER (DTR)
Transmit Data
Data Terminal Ready
BA
CD
103
108.2
5
6
SG
DR (DSR)
Signal Ground
Data Set Ready
AB
CC
102
107
7
8
RS (RTS)
CS (CTS)
Request To Send
Clear To Send
CA
CB
105
106
6 9
1 5
Hybrid IP-PBX (9-pin) Printer/PC (9-pin)
Circuit Type
(EIA)
Signal
Name
Pin No. Pin No.
Signal
Name
Circuit Type
(EIA)
BB RD (RXD) 2
BA SD (TXD) 3
CD ER (DTR) 4
AB SG 5
CC DR (DSR) 6
CA RS (RTS) 7
CB CS (CTS) 8
2 RD (RXD) BB
3 SD (TXD) BA
4 ER (DTR) CD
5SG AB
6 DR (DSR) CC
7 RS (RTS) CA
8 CS (CTS) CB
