2.2 Installation of the Hybrid IP-PBX
46 Installation Manual

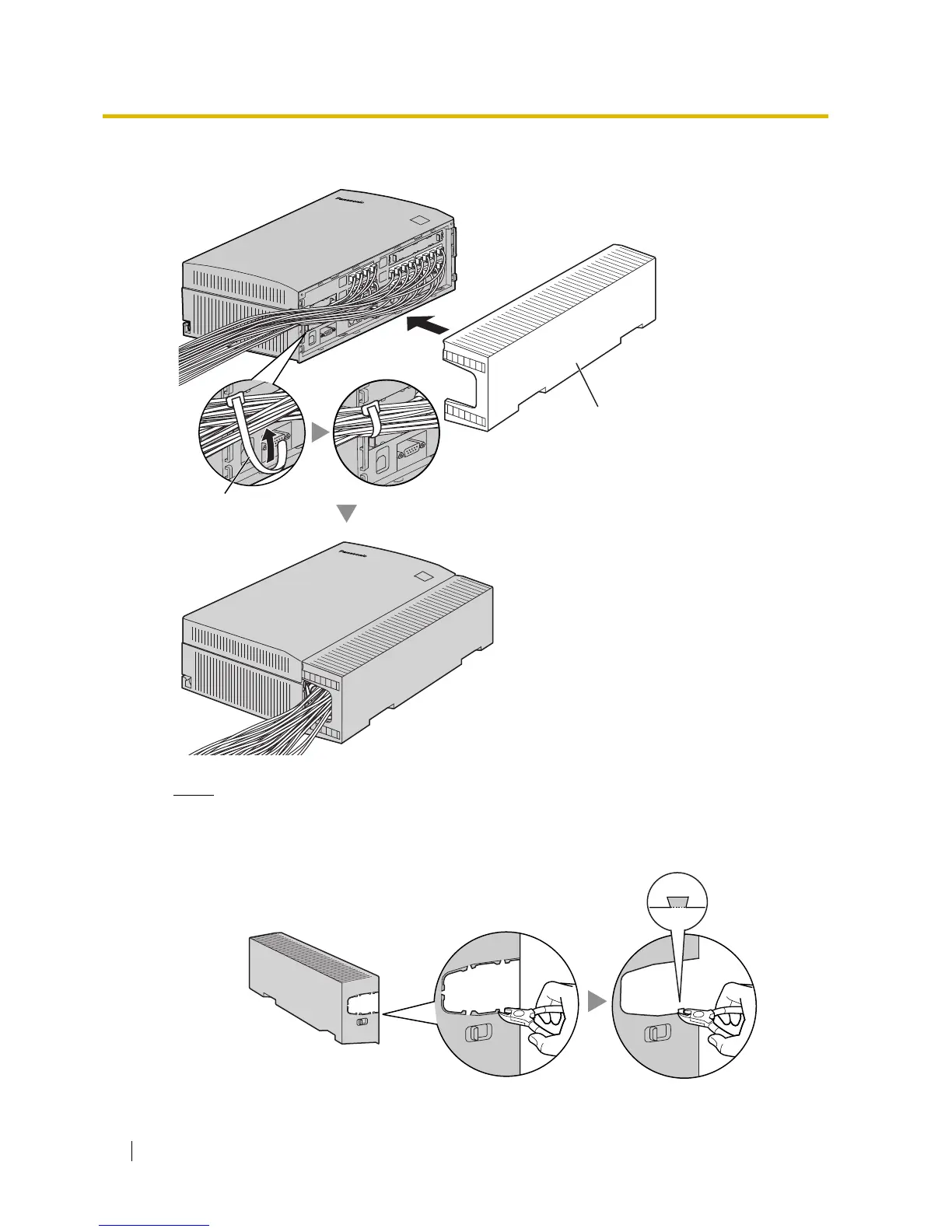

5. Bind all the connected cables together using the main strap, and then close the cable cover. For
how to close the cable cover, refer to "2.2.3 Opening/Closing the Covers".
Notes
• For safety reasons, do not stretch, bend, or pinch the cables.
• If you prefer, you can cut the other side of the cable cover and run the cables through that
opening. For safety reasons, smooth the cut edges.
Main Strap
Cable Cover
To Next Page
