Panasonic KX-TDA15 - Page 92

2.6 Connection of Extensions
92 Installation Manual

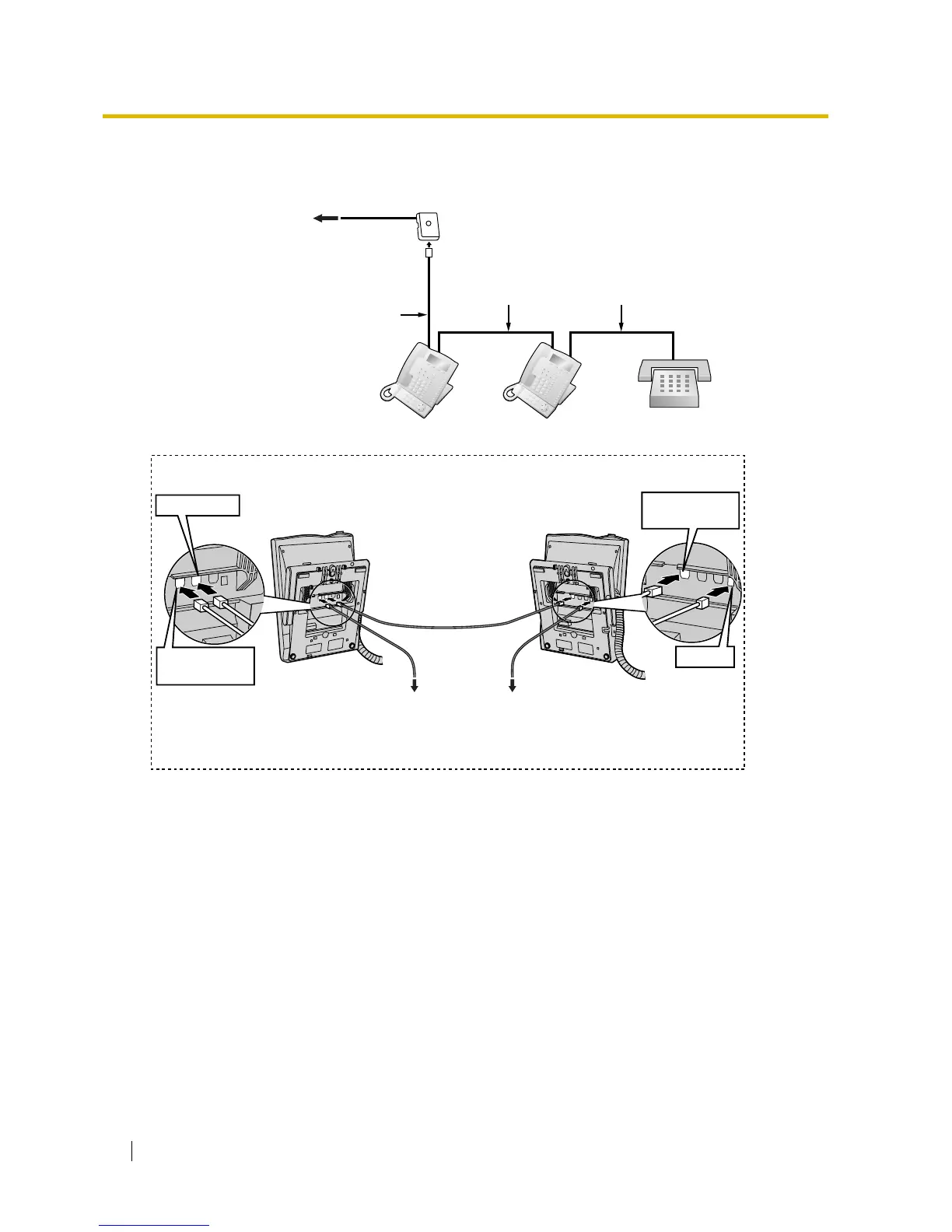

Using an EXtra Device Port
Connecting to a Slave DPT
SLTMaster DPT Slave DPT
4-conductor wiring cord
Connect pins "T", "R",
"D1" and "D2".
2-conductor wiring cord
Connect pins "T" and "R".
4-conductor wiring cord
Connect pins "T", "R",
"D1" and "D2".
Slave DPTMaster DPT
To SLT
TO MAIN UNIT
/ PABX
TO TEL
TO DIGITAL
TO MAIN UNIT
/ PABX
Cable Maximum Distance
ø 0.4 mm: 30 m
ø 0.5 mm: 50 m
ø 0.6 mm: 60 m
CAT 5: 50 m
Back View of DPTs
To a Super Hybrid Port
To a Super Hybrid Port
