Playing Back Pictures on a TV Screen
Pictures recorded with this unit can be played back on a TV screen.
Confirm the terminals on your TV and use a cable compatible with the terminals.
Image quality may vary with the connected terminals.
1 High quality
2 HDMI
socket
3 Video socket

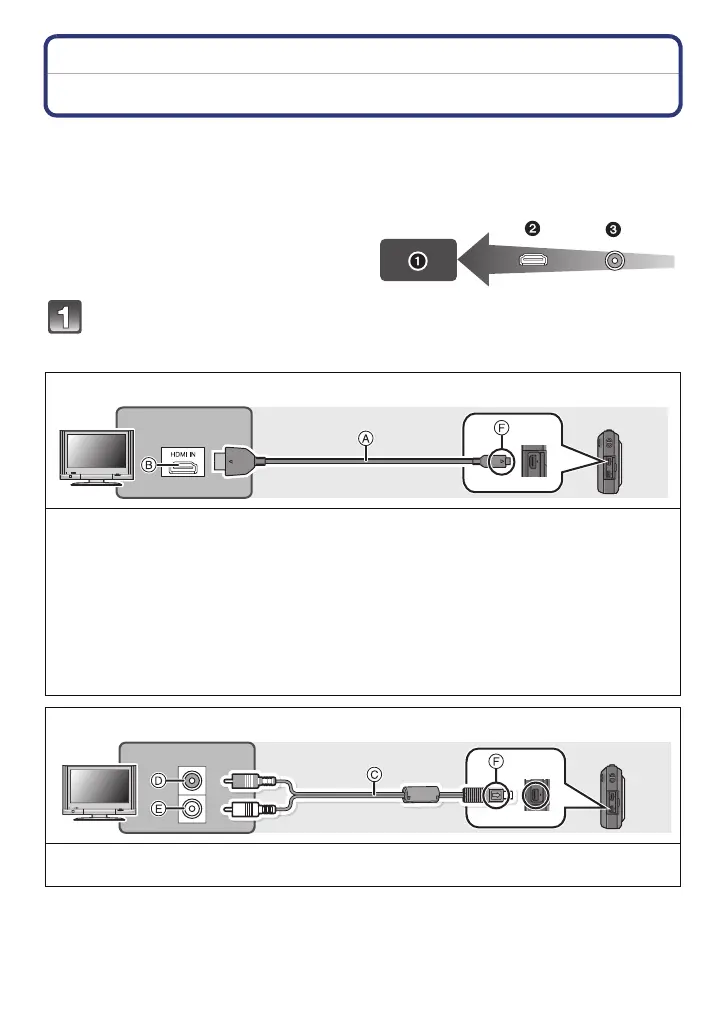

Connect the camera and a TV.
•
Check the direction of the terminals and plug in/out straight holding onto the plug. (It may result
in malfunction by the deforming of the terminal if it is plugged in obliquely or in wrong direction.)
A HDMI micro cable (optional)
B HDMI socket
C AV cable (optional)
D Yellow: to the video input socket
E White: to the audio input socket
F Align the marks, and insert.
Preparations: Turn this unit and the TV off.
To connect with an HDMI micro cable (optional)
•
Always use a genuine Panasonic HDMI micro cable (RP-CHEU15; optional).
Part numbers: RP-CHEU15 (1.5 m) (5 feet)
• Pictures are not displayed on the LCD monitor.
– When [VIERA Link] is [Off]:
Touch icons for operation are displayed.
– When [VIERA Link] is [On]:
Touch icons for operation are not displayed.
• Some playback functions are restricted.
• [Playback] Mode menu and [Setup] menu cannot be used.
• [My Photo Album]/[Beauty Retouch]/[Art Retouch]/[Image Stamp] cannot be used.
• For more details about VIERA Link (HDMI) playback, refer to P146.
To connect with an AV cable (optional)
•
Always use a genuine Panasonic AV cable (DMW-AVC1; optional).
• Check the [TV Aspect]. (P46)
