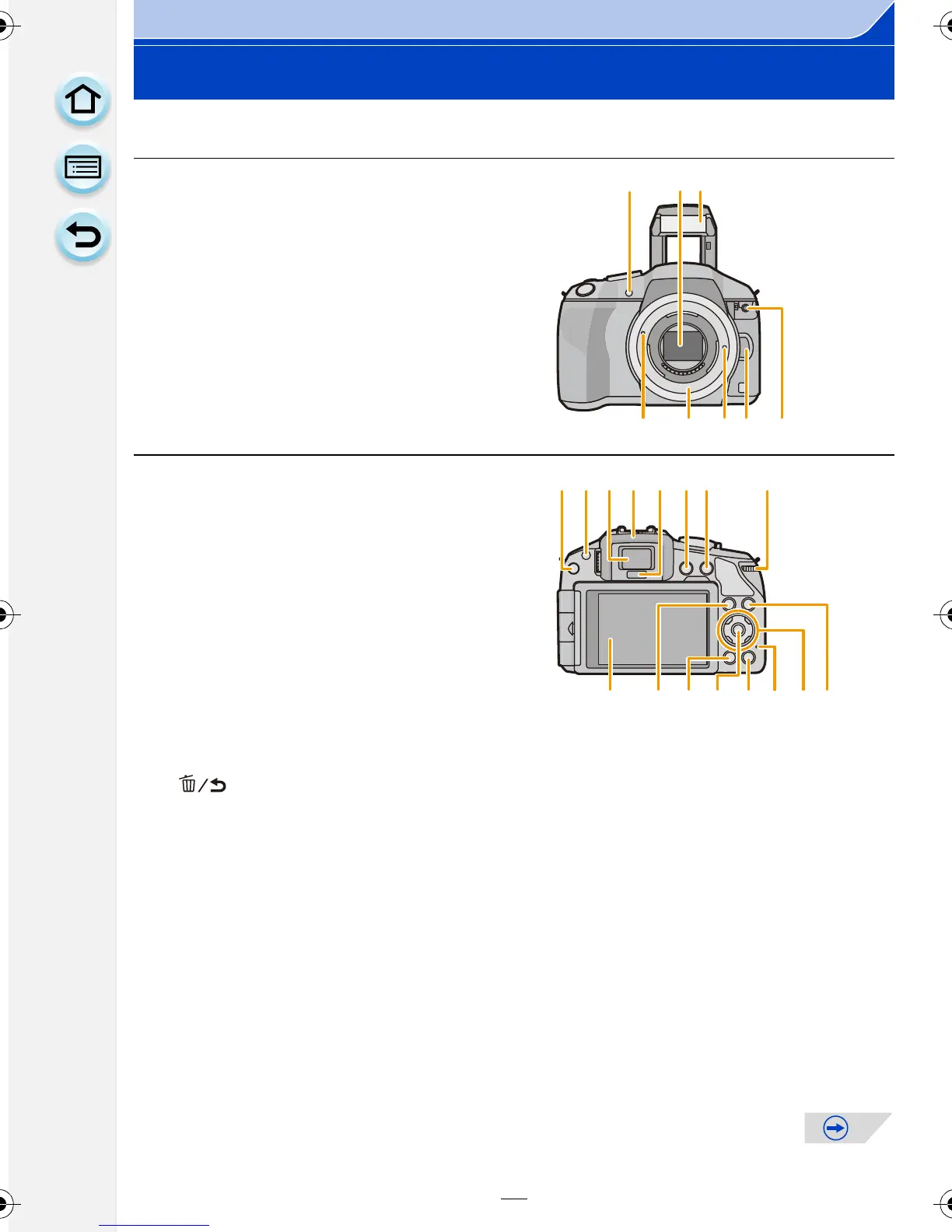

Names and Functions of Components
∫ Camera body
1 Self-timer indicator (P184)/
AF Assist Lamp (P170)
2 Sensor
3 Flash (P139)
4 Lens fitting mark (P23)
5 Mount
6 Lens lock pin
7 Lens release button (P24)
8 [MIC] socket (P312)
9 [LVF] button (P66)/[Fn5] button (P52)
10 Flash open button (P139)
•
The flash opens, and recording with the flash
becomes possible.
11 Viewfinder (P66)
12 Eye Cup (P348)
13 Eye sensor (P66)
14 [Q.MENU] button (P48)/[Fn1] button (P52)
15 [AF/AE LOCK] button (P176)/
[Fn2] button (P52)
16 Rear dial (P19)
17 Touch screen/monitor (P17)
18 [(] (Playback) button (P76)
19 [ ] (Delete/Cancel) button (P85)/[Fn3] button (P52)
20 [MENU/SET] button (P19, 43)
21 [Wi-Fi] button (P245)/[Fn4] button (P52)
22 Wi-Fi
®
connection lamp (P245)
23 Cursor buttons (P19)
3/ISO button (P154)
1/WB (White Balance) (P156)
2/AF Mode button (P161)
4/[Drive Mode] button
This button in picture record mode will allow the user to select between the
following options.
Single (P68)/Burst (P179)/Auto bracket (P182)/Self-timer (P184)
24 [DISP.] button (P72, 83)
•
Each time this is pressed, the display on the monitor is switched.
