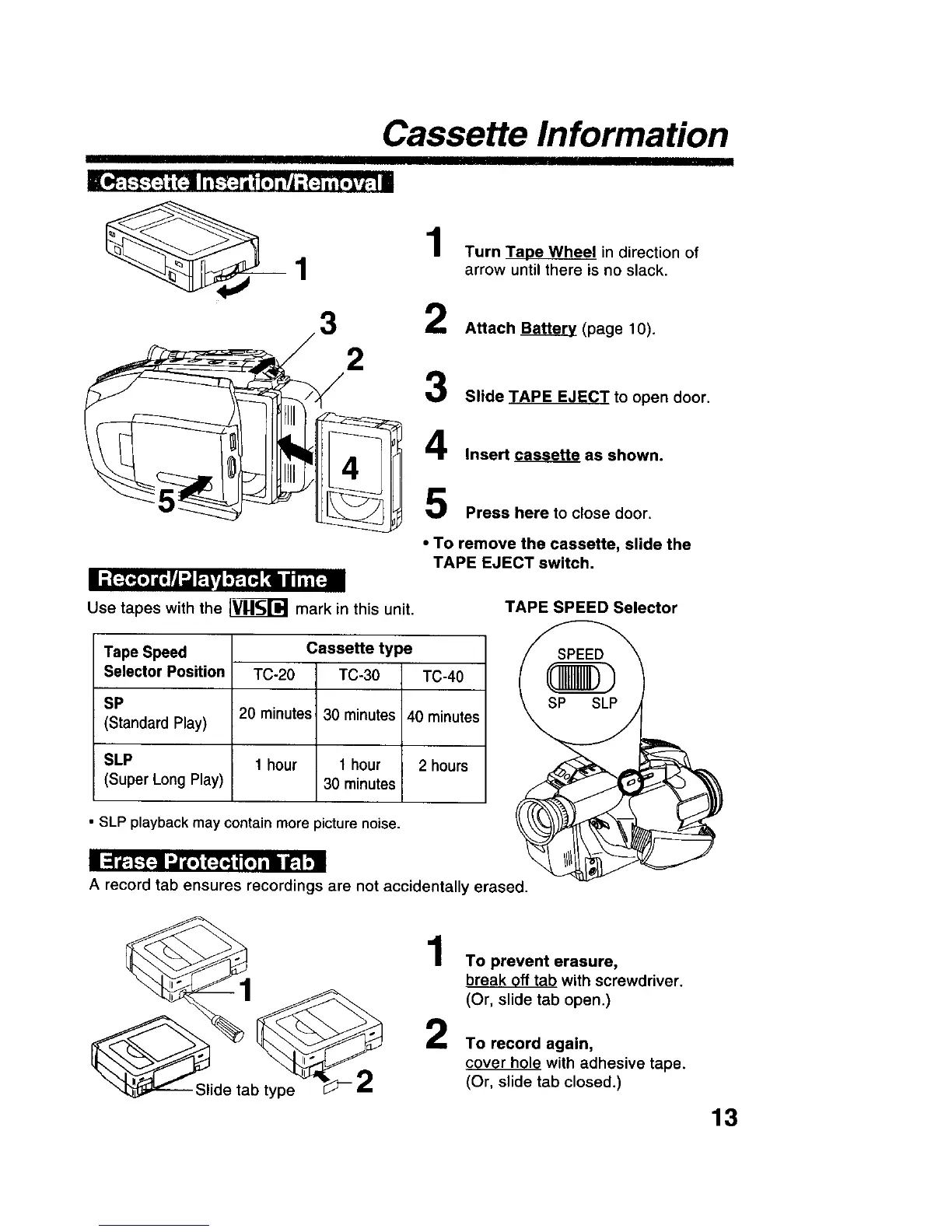

Cassette Information
3 2
2
3
4
5
Turn Tape Wheel in direction of
arrow until there is no slack.
Attach Battery (page 10).
Slide TAPE EJECT to open door.
Insert cassette as shown.
Press here to close door.
II =[ =_m] i[,,rA"J_ ,p.[,.] .111Nim=[:.am
Use tapes with the _ mark in this unit.
• To remove the cassette, slide the
TAPE EJECT switch.
TAPE SPEED Selector
Tape Speed
Selector Position
Cassette type
TC-20 TC-30 TC-40
SP
20 minutes 30 minutes 40 minutes
(Standard Play)
SLP 1 hour 1 hour 2 hours
(Super Long Play) 30 minutes
• SLP playback may contain more picture noise.
i ;I P.[---[:]1 t,r_ iF_r;J_[,] li i_ ,!
A record tab ensures recordings are not accidentally erased.
_ide tab type _ 2 2
To prevent erasure,
break off tab with screwdriver.
(Or, slide tab open.)
To record again,
cover hole with adhesive tape.
(Or, slide tab closed.)
13
