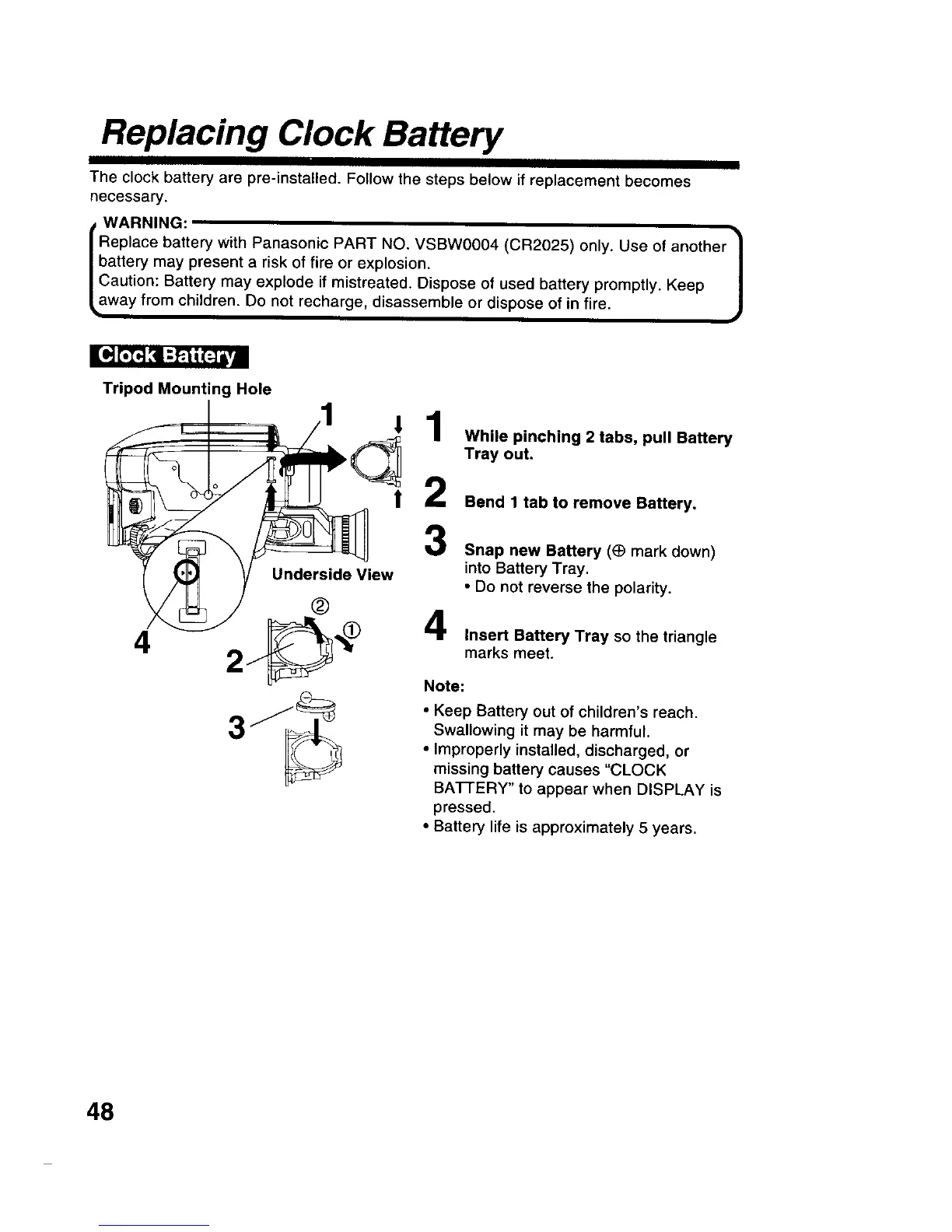

Replacing Clock Battery
The clock battery are pre-installed. Follow the steps below if replacement becomes
necessary.
la WARNING:
Replace battery with Panasonic PART NO. VSBW0004 (CR2025) only. Use of another _
battery may present a risk of fire or explosion.
J
Caution: Battery may explode if mistreated. Dispose of used battery promptly. Keep
way from children. Do not recharge, disassemble or dispose of in fire.
Tripod Mounting Hole
Underside View
®
While pinching 2 tabs, pull Battery
Tray out.
Bend 1 tab to remove Battery.
Snap new Battery (_ mark down)
into Battery Tray.
• Do not reverse the polarity.
,4
_'_1_ =I' Insert Battery Tray so the triangle
4 2 marks meet.
Note:
• Keep Battery out of children's reach.
Swallowing it may be harmful.
• Improperly installed, discharged, or
missing battery causes "CLOCK
BATTERY" to appear when DISPLAY is
pressed.
• Battery life is approximately 5 years.
48
