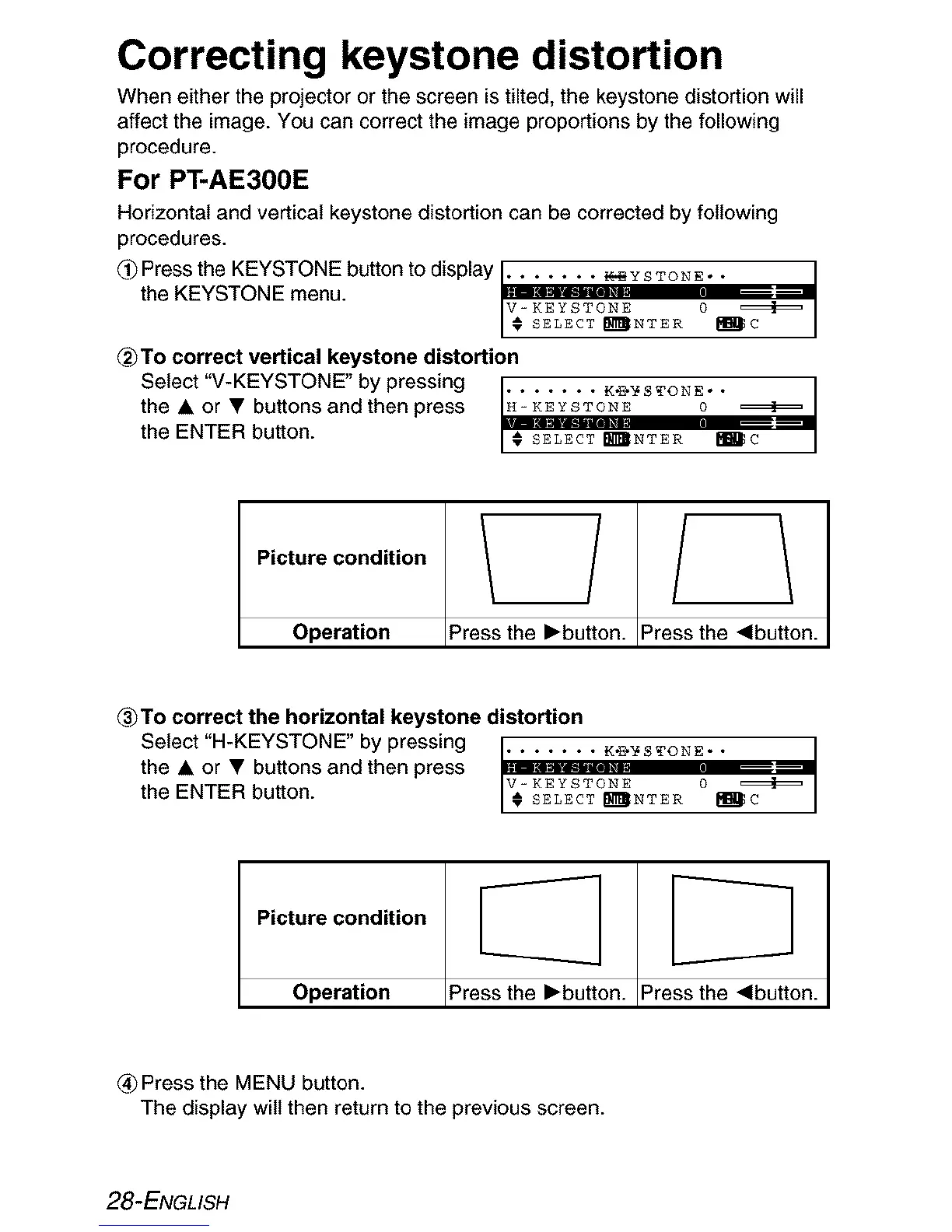

Correcting keystone distortion
When either the projector or the screen is tilted, the keystone distortion will
affect the image. You can correct the image proportions by the following
procedure.
For PT-AE300E
Horizontal and vertical keystone distortion can be corrected by following
procedures.
_ Press the KEYSTONE button to display I....... _Z'_YSTONE- •
the KEYSTONE menu.
I
V-KEYSTONE 0
[ € SELECT BNTER BC
_)To correct vertical keystone distortion
Select "V-KEYSTONE" by pressing ....... K_S'rONE - •
the • or • buttons and then press H- KEYSTONE 0 :_
the ENTER button. € SELECT_NTER _ C
Picture condition
Operation
Press the I_button. Press the _lbutton.
_To correct the horizontal keystone distortion
Select "H-KEYSTONE" by pressing ....... K_S'rONE- •
the • or • buttons and then press € SELECT_NTER _ Cthe ENTER button, v= KEYSTONE 0 ====_==_
____-----------
Picture condition
Operation Press the I_button. Press the _lbutton.
Press the MENU button.
The display wilt then return to the previous screen.
28-ENGLISH
