Panasonic PT-AE200E

Appendix

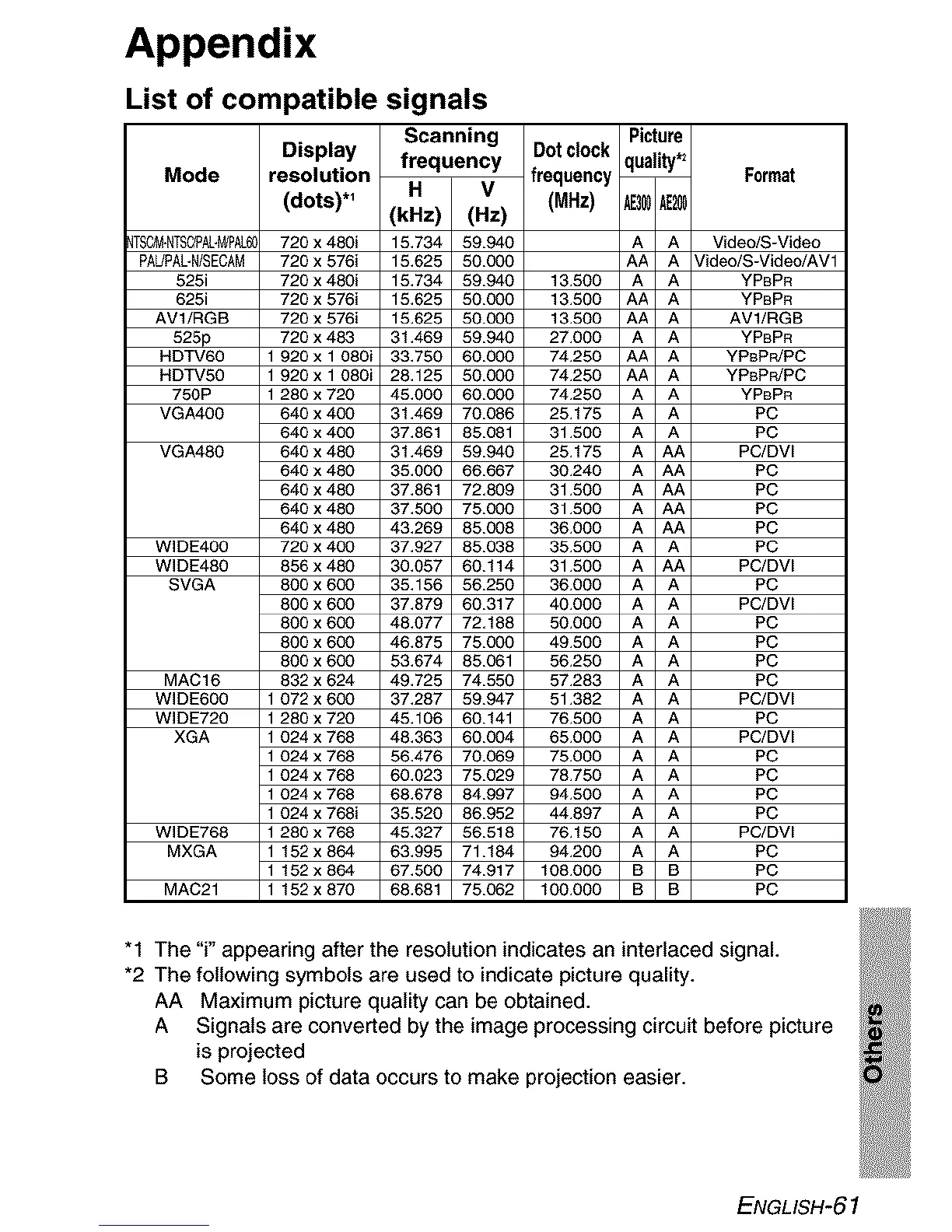

List of compatible signals
Scanning Picture
Display frequency Dotclock quali_/n
Mode resolution frequency Format
(dots)*' H V (MHz) AE300AE_
(kHz) (Hz)
_TS0_.NTSO_AL.MJPN_6C720 x 4801 15.734 59.940 A A Video/S-Video
PAUPAUN/SECAM 720 x 5761 15.625 50.000 AA A Video/S-Video/AV1
625i 720 x 4801 15.734 59.940 13.500 A A YPBPR
625i 720 X 5761 15.625 50.000 13.500 AA A YPBPR
AV1/RGB 720x5761 15.625 50.000 13.500 AA A AV1/RGB
526p 720 x 483 31.469 59.940 27.000 A A YPBPR
HDTV6O 1 920 x 1 O8Oi 33.750 60.000 74.250 AA A YPsPR/PC
HDTV6O 1 920 x 1 O8Oi 28.125 50.000 74.250 AA A YPsPR/PC
750P 1 280 x 720 45.000 60.000 74.250 A A YPBPR
VGA400 640 x 400 31.469 70.086 25.175 A A PC
640 x 400 37.861 85.081 31.500 A A PC
VGA480 640 x 480 31.469 59.940 25.175 A AA PC/DVI
640 x 480 35.000 66.667 30.240 A AA PC
640 x 480 37.861 72,809 31.500 A AA PC
640 x 480 37.500 75.000 31.500 A AA PC
640 x 480 43.269 85.008 36.000 A AA PC
WIDE400 720 x 400 37.927 85.038 35.500 A A PC
WIDE480 856 x 480 30.067 60.114 31.500 A AA PC/DVI
SVGA 800 x 600 35.166 56.250 36.000 A A PC
800 x 600 37.879 60.817 40.000 A A PC/DVI
800 x 600 48.077 72,188 50.000 A A PC
800 x 600 46.875 75.000 49.500 A A PC
800 x 600 53.674 85.061 56.250 A A PC
MAC16 832 x 624 49.725 74.550 57.283 A A PC
WIDE600 1 072 x 600 37.287 59.947 51.382 A A PC/DVI
WIDE720 1 280x720 45.106 60.141 76.500 A A PC
XGA 1 024 x 768 48.363 60.004 65.000 A A PC/DVI
1 024 x 768 56.476 70.069 75.000 A A PC
1 024 x 768 60.023 75.029 78.750 A A PC
1 024 x 768 68.678 84.997 94.500 A A PC
1 024 x 7681 35.520 86.952 44.897 A A PC
WIDE768 1 280 x 768 45.327 56.518 76.150 A A PC/DVI
MXGA 1 152 x 864 63.995 71.184 94.200 A A PC
1 152x864 67.500 74.917 108.000 B B PC
MAC21 1 152 x 870 68.681 75.062 100.000 B B PC
"1 The "i" appearing after the resolution indicates an interlaced signal.
*2 The following symbols are used to indicate picture quality.
AA Maximum picture quatity can be obtained.
A Signals are converted by the image processing circuit before picture
is projected
B Some loss of data occurs to make projection easier.
ENGLISH-61
