Panasonic SA-PM45E - Page 14

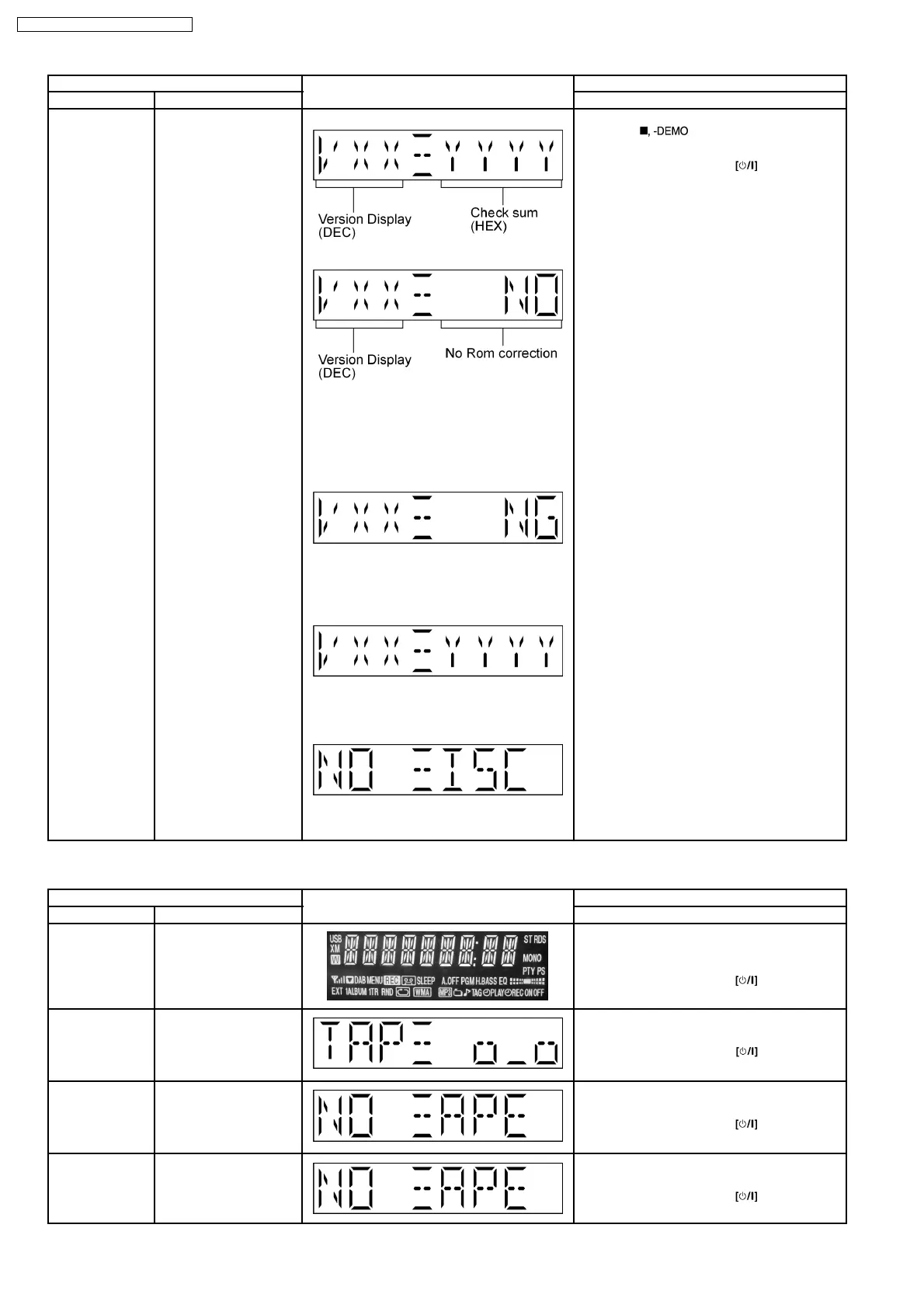

Item FL Display Key Operation
Mode Name Description Front Key
Doctor Mode To enter into Doctor
Mode for checking of
various items and
displaying EEPROM and
firmware version.
Note: The micro-
processor version as
shown is an example. It
will be revise when there
is an updates.
FL Display
sequenceDisplay 1 → 2
(Display 1)
Checksum : (Condition 1)
(a) If there is NO EEPROM header string
OR
(b) If there is no EEPROM ( no data is
received by micro-processor) [NO] is
displayed.
Checksum : (Condition 2)
If the version of the EEPROM does not
match or not working properly [NG] is
display.
Checksum : (Condition 3)
If the EEPROM version matches, checksum
[YYYY] is displayed.
(Display 2)
The Check Sum of EEPROM and firmware
version will be display for 2 sec.
In any mode:
1. Press [
] button on main unit follow
by [4] and [7] on remote control.
To exit Doctor Mode, press
button on
main unit or remote control.
8.2.2. Service Mode Table 2
Item FL Display Key Operation
Mode Name Description Front Key
FL Display Test To check the FL
segments display (All
segments will light up)
In doctor mode:
1. Press [DIMMER] button on remote control.
To cancel, press [0] button on remote control.
To exit Doctor Mode, press
button on
main unit or remote control.
CD to Tape
Recording Test
Mode
To Inspect the recording
process from CD to
TAPE for the unit.
(For more information,
refer to section 8.2.3)
In doctor mode:
1. Press [4] button on remote control.
To exit Doctor Mode, press
button on
main unit or remote control.
Tape Recording
and Playing
To Inspect the Tape
recording and playing is
process for unit.
(For more information,
refer to section 8.2.4)
In doctor mode:
1. Press [5] button on remote control.
To exit Doctor Mode, press
button on
main unit or remote control.
CD Open and
Tape Eject Test
Mode
To check on the CD
Open and Tape Eject
function.
In doctor mode:
1. Press [6] button on remote control.
To exit Doctor Mode, press
button on
main unit or remote control.
14
SA-PM45E / SA-PM45EG / SA-PM45EE
