Panasonic SA-PM45E - Disassembly of Traverse Unit, Driving Gear, and Cam Gear

9.17. Disassembly of Traverse Unit,
Driving Gear, and Cam Gear

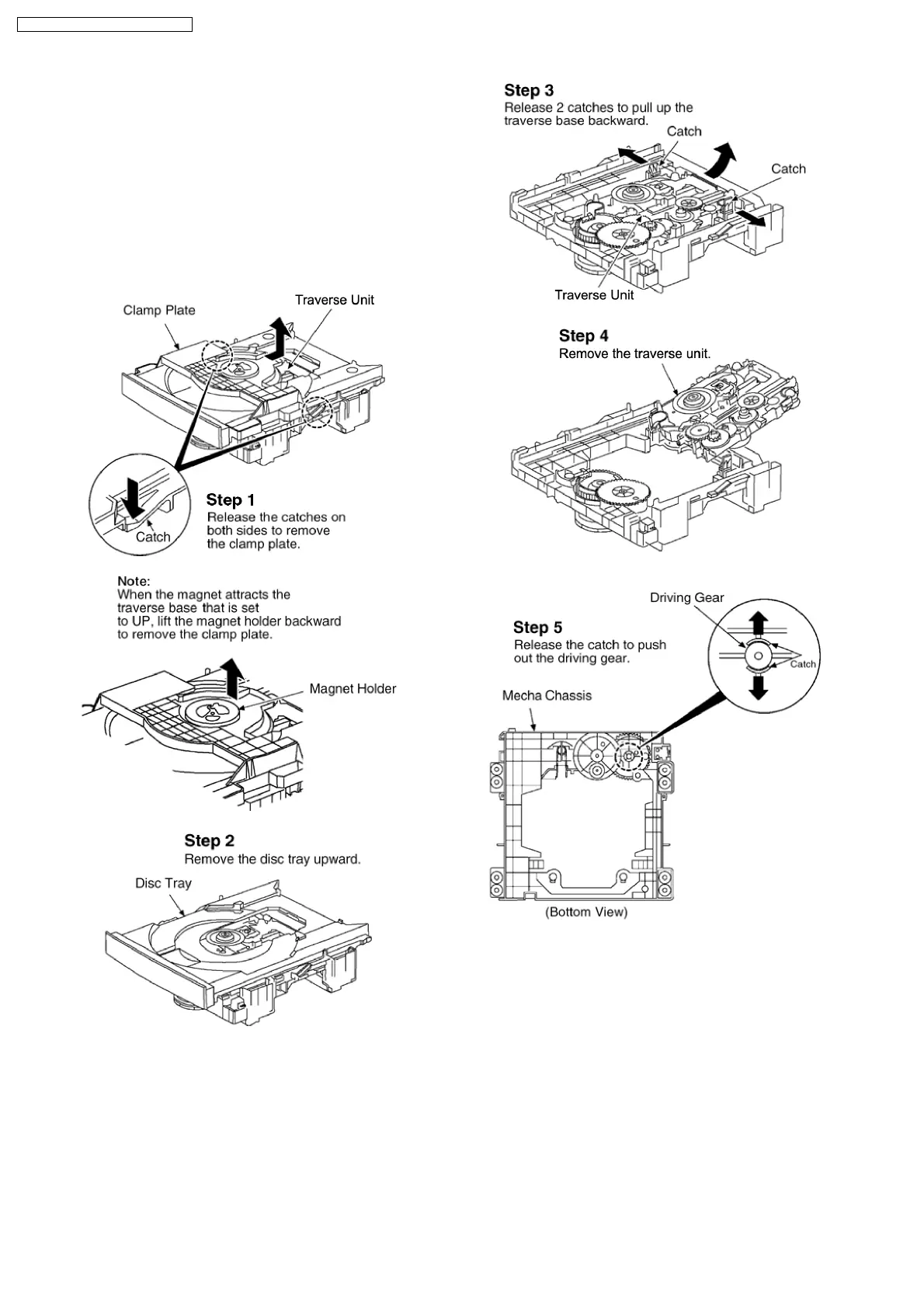

9.17.1. Disassembly of the Traverse Unit
· Follow the (Step 1) - (Step 6) of Item 9.4.
· Follow the (Step 1) - (Step 3) of Item 9.5.
· Follow the (Step 1) - (Step 6) of Item 9.7.
· Follow the (Step 1) - (Step 3) of Item 9.8 .
· Follow the (Step 1) - (Step 3) of Item 9.15.
· Disassembly of gears drive
