Panasonic SA-PM45E - Disassembly of Cassette Lid

Step 1 : Detach connector (CD Open Switch and CN807).
Step 2 : Remove 4 screws .
Step 3 : Lift up & remove the CD Mechanism unit as arrow
shown.
9.16. Disassembly of Cassette Lid
· Follow the (Step 1) - (Step 6) of Item 9.4.
· Follow the (Step 1) - (Step 3) of Item 9.5.
· Follow the (Step 1) - (step 6) of Item 9.6.

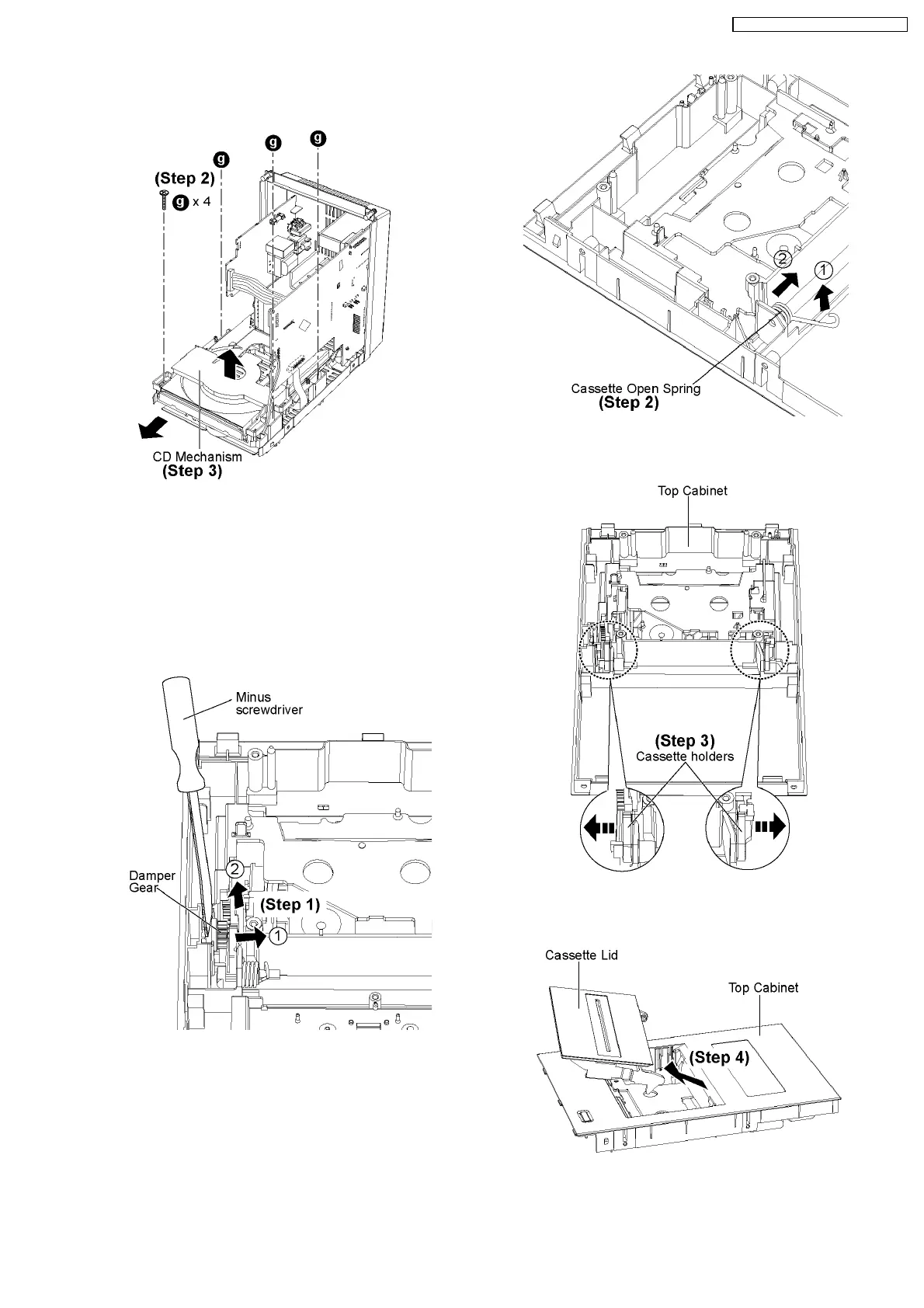

Step 1: Using screwdriver to remove Damper gear
as arrow shown in order.
Step 2: Remove the Cassette Open Spring as
arrow shown in order.
Step 3: Pull the sides Cassette holders to the
direction of the arrows shown.
Step 4: Remove the Cassette Lid as arrows shown.
