Panasonic SA-PM45E - Disassembly of Panel P.C.B, Headphone P.C.B & Music Port P.C.B

Step 6 : Remove USB P.C.B.
9.10. Disassembly of Panel P.C.B,
Headphone P.C.B & Music
Port P.C.B
· Follow the (Step 1) - (Step 6) of Item 9.4.
· Follow the (Step 1) - (Step 3) of Item 9.5.
· Follow the (Step 1) - (Step 6) of Item 9.7.
· Follow the (Step 1) - (Step 3) of Item 9.8.

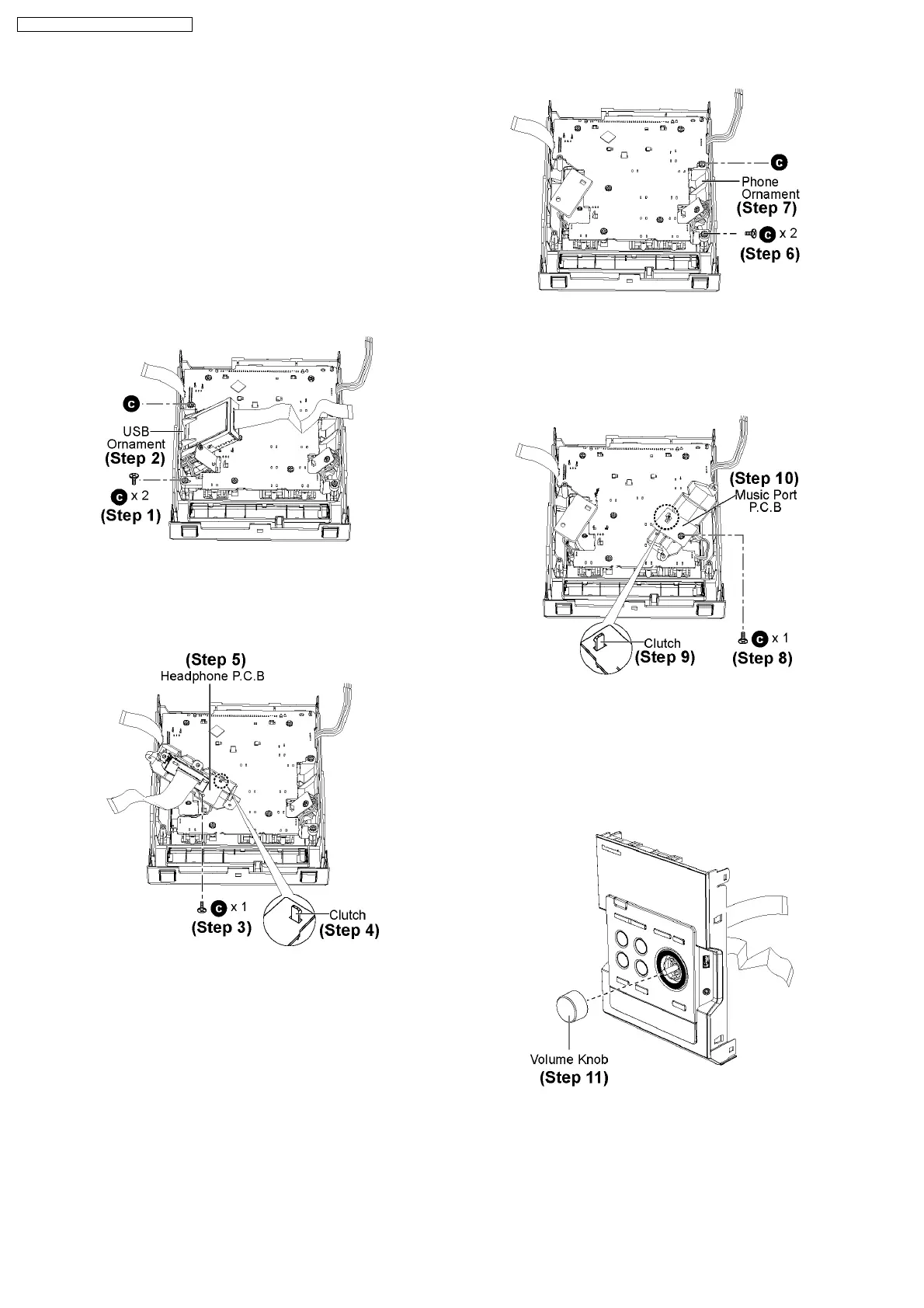

· Disassembly of Headphone P.C.B
Step 1 : Remove 2 screws.
Step 2 : Remove the USB Ornament.
Step 3 : Remove 1 screw.
Step 4 : Release the clutch.
Step 5 : Remove the Headphone P.C.B.
· Disassembly of Music Port P.C.B
Step 6 : Remove 2 screws.
Step 7 : Remove the Phone Ornament.
Step 8 : Remove 1 screw.
Step 9 : Release the clutch.
Step 10 : Remove the Music Port P.C.B.
· Disassembly of Panel P.C.B
Step 11 : Remove the Volume Knob.
28
SA-PM45E / SA-PM45EG / SA-PM45EE
