Panasonic SA-PM45E - Disassembly of Transformer P.C.B; Disassembly of CD Mechanism

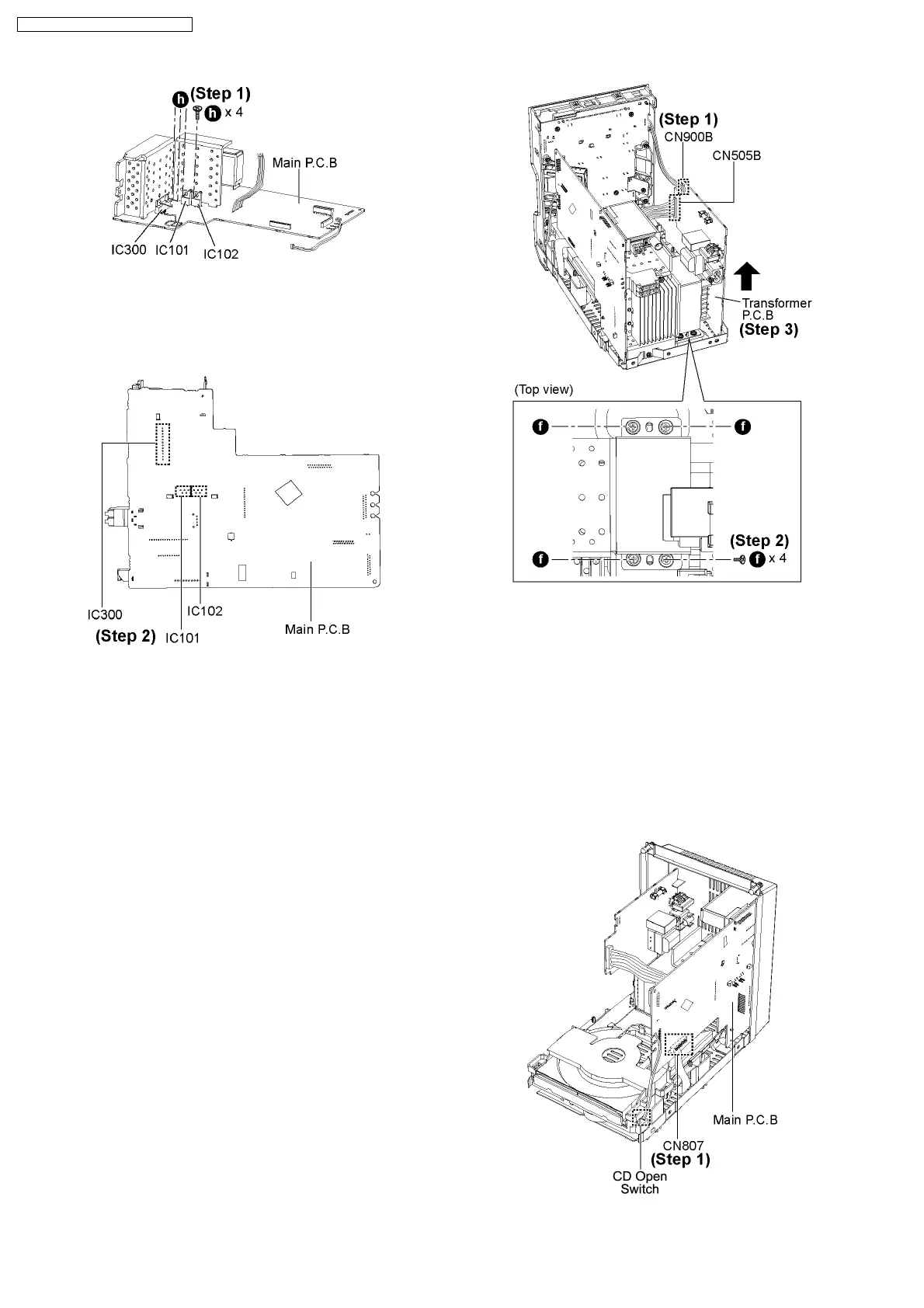

Step 1 : Remove 2 screws (For IC300), remove 1 screw (For
IC101), remove 1 screw (For IC102).
Step 2 : Unsolder the terminal of Power IC (IC300) to replace
the component.
Note : For replacement of USB Regulator IC (IC101) or CD
Regulator (IC102), repeat Step 2.
9.14. Disassembly of Transformer
P.C.B
· Follow the (Step 1) - (Step 6) of Item 9.4.
· Follow the (Step 1) - (Step 3) of Item 9.5.
· Follow the (Step 1) - (Step 2) of Item 9.11.
Step 1 : Detach cable (CN900B and CN505B).
Step 2 : Remove 4 screws.
Step 3 : Remove Transformer P.C.B as arrow shown.
9.15. Disassembly of CD
Mechanism
· Follow the (Step 1) - (Step 6) of Item 9.4.
· Follow the (Step 1) - (Step 3) of Item 9.5.
· Follow the (Step 1) - (Step 6) of Item 9.7.
· Follow the (Step 1) - (Step 3) of Item 9.8.
30
SA-PM45E / SA-PM45EG / SA-PM45EE
