Panasonic SA-PM45E - Handling of Cassette Tape Jam

9.18.3. Disassembly of Deck Mechanism
P.C.B
· Follow the (Step 1) - (Step 6) of Item 9.4.
· Follow the (Step 1) - (Step 3) of Item 9.5.
· Follow the (Step 1) - (Step 6) of Item 9.6.
· Follow the (Step 1) - (Step 4) of Item 9.18.1.

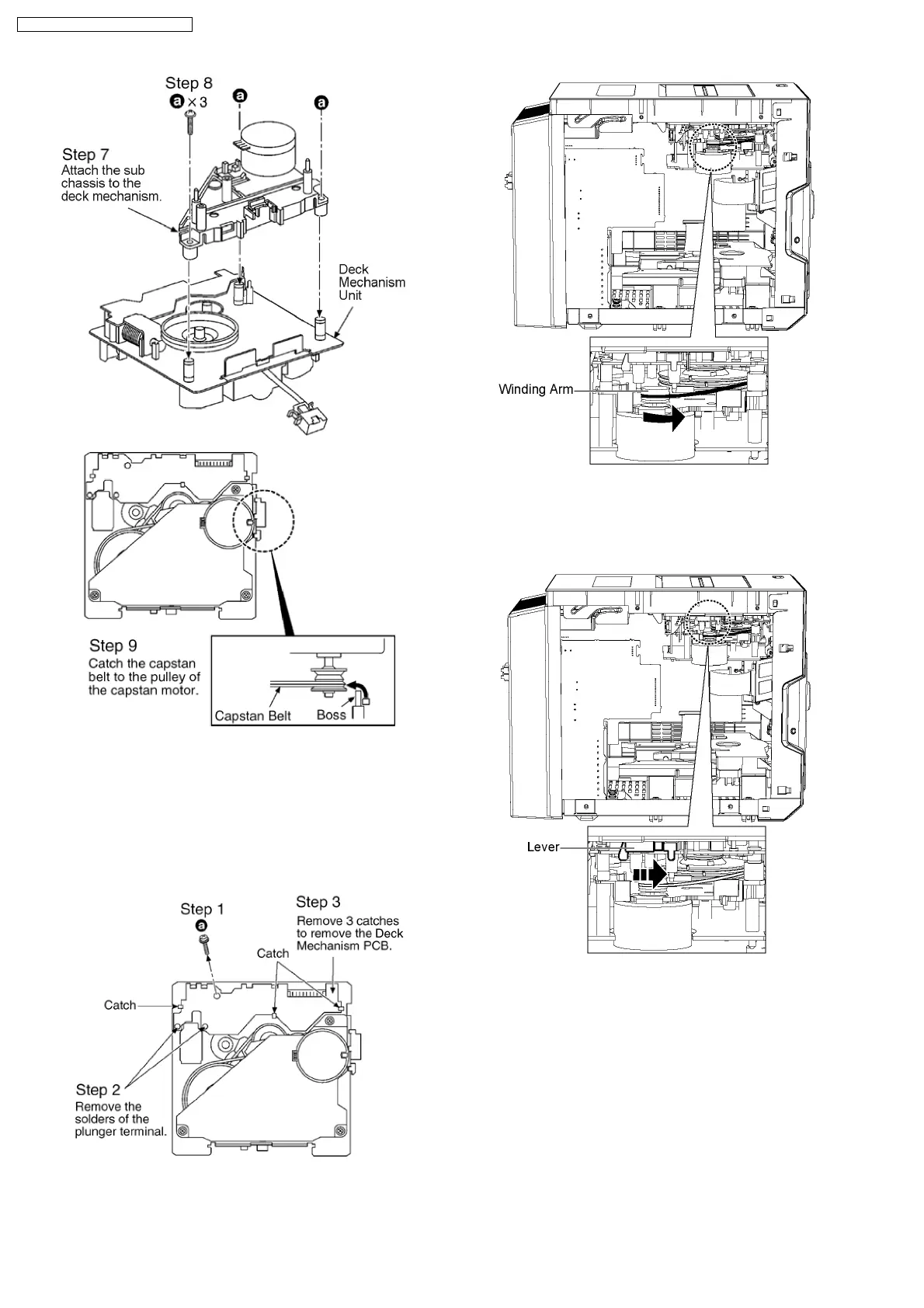

9.19. Handling of cassette tape jam
· Follow the (Step 4) - (Step 6) of Item 9.4.
Step 1 : If the cassette tape cannot eject due to twinning
around capstan or pinch roller during play or record, rotate the
Winding Arm as arrow shown to remove twined tape.
Step 2 : Push the lever as arrow shown to open the cassette lid
and remove the cassette tape.
38
SA-PM45E / SA-PM45EG / SA-PM45EE
