Panasonic SA-PM45PC - Disassembly of Rear Panel; Disassembly of Main P.C.B

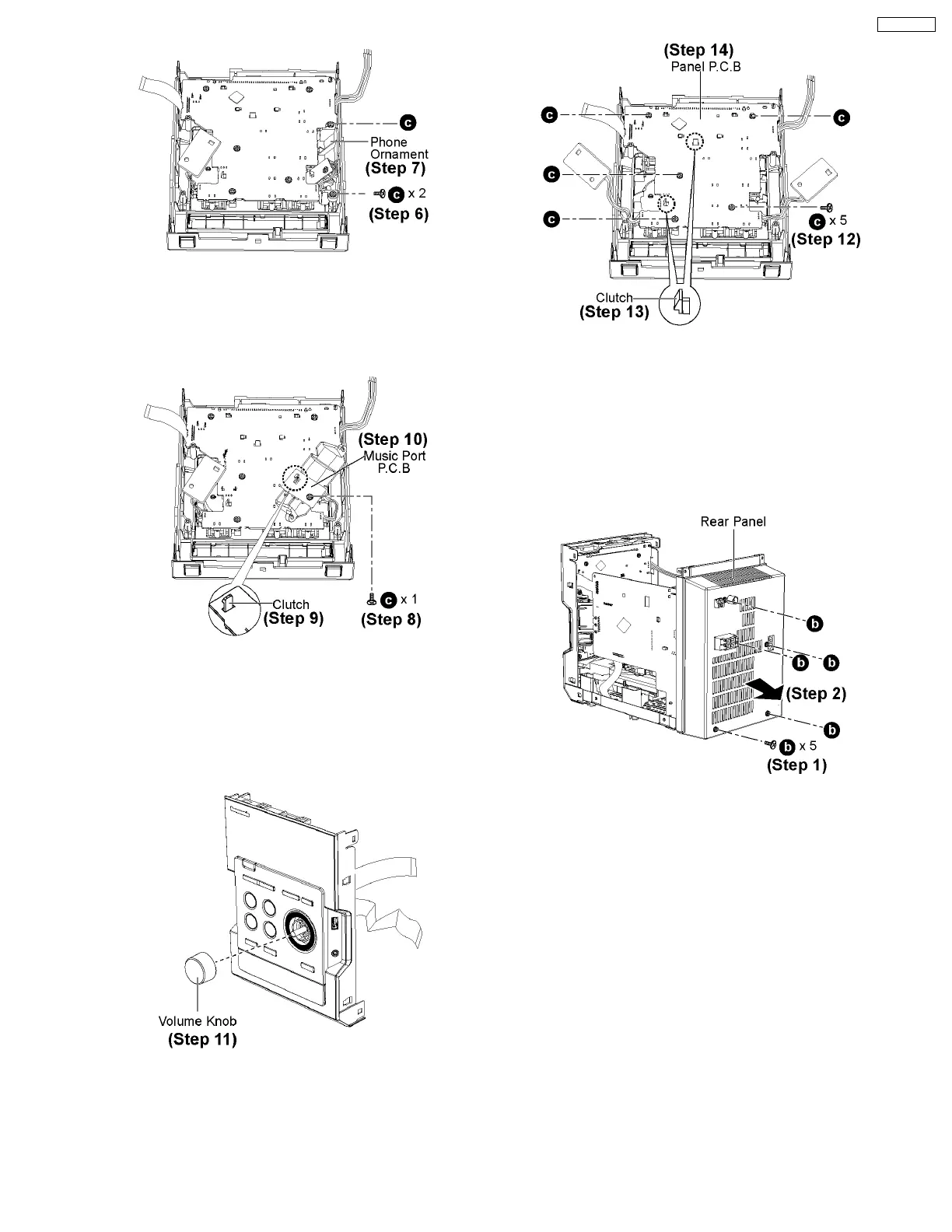

Step 6 : Remove 2 screws.
Step 7 : Remove the Phone Ornament.
Step 8 : Remove 1 screw.
Step 9 : Release the clutch.
Step 10 : Remove the Music Port P.C.B.
· Disassembly of Panel P.C.B
Step 11 : Remove the Volume Knob.
Step 12 : Remove 5 screw.
Step 13 : Release the 2 clutches.
Step 14 : Remove the Panel P.C.B.
9.10. Disassembly of Rear Panel
· Follow the (Step 1) - (Step 6) of Item 9.4.
· Follow the (Step 1) of Item 9.5.
Step 1 : Remove 5 screws.
Step 2 : Remove Rear Panel as arrow shown.
9.11. Disassembly of Main P.C.B
· Follow the (Step 1) - (Step 6) of Item 9.4.
· Follow the (Step 1) of Item 9.5.
· Follow the (Step 1) - (Step 6) of Item 9.6.
· Follow the (Step 1) - (Step 3) of Item 9.7.
· Follow the (Step 1) - (Step 2) of Item 9.10.
