Panasonic SA-PM45PC - Mechanism and Drive Unit Disassembly

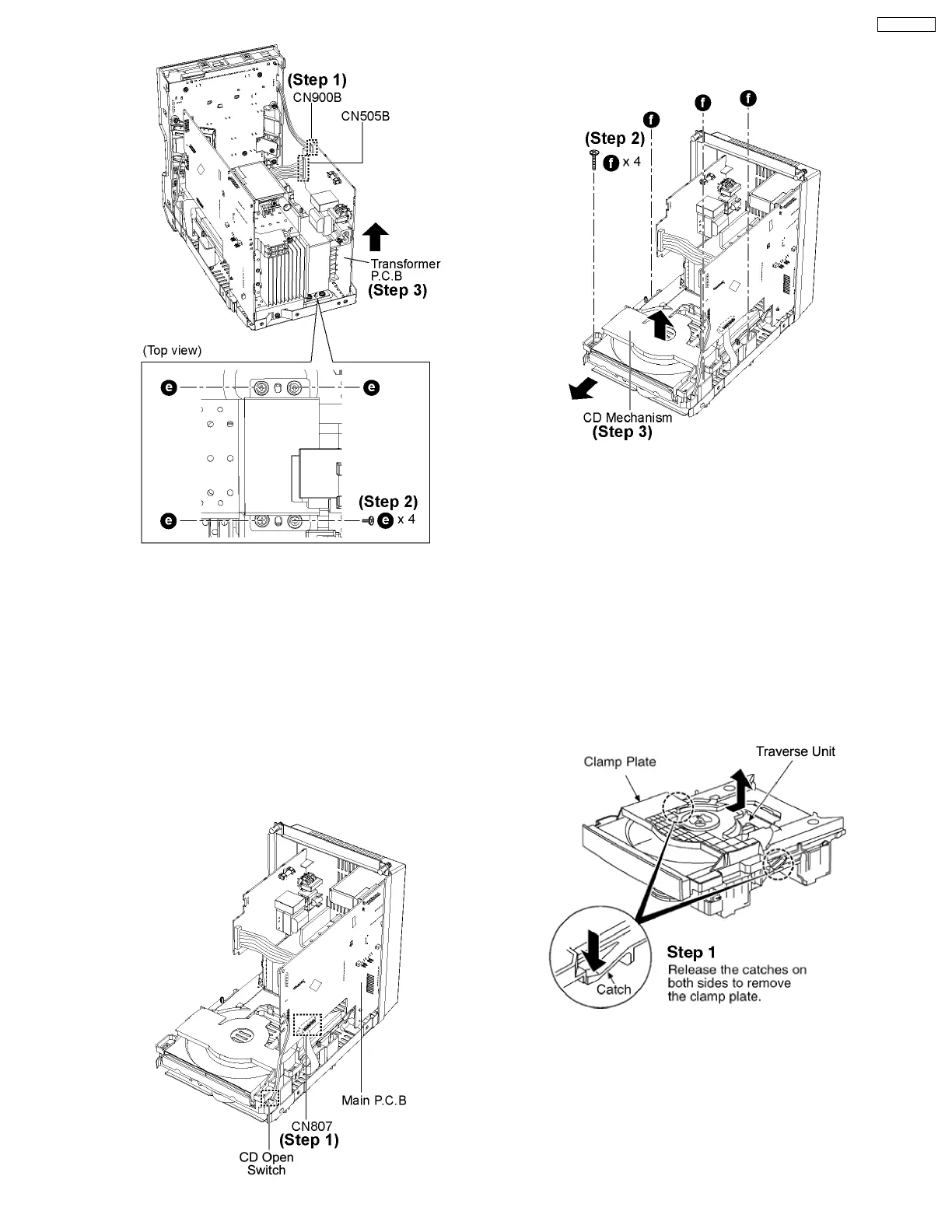

Step 1 : Detach cable (CN900B and CN505B) at Transformer
P.C.B.
Step 2 : Remove 4 screws.
Step 3 : Remove Transformer P.C.B as arrow shown.
9.14. Disassembly of CD
Mechanism
· Follow the (Step 1) - (Step 6) of Item 9.4.
· Follow the (Step 1) of Item 9.5.
· Follow the (Step 1) - (Step 6) of Item 9.6.
· Follow the (Step 1) - (Step 3) of Item 9.7.
Step 1 : Detach connector (CD Open Switch and CN807).
Step 2 : Remove 4 screws .
Step 3 : Lift up & remove the CD Mechanism unit as arrow
shown.
9.15. Disassembly of Traverse Unit,
Driving Gear, and Cam Gear
9.15.1. Disassembly of the Traverse Unit
· Follow the (Step 1) - (Step 6) of Item 9.4.
· Follow the (Step 1) of Item 9.5.
· Follow the (Step 1) - (Step 6) of Item 9.6.
· Follow the (Step 1) - (Step 3) of Item 9.7 .
· Follow the (Step 1) - (Step 3) of Item 9.14.
