9.4. Disassembly of Side Panel (L /
R)
·
Disassembly of Side Panel (R)

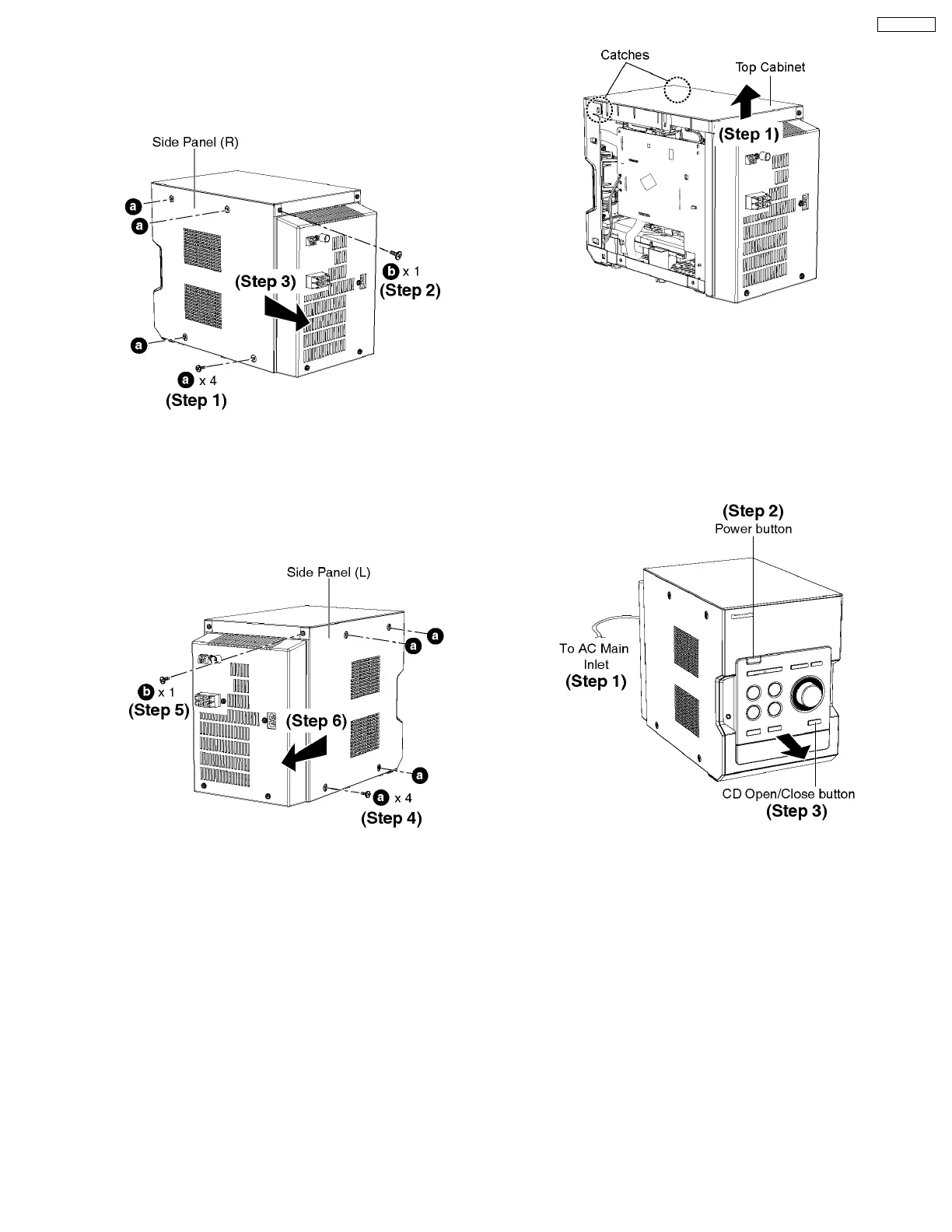

Step 1: Remove 4 screws.
Step 2 : Remove 1 screw.
Step 3 : Remove the Side Panel (R) as arrow shown.
·
Disassembly of Side Panel (L)
Step 4: Remove 4 screws.
Step 5 : Remove 1 screw.
Step 6 : Remove the Side Panel (L) as arrow shown.
9.5. Disassembly of Top Cabinet
Unit
·
Follow the (Step 1) - (Step 6) of Item 9.4.
Step 1 : Lift up the top cabinet as arrow shown.
Note: Be careful of the catches area.
9.6. Disassembly of CD Lid
·
Follow the (Step 1) - (Step 6) of Item 9.4.
·
Follow the (Step 1) of Item 9.5.
When opening the disc tray automatically (Using Power
Supply)
Step 1 : Connect the AC power cord.
Step 2 : Press the POWER button to power up the main unit.
Step 3 : Press the OPEN/CLOSE button, the disc tray will be
open automatically.
