Panasonic SA-PM45PC - Waveform Charts

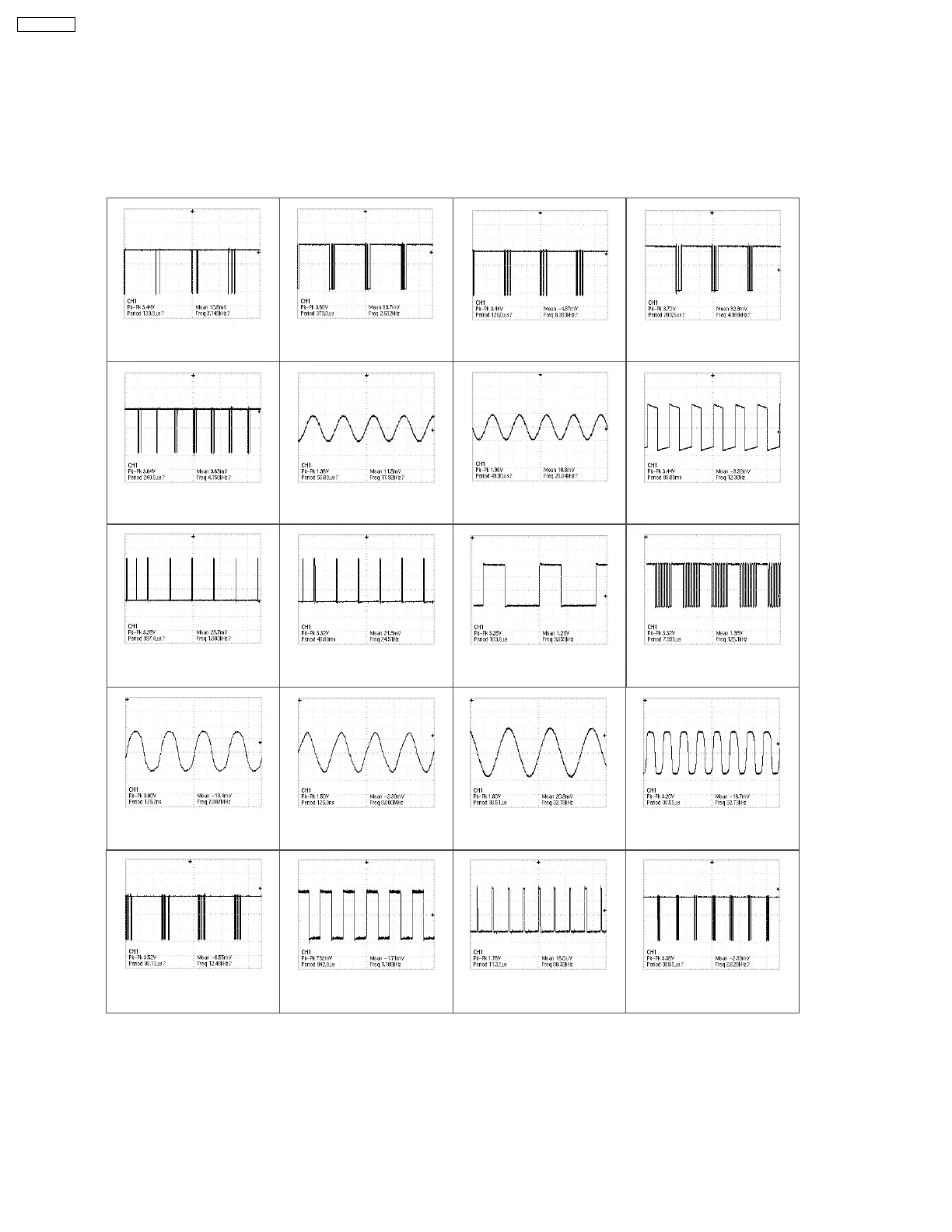

11.2. Waveform Chart
CN802 PIN 12
CD PLAY
3.44Vp-p (5msec.div)
CN802 PIN 13
CD PLAY
3.60Vp-p (5msec.div)
CN807 PIN 4
CD PLAY
3.72Vp-p (5msec.div)
CN807 PIN 8
CD PLAY
3.64Vp-p (10msec.div)
CN807 PIN 19
CD PLAY
1.96Vp-p (25usec.div)
CN807 PIN 21
CD PLAY
1.96Vp-p (25usec.div)
CN901B PIN 6
CD PLAY
3.44Vp-p (50msec.div)
CN901B PIN 7
CD PLAY
3.28Vp-p (50msec.div)
CN901B PIN 8
CD PLAY
3.32Vp-p (50msec.div)
IC803 PIN 4
CD PLAY
3.28Vp-p (25usec.div)
IC803 PIN 6
CD PLAY
3.32Vp-p (50usec.div)
CN802 PIN 15
CD PLAY
3.44Vp-p (5msec.div)
IC803 PIN 12
CD PLAY
3.00Vp-p (50nsec.div)
IC803 PIN 13
CD PLAY
1.50Vp-p (50nsec.div)
IC803 PIN 16
CD PLAY
3.20Vp-p (25usec.div)
IC803 PIN 33
CD PLAY
3.52Vp-p (5msec.div)
IC803 PIN 74
CD PLAY
792mVp-p (500usec.div)
IC7001 PIN 25
CD PLAY
1.76Vp-p (10usec.div)
IC7001 PIN 67
CD PLAY
3.36Vp-p (10msec.div)
IC803 PIN 15
CD PLAY
1.80Vp-p (10usec.div)
40
SA-PM45PC
