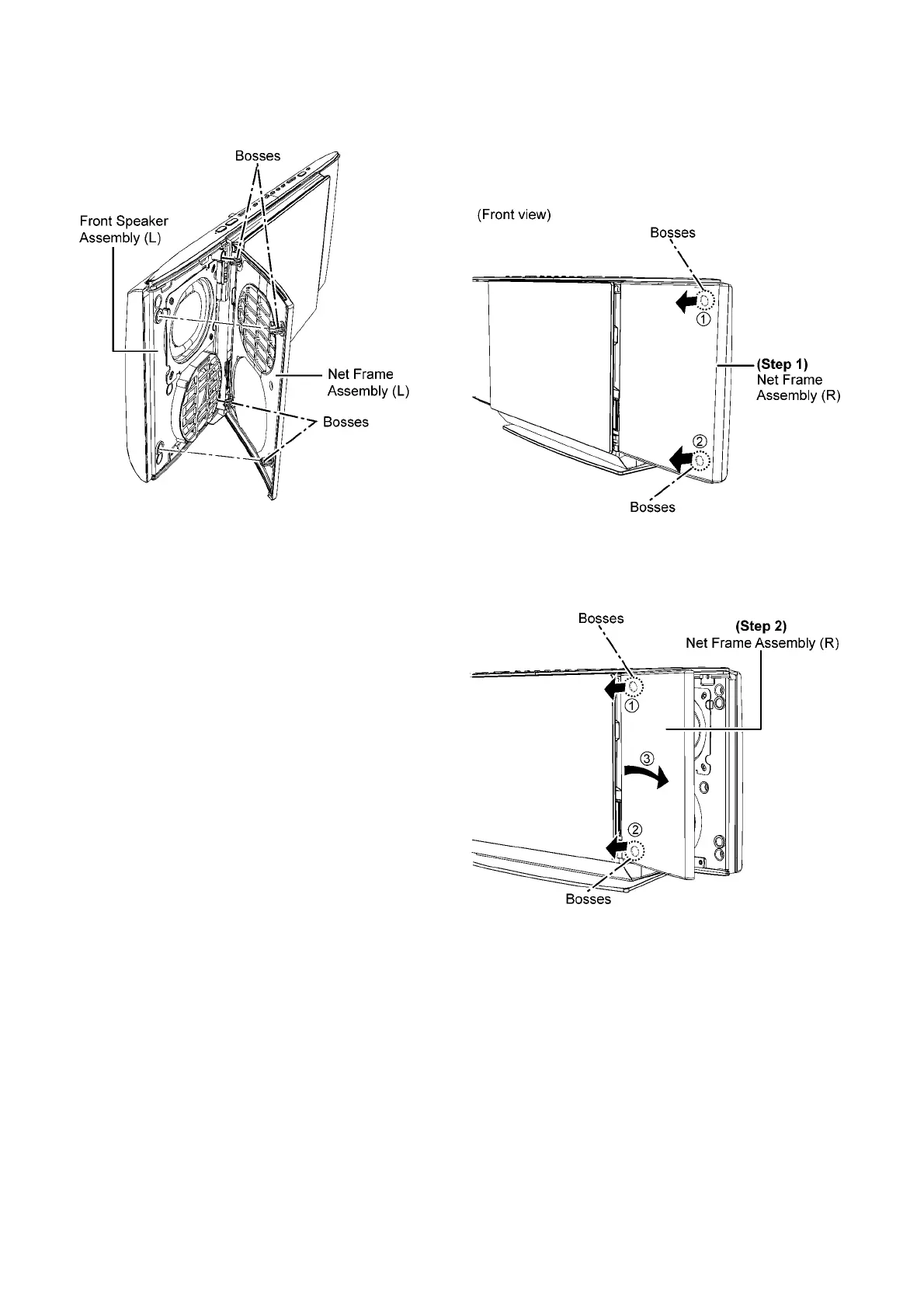

Caution : During assembling, ensure that the bosses are
aligned to their respective holes in Front Speaker Assem-
bly (L) as shown.
9.6.2. Disassembly of Net Frame Assem-
bly (R)
Step 1 : Gently lift up Net Frame Assembly (R).
Caution : During assembling, ensure the net frame assem-
bly (R) is seated properly
Step 2 : Remove Net Frame Assembly (R) as arrow shown.
To Next Page
