52

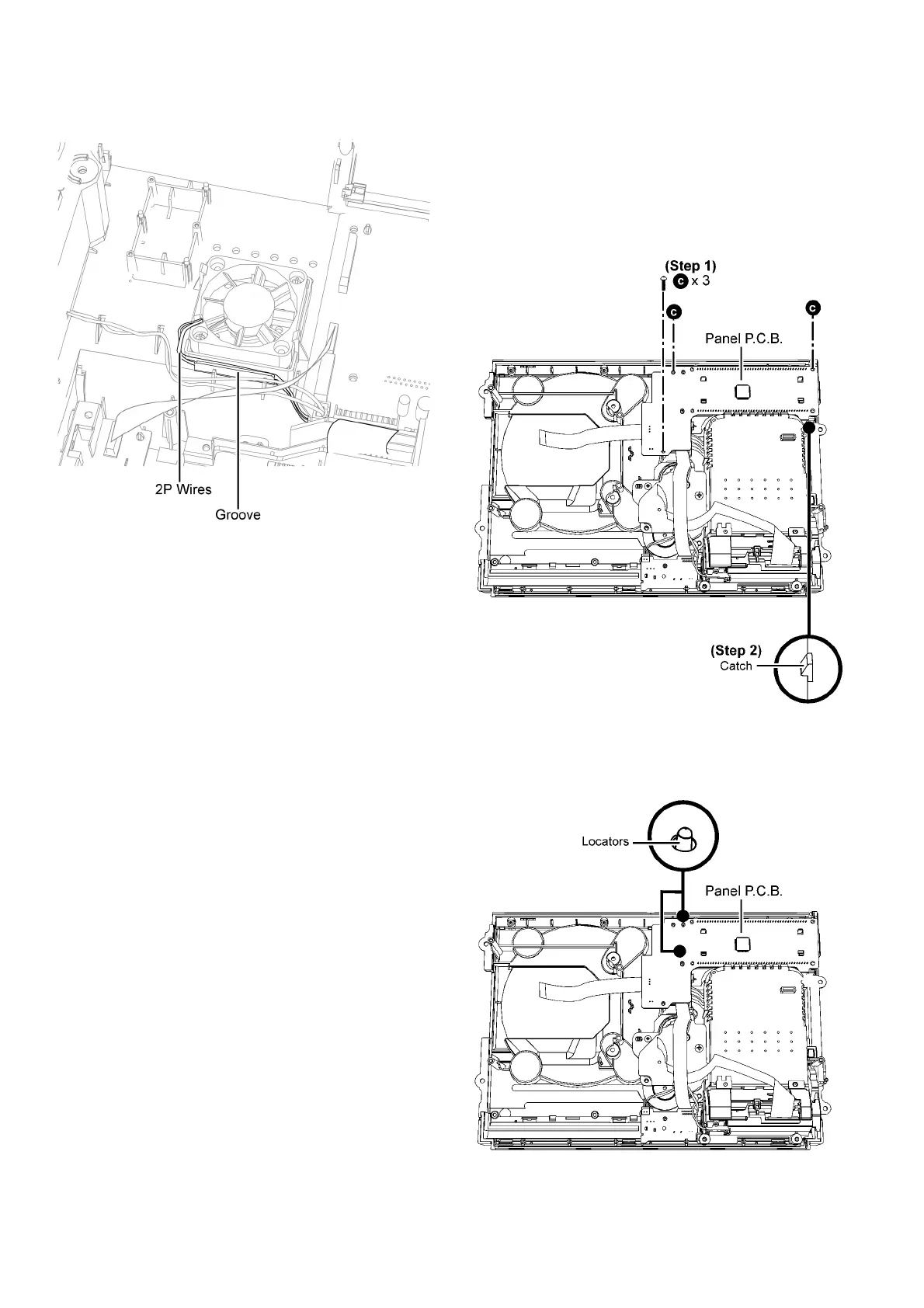

Caution : During assembling, ensure that the wires are
pushed into the groove and dressed porperly as shown in
the diagram below.
9.29. Disassembly of Panel P.C.B.
• Refer to “Disassembly of Stand Unit”.
• Refer to “Disassembly of CD Door Ass’y”.
• Refer to “Disassembly of Net Frame Assembly”.
• Refer to “Disassembly of Front Panel Block”.
Step 1 : Remove 3 screws.
Step 2 : Release 1 catch.
Caution : During assembling, ensure the Panel P.C.B. is
seated properly on the locator and catch.
To Next Page
