9.13. Disassembly of Front Speaker
(SP2).
• Refer to “Disassembly of Stand Unit”.
• Refer to “Disassembly of CD Door Ass’y”.
• Refer to “Disassembly of Net Frame Assembly”.
• Refer to “Disassembly of Front Panel Block”.
• Refer to “Disassembly of Top Ornament Unit”.

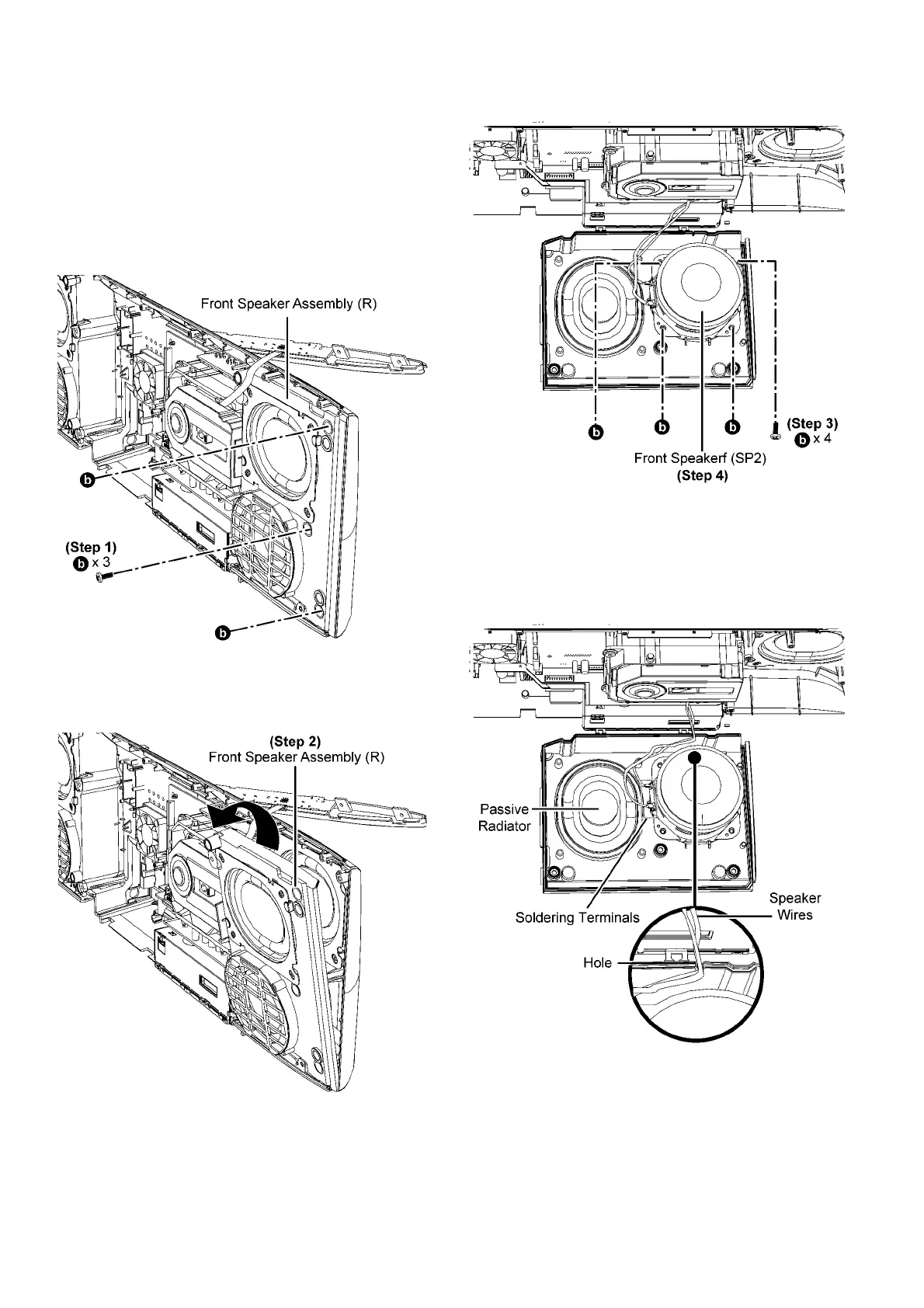

Step 1 : Remove 3 screws.
Step 2 : Lift up the Front Speaker Assembly (R).
Step 3 : Remove 4 screws.
Step 4 : Lift up the Front Speaker (SP2).
Caution 1 : During assembling, of the Front Speaker (SP2),
insert the speaker wires into the hole in the Front Speaker
Assembly (R).
Caution 2 : Ensure that the Front Speaker (SP2) soldering
terminals face the Passive Radiator.
Step 5 : Desolder the speaker terminals of the red (+) and
black (-) speaker wires.
Step 6 : Remove Front Speaker (SP2).
