35

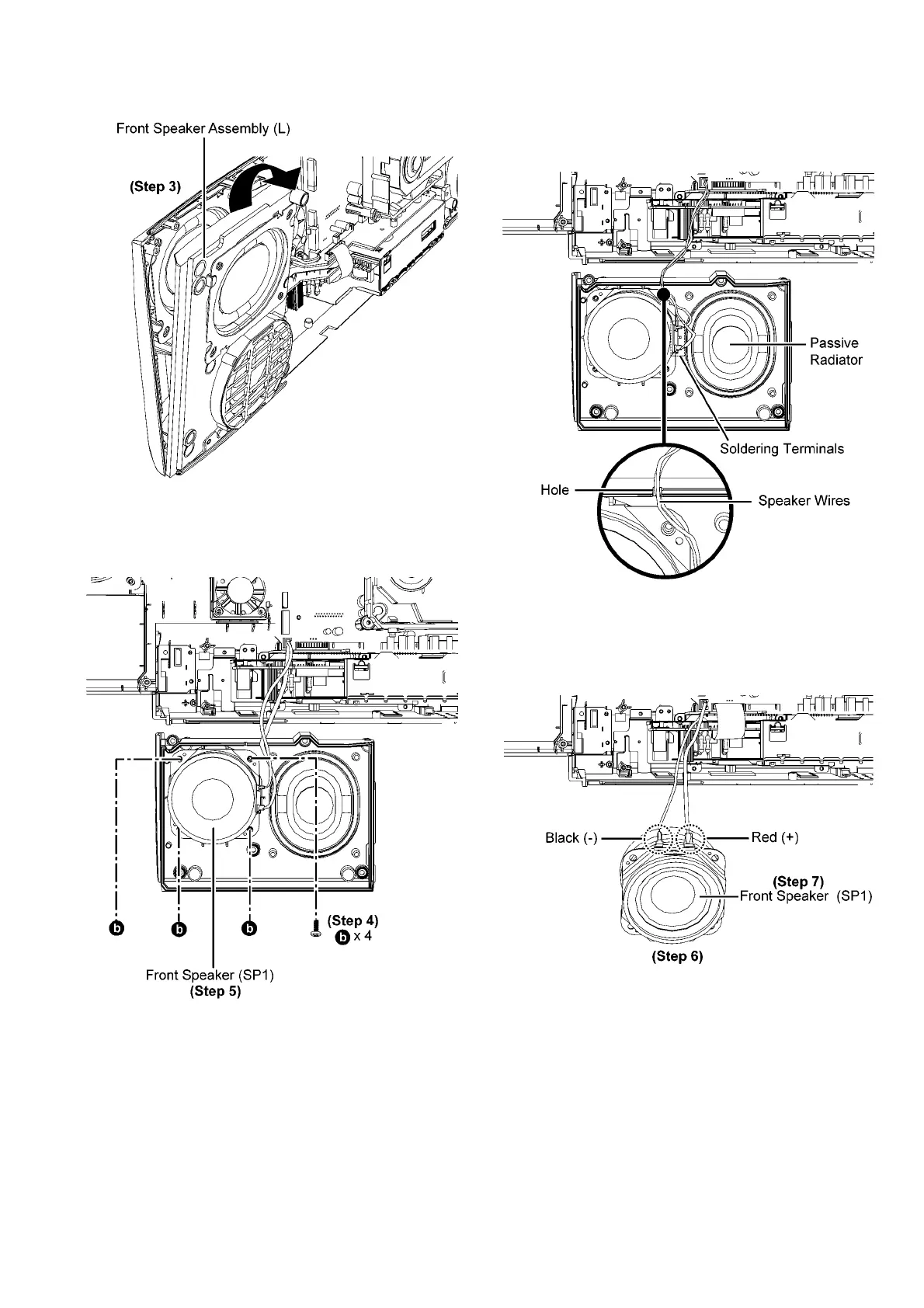

Step 3 : Lift up the Front Speaker Assembly (L).
Step 4 : Remove 4 screws.
Step 5 : Lift up the Front Speaker (SP1).
Caution 1 : During assembling, of the Front Speaker (SP1),
insert the speaker wires into the hole in the Front Speaker
Assembly (L).
Caution 2 : Ensure that the Front Speaker (SP1) soldering
terminals face the Passive Radiator.
Step 6 : Desolder the speaker terminals of the red (+) and
black (-) speaker wires.
Step 7 : Remove Front Speaker (SP1).
To Next Page
