9.15. Disassembly of Passive Radia-
tor (SP4).
• Refer to “Disassembly of Stand Unit”.
• Refer to “Disassembly of CD Door Unit”.
• Refer to “Disassembly of Net Frame Assembly”.
• Refer to “Disassembly of Front Panel Block”.
• Refer to “Disassembly of Top Ornament Unit”.
• Refer to (Step 1) - (Step 2) of item 9.13.

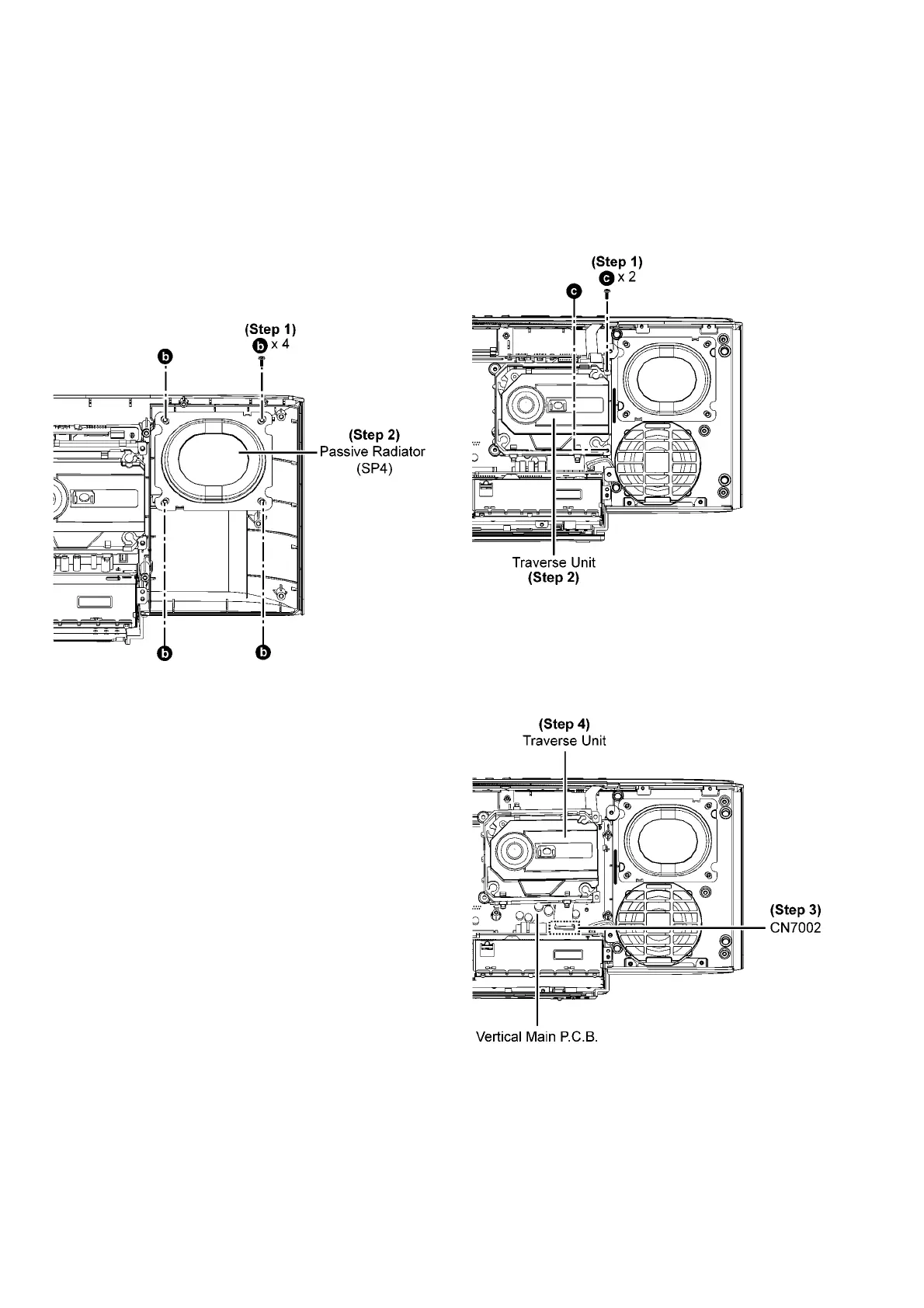

Step 1 : Remove 4 screws.
Step 2 : Remove Passive Raidator (SP4).
9.16. Disassembly of Traverse Unit.
• Refer to “Disassembly of Stand Unit”.
• Refer to “Disassembly of CD Door Unit”.
• Refer to “Disassembly of Net Frame Assembly”.
• Refer to “Disassembly of Front Panel Block”.
Step 1 : Remove 2 screws.
Step 2 : Slightly lift up the Traverse Unit.
Step 3 : Detach 25P FFC at the connector (CN7002) on the
Vertical Main P.C.B..
Step 4 : Remove Traverse Unit.
