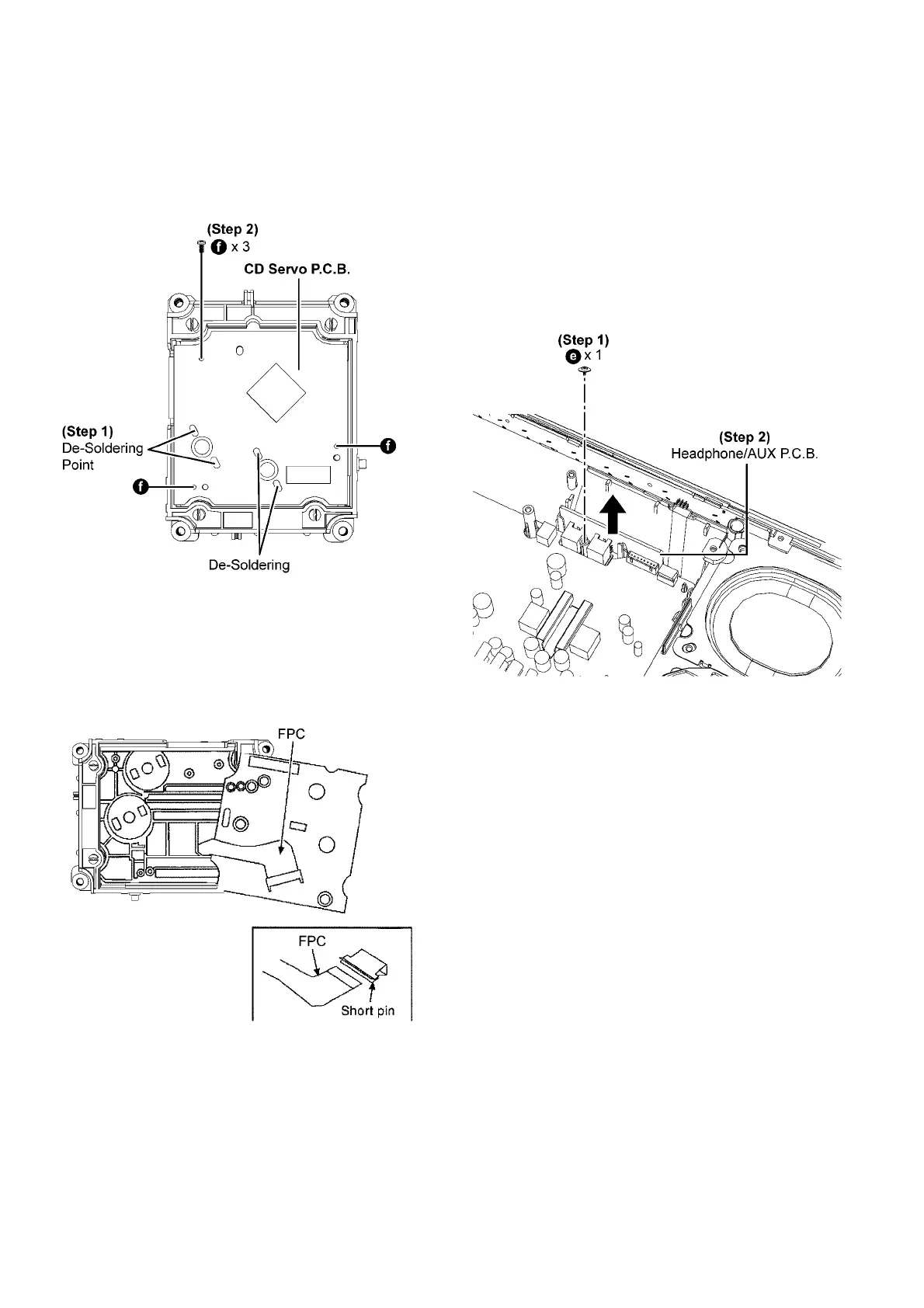

9.18. Disassembly of CD Servo
P.C.B.
• Refer to "Disassembly of Traverse Unit”
Step 1 : Desolder the terminal.
Step 2 : Remove 3 screws.
Step 3 : Flip the CD Servo P.C.B..
Step 4 : Detach FPC.
Step 5 : Attach a short pin to the unit.
Caution : Insert a short pin into FPC of the optical pickup.
[See “Handling Precautions for traverse unit”]
9.19. Disassembly of Headphone/
AUX P.C.B.
• Refer to “Disassembly of Stand Unit”.
• Refer to “Disassembly of CD Door Unit”.
• Refer to “Disassembly of Net Frame Assembly”.
• Refer to “Disassembly of Front Panel Block”.
• Refer to "Disassembly of Traverse Unit”
Step 1 : Remove 1 screw.
Step 2 : Remove Headphone/AUX P.C.B..
Caution : During assembling, ensure the Headphone/AUX
P.C.B. is seated properly.
