Panasonic SC-HC30EF - Disassembly of Tuner P.C.B

50

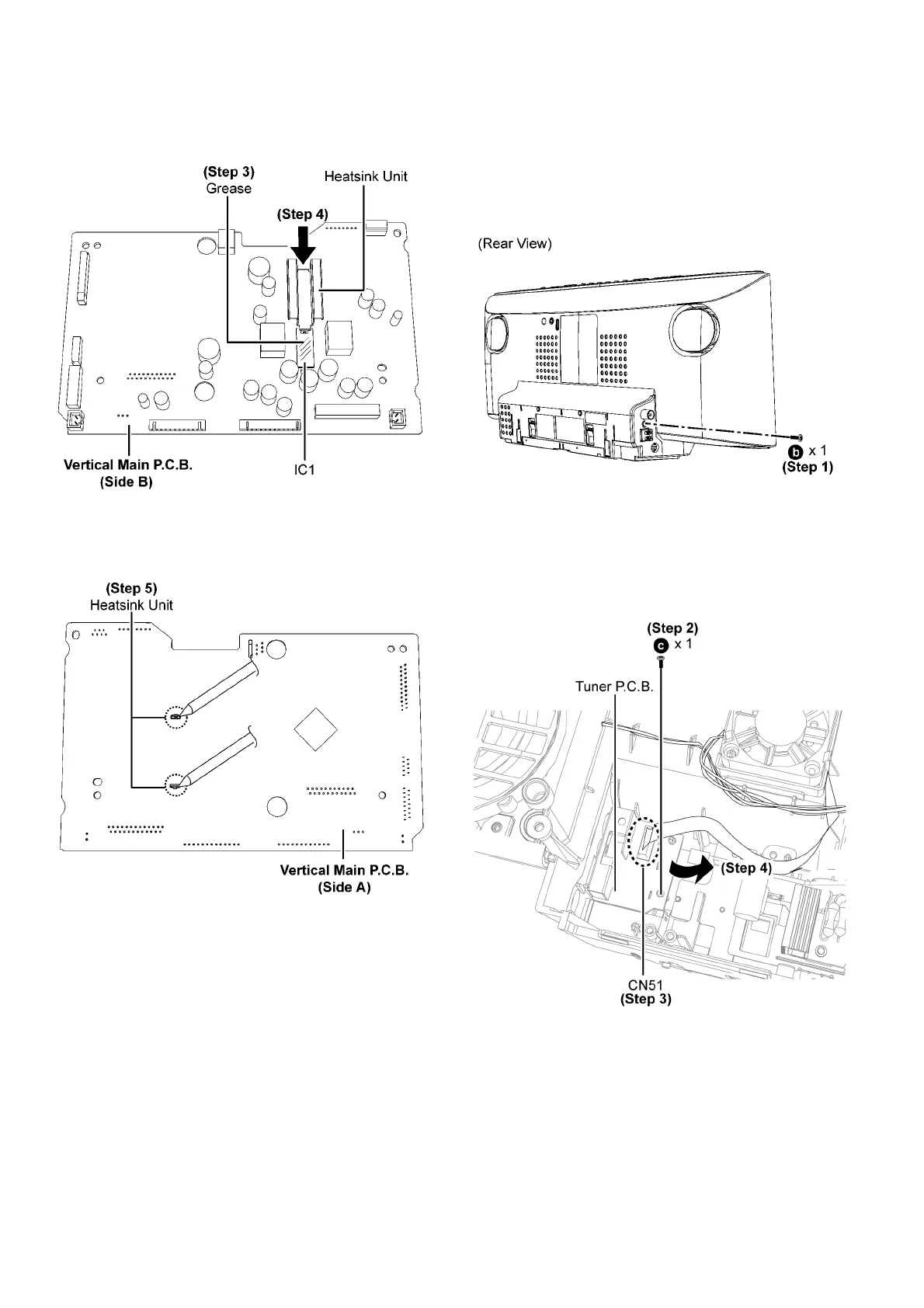

Step 3 : Apply grease onto the top side of the Power Amplifier
IC (IC1).
Step 4 : Fix the Heatsink Unit onto the Vertical Main P.C.B..
Step 5 : Solder pins of the Heatsink Unit.
9.27. Disassembly of Tuner P.C.B.
• Refer to “Disassembly of Stand Unit”.
• Refer to “Disassembly of CD Door Ass’y”.
• Refer to “Disassembly of Net Frame Assembly”.
• Refer to “Disassembly of Front Panel Block”.
Step 1 : Remove 1 screw.
Step 2 : Remove 1 screw.
Step 3 : Detach 9P FFC at the connector (CN51) on the Tuner
P.C.B..
Step 4 : Remove Tuner P.C.B. as arrow shown.
