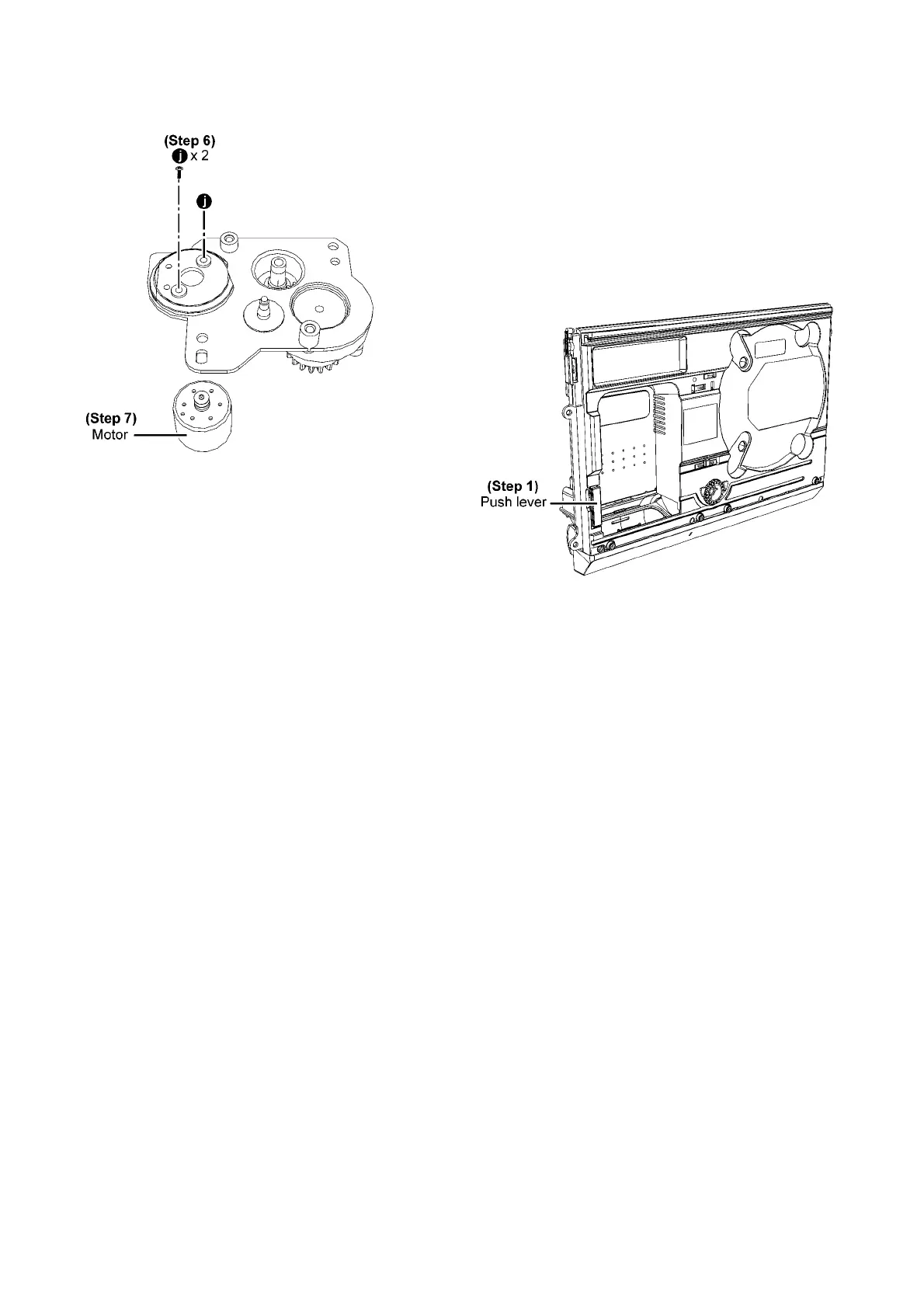

Step 6 : Remove 2 screws.
Step 7 : Remove the Motor.
9.33. Disassembly of iPod/iPhone
P.C.B.
• Refer to “Disassembly of Stand Unit”.
• Refer to “Disassembly of CD Door Ass’y”.
• Refer to “Disassembly of Net Frame Assembly”.
• Refer to “Disassembly of Front Panel Block”.
• Refer to (Step 1) - (Step 2) of item 9.30.
Step 1 : Press the push lever to release it.
