9.31. Disassembly of Motor P.C.B.,
Door Switch P.C.B. and Inter-
lock Switch P.C.B.
• Refer to “Disassembly of Stand Unit”.
• Refer to “Disassembly of CD Door Ass’y”.
• Refer to “Disassembly of Net Frame Assembly”.
• Refer to “Disassembly of Front Panel Block”.
• Refer to “Disassembly of Panel P.C.B.”.

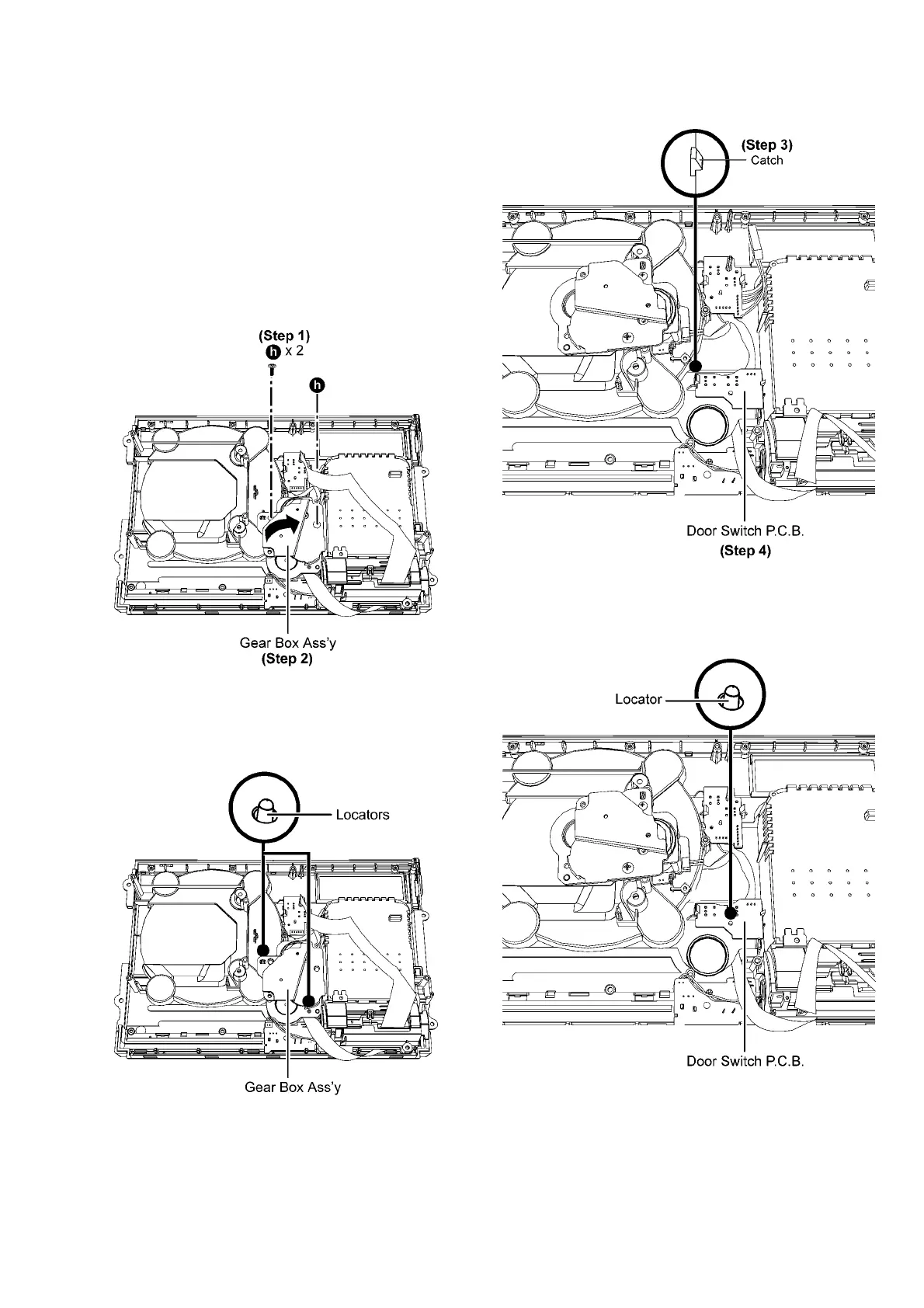

Step 1 : Remove 2 screws.
Step 2 : Lift up the Gear Box Ass’y as arrow shown.
Caution : During assembling, ensure the Gear Box Ass’y is
seated properly on the locator.
Step 3 : Release 1 catch.
Step 4 : Lift up Door Switch P.C.B..
Caution : During assembling, ensure the Door Switch
P.C.B. is seated properly on the locator.
