9.17. Disassembly of Traverse Cover
& Traverse Ass’y.
• Refer to “Disassembly of Traverse Unit”.

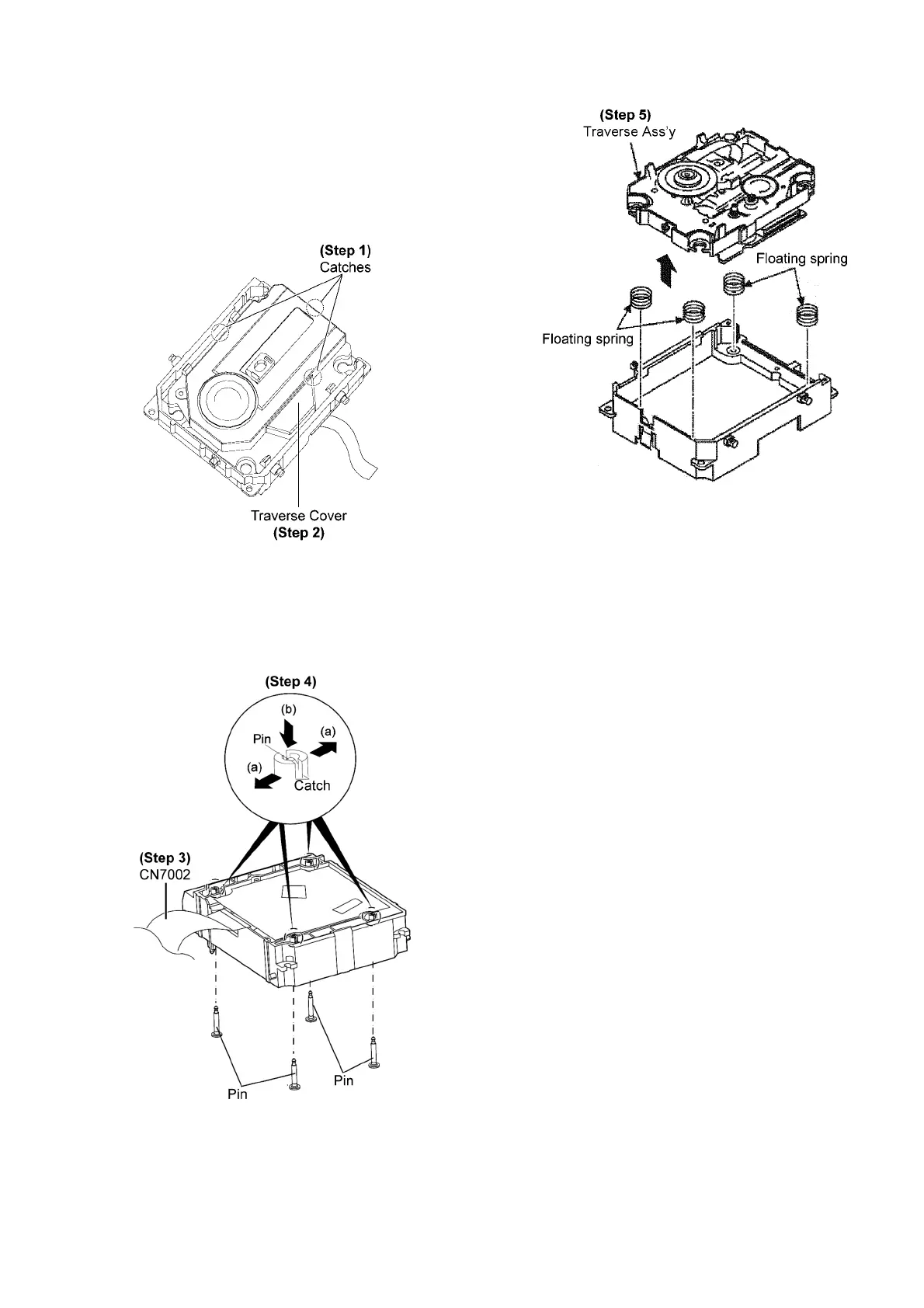

Step 1 : Release 3 catches.
Step 2 : Remove the Traverse Cover.
Step 3 : Detach 25P FFC at the connector (CN7002) on the CD
Servo P.C.B..
Step 4 : Release both catches and push down the fixed pin as
arrow shown.
Step 5 : Lift up the Traverse Ass’y to remove it.
To Next Page
