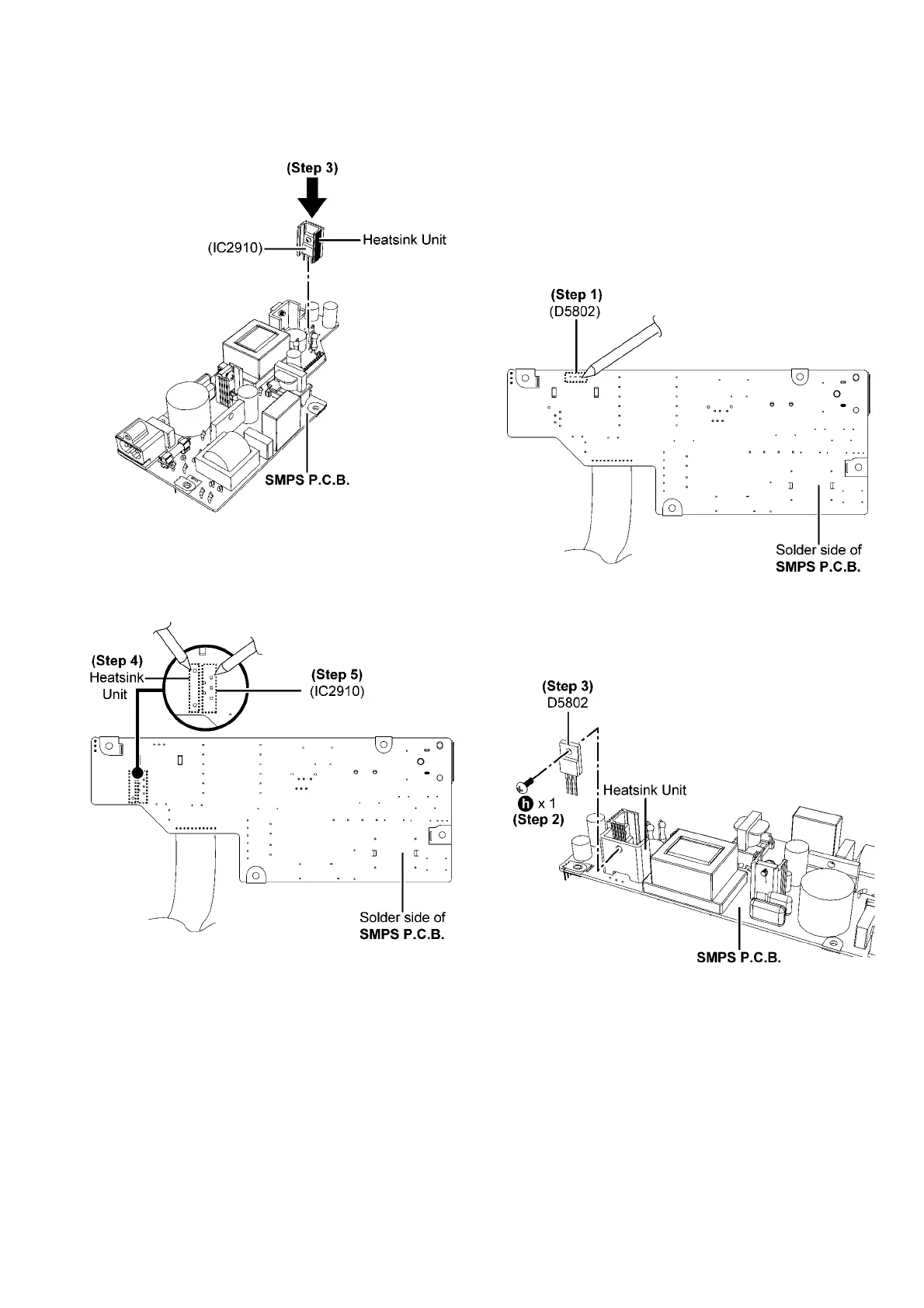

Step 3 : Mount the Voltage Regulator IC (IC2910) onto SMPS
P.C .B .
Caution : Ensure the Voltage Regulator IC (IC2910) is
seated properly on the SMPS P.C.B..
Step 4 : Solder pins of the Heatsink Unit.
Step 5 : Solder pins of the Voltage Regulator IC (IC2910).
Caution : Ensure the Voltage Regulator IC (IC2910) is
seated properly onto the SMPS P.C.B. before soldering.
9.24. Replacement of Diode (D5802)
• Refer to "Disassembly of SMPS P.C.B.".
9.24.1. Disassembly of Diode (D5802)
Caution : Handle the heatsink unit and P.C.B. with caution
due to its high temperature after prolonged use. Touching
it may lead to injuries.
Step 1 : Desolder pins of Diode (D5802) on the solder side of
SMPS P.C.B..
Step 2 : Remove 1 screw.
Step 3 : Remove the Diode (D5802).
To Next Page
