9.24.2. Assembly of Diode (D5802)

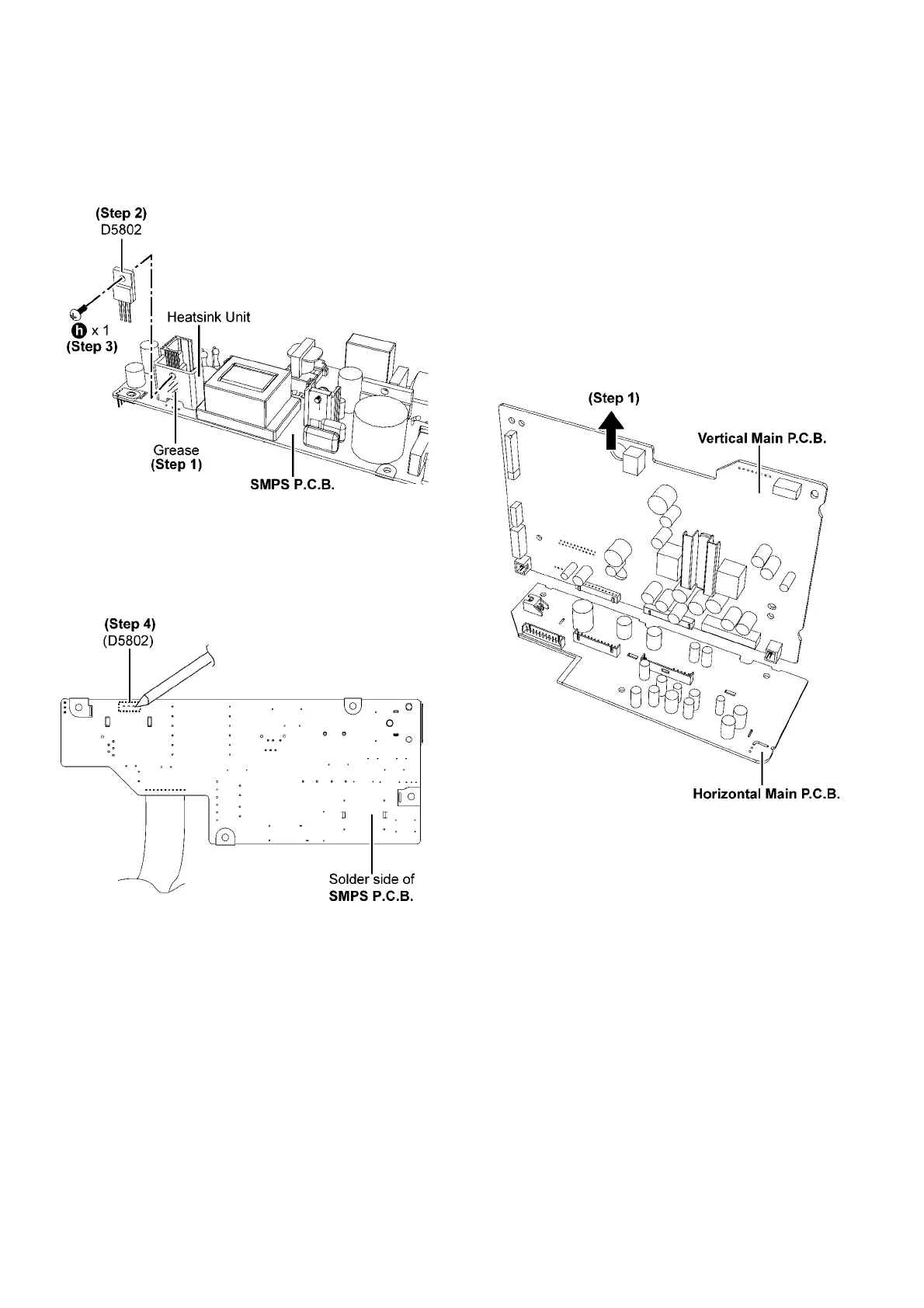

Step 1 : Apply grease to the Heatsink Unit.
Step 2 : Mount the Diode (D5802) onto SMPS P.C.B.
Caution : Ensure the Diode (D5802) is seated properly on
the SMPS P.C.B..
Step 3 : Fix & screw the Diode (D5802) onto the Heatsink Unit.
Step 4 : Solder pins of the Diode (D5802).
Caution : Ensure the Diode (D5802) is seated properly onto
the SMPS P.C.B. before soldering.
9.25. Disassembly of Horizontal
Main P.C.B. and Vertical Main
P.C.B.
• Refer to “Disassembly of Stand Unit”.
• Refer to “Disassembly of CD Door Ass’y”.
• Refer to “Disassembly of Net Frame Assembly”.
• Refer to “Disassembly of Front Panel Block”.
• Refer to "Disassembly of Traverse Unit”
• Refer to "Disassembly of Headphone/AUX P.C.B.”
• Refer to “Disassembly of PCB Block”.
• Refer to (Step 1) - (Step 3) of item 9.21.
Step 1 : Detach Horizontal Main P.C.B. and Vertical Main
P.C.B. as arrow shown.
