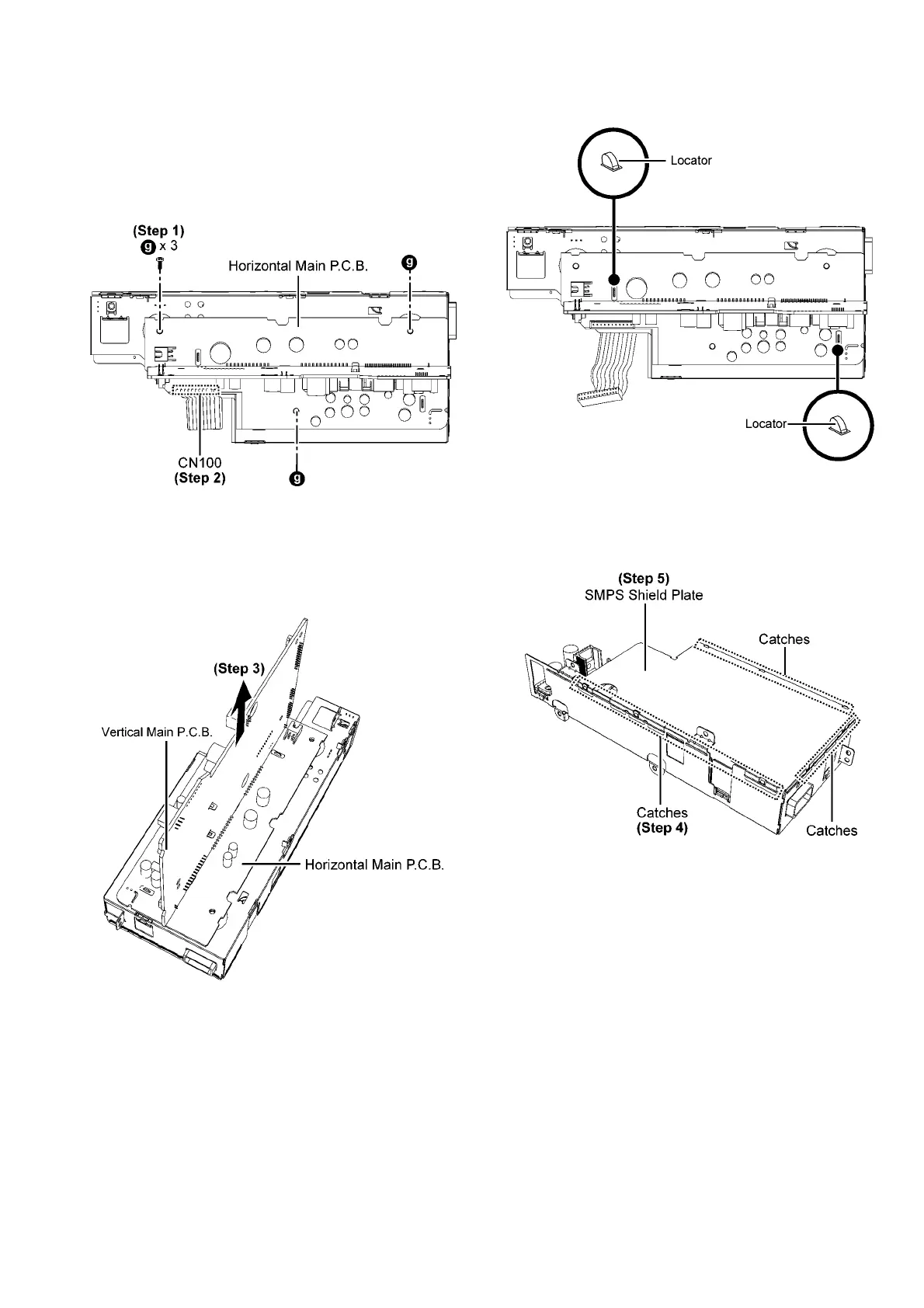

9.21. Disassembly of SMPS P.C.B.
• Refer to “Disassembly of PCB Block”.
Step 1 : Remove 3 screws.
Step 2 : Detach 11P cable at the connector (CN100) on the
Horizontal Main P.C.B..
Step 3 : Lift up Vertical Main P.C.B. and Horizontal Main P.C.B.
together.
Caution : During assembling, ensure the Horizontal Main
P.C.B. is seated properly on the locator.
Step 4 : Release catches.
Step 5 : Remove SMPS Shield Plate.
