Panasonic SC-HC30EF - Disassembly of Front Panel Block

31

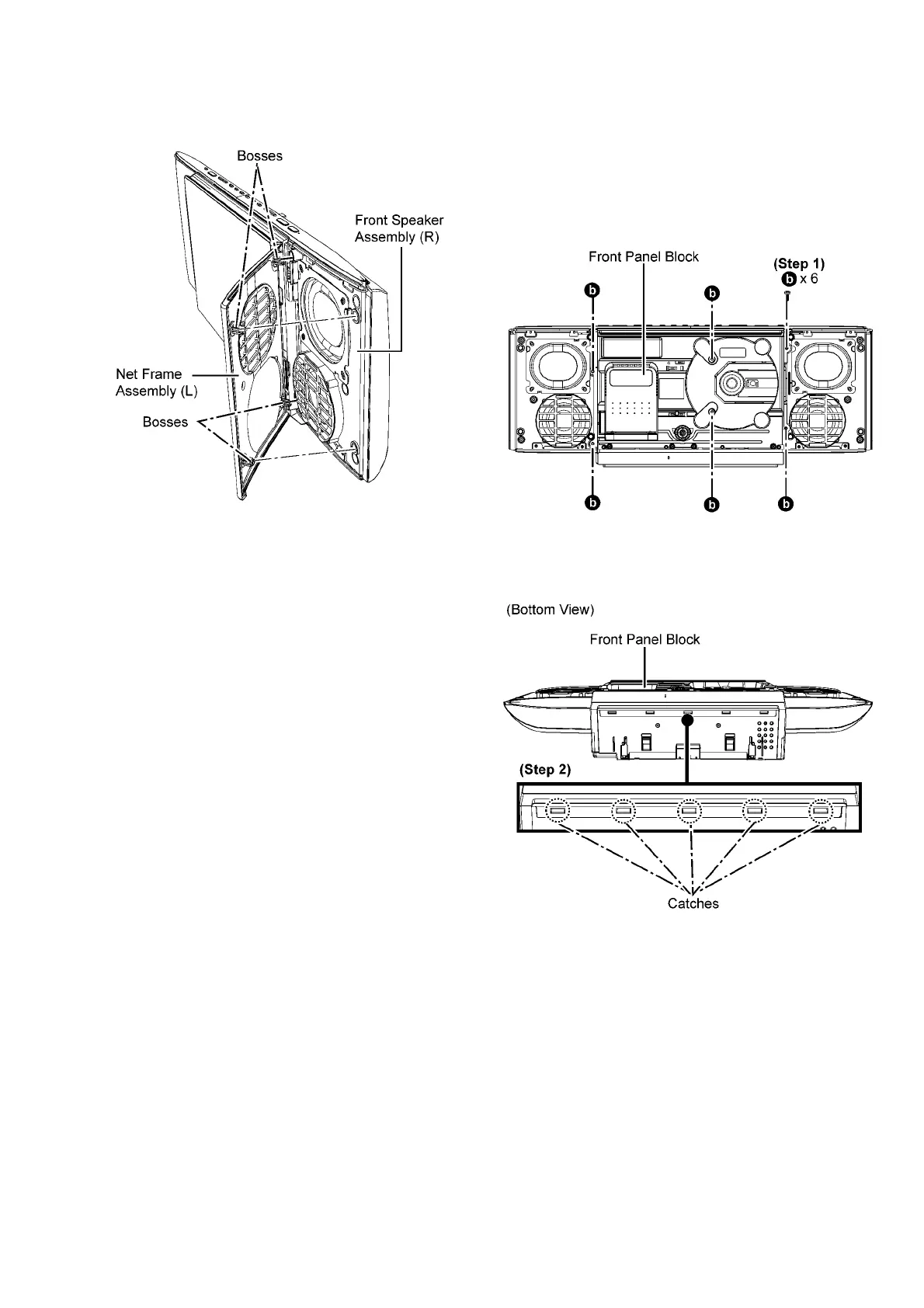

Caution : During assembling, ensure that the bosses are
aligned to their respective holes in Front Speaker Assem-
bly (R) as shown.
9.7. Disassembly of Front Panel
Block
• Refer to “Disassembly of Stand Unit”.
• Refer to “Disassembly of CD Door Ass’y”.
• Refer to “Disassembly of Net Frame Assembly”.
Step 1 : Remove 6 screws.
Step 2 : Gently release the 5 catches on the Front Panel Block.
