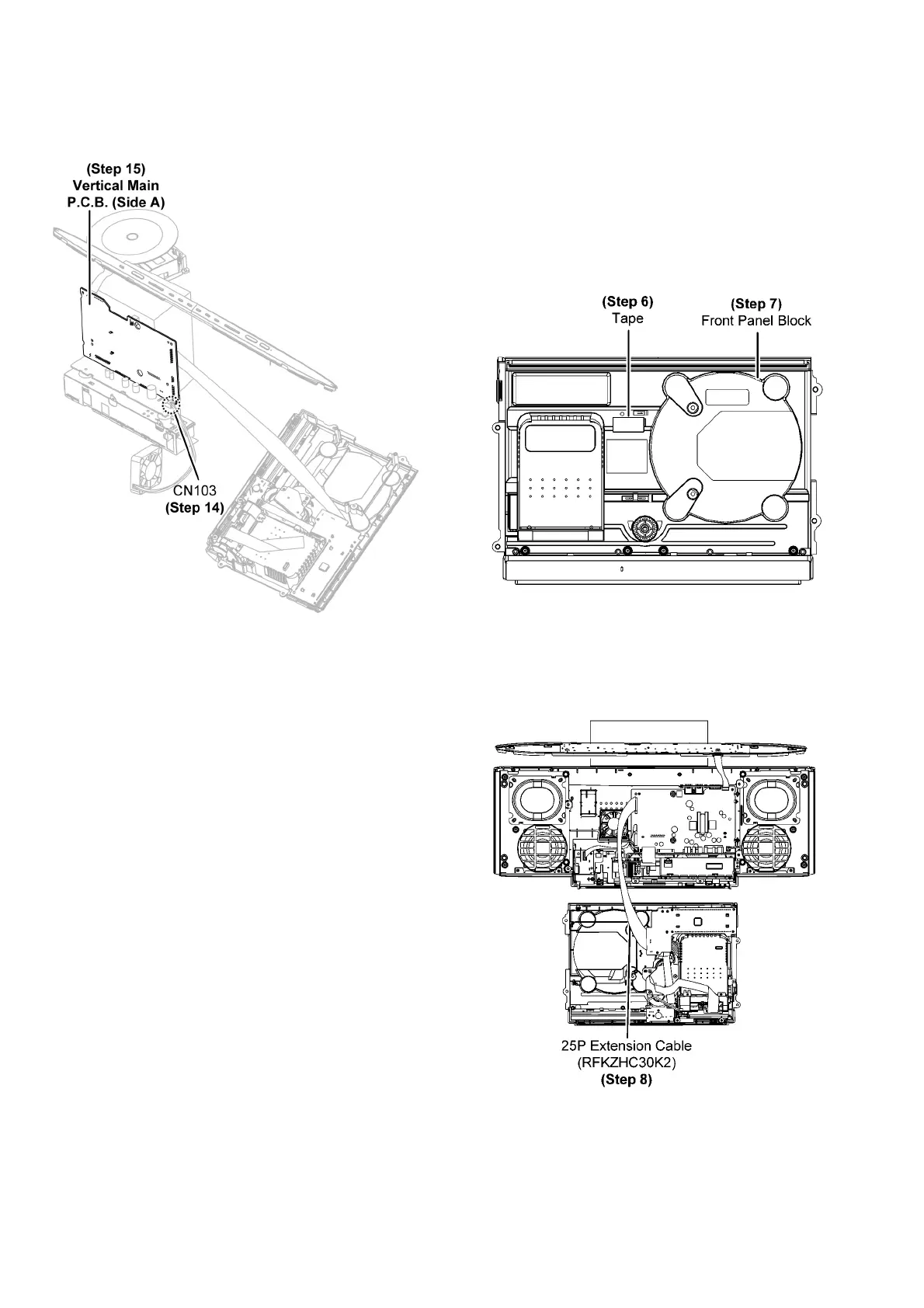

Step 14 : Connect 2P wire at the connector (CN103) on the
Horizontal Main P.C.B..
Step 15 : Check and repair the Vertical Main P.C.B. (Side A)
according to the diagram shown.
10.6. Checking & Repairing of Verti-
cal Main P.C.B. (Side B)
Step 1 : Remove the Stand Unit.
Step 2 : Remove the CD Door Ass’y.
Step 3 : Remove the Net Frame Assembly.
Step 4 : Remove the Front Panel Block.
Step 5 : Remove the Traverse Unit.
Step 6: Use tape to keep the Switch depressed.
Step 7 : Flip over the Front Panel Block.
Step 8 : Connect 25P extension cable (RFKZHC30K2) from
CN6801 on the Panel P.C.B. to CN900 on the Vertical Main
P.C.B..
