Step 4 : Remove 1 screw.
Step 5 : Remove the Switching Regulator IC (IC5701).

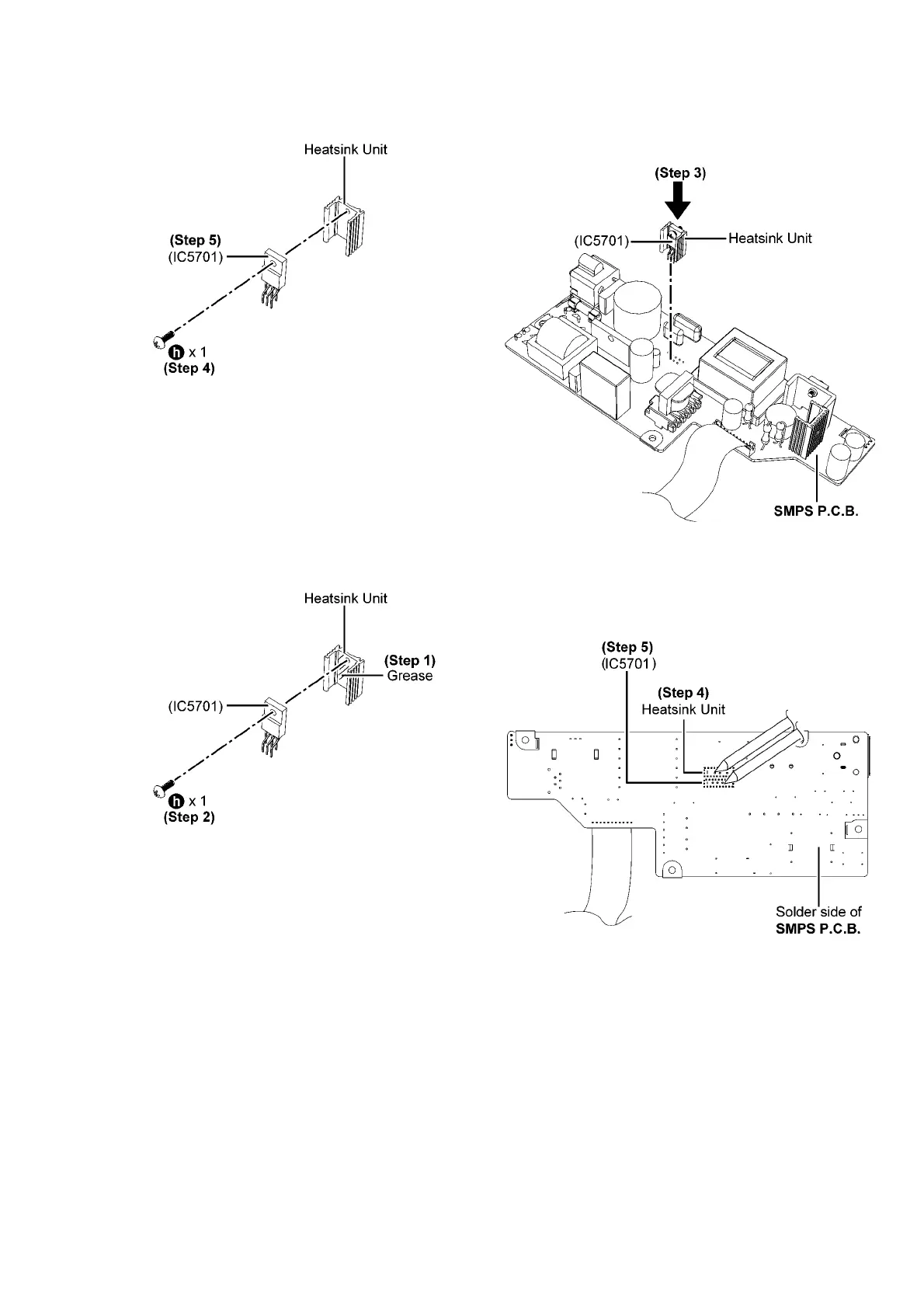

9.22.2. Assembly of Switching Regulator
IC (IC5701)
Step 1 : Apply grease to the Heatsink Unit.
Step 2 : Fix & screw the Switching Regulator IC (IC5701) onto
the Heatsink Unit.
Caution : Ensure the Switching Regulator IC (IC5701) is
tightly screwed to the Heatsink Unit.
Step 3 : Mount the Switching Regulator IC (IC5701) onto
SMPS P.C.B.
Caution : Ensure the Switching Regulator IC (IC5701) is
seated properly on the SMPS P.C.B..
Step 4 : Solder pins of the Heatsink Unit.
Step 5 : Solder pins of the Switching Regulator IC (IC5701).
Caution : Ensure the Switching Regulator IC (IC5701) is
seated properly onto the SMPS P.C.B. before soldering.
