64

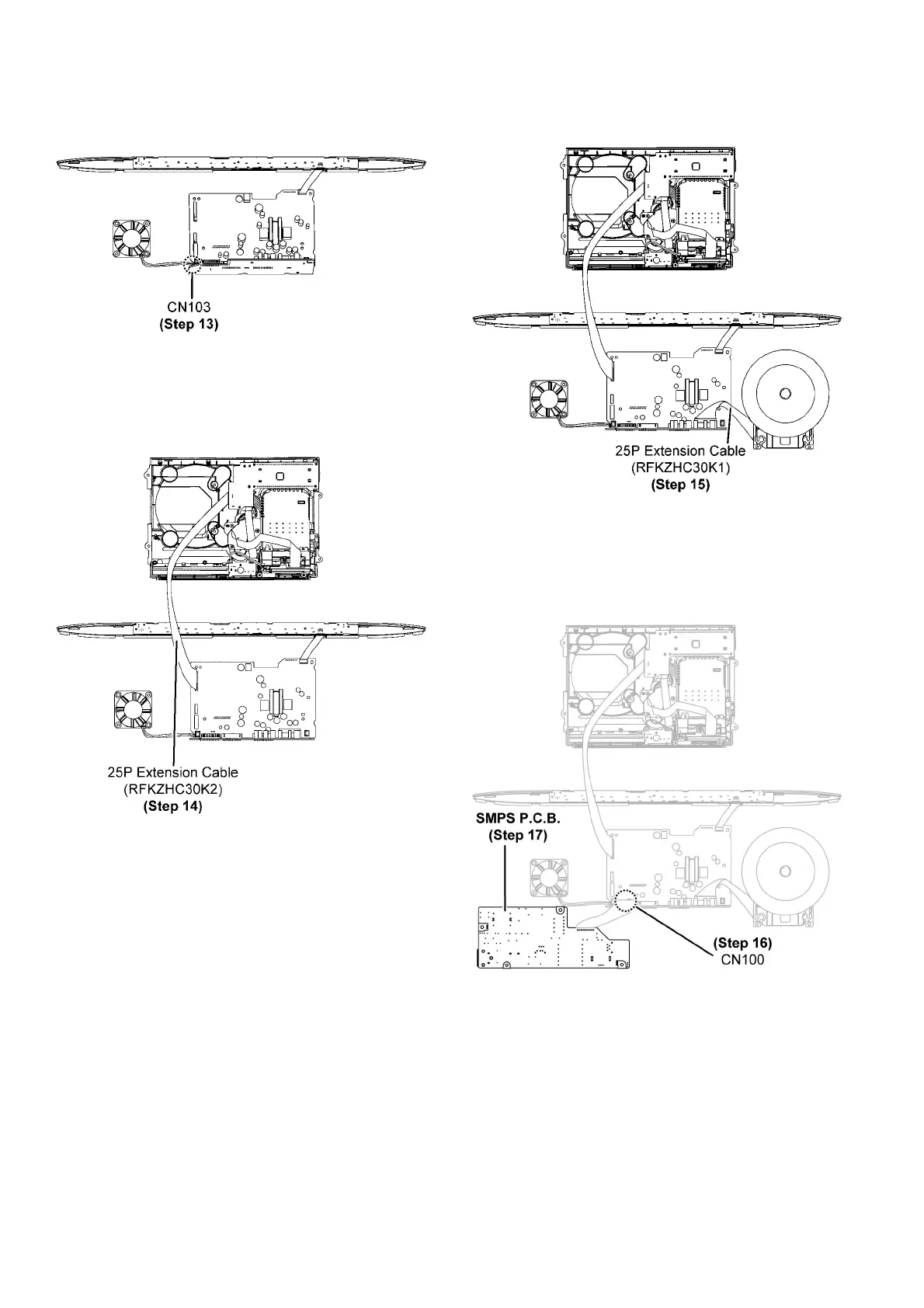

Step 13 : Connect 2P wire at the connector (CN103) on the
Horizontal Main P.C.B..
Step 14 : Connect 25P extension cable (RFKZHC30K2) from
CN6801 on the Panel P.C.B. to CN900 on the Vertical Main
P.C.B..
Step 15 : Connect 25P extension cable (RFKZHC30K1) from
CN7002 on the CD Servo P.C.B. to CN7002 on the Vertical
Main P.C.B..
Step 16 : Connect 11P cable at the connector (CN100) on the
Horizontal Main P.C.B..
Step 17 : Check and repair the SMPS P.C.B. according to the
diagram shown.
