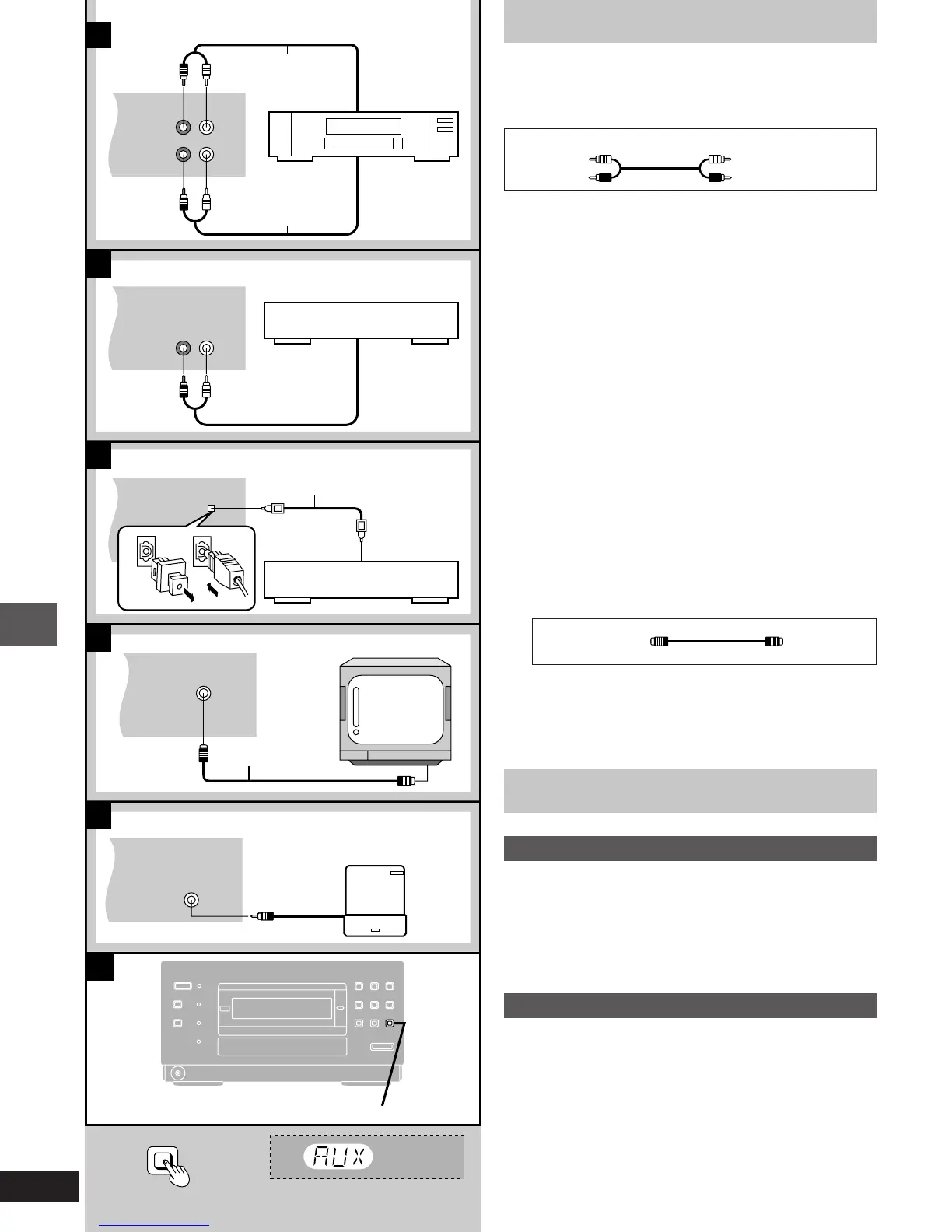

External unit connections
³Turn the unit off before making connections.
³Refer to the manual of the other unit for details.
(Cables, cords and equipment not included.)
[A] Cassette tape deck/video cassette recorder
You can play the sound from a cassette tape deck or a video
cassette recorder through this unit’s speakers or record sound
from the unit onto a cassette tape or a video cassette.
To record to a cassette or video deck, connect to LINE
OUT (A).
To listen to sound from another unit through this unit’s speakers,
connect to AUX (B).
[B] Record player
Sound cannot be produced unless a phono equalizer (not in-
cluded) is connected.
A record player with a built-in phono equalizer is recommended.
[C] Amplifier with DTS decoder
You can enjoy DTS by connecting an amplifier that has a DTS
decoder (➡ page 41 for setting).
Remove the dust cap on this unit’s rear panel and connect using
an optical fiber cable.
[D] TV with an S-VIDEO terminal
The S-VIDEO output terminal achieves a more vivid picture than
the VIDEO output terminal by separating the color and lumi-
nance signals before transmitting them to the television. (Actual
results depend on the television.)
[E] Subwoofer
The included front speakers have superwoofers, but by con-
necting a subwoofer, you can enhance the bass effect found on
DVDs encoded with Dolby Digital (➡ page 31 for operation).
Using other equipment
»
F
Listening to an external source
1 Press [AUX].
The unit comes on automatically.
2 Operate the unit.
See the unit’s manual for details on operation and connection.
Recording onto an external unit
Select the desired source.
Start recording on the external unit and start playing the source to be
recorded.
Rear panel
Rear panel
Rear panel
Rear panel
Cassette
tape deck/
video cassette
recorder
Record player
Optical fiber cable
Amplifier with
DTS decoder
Subwoofer
AUDIO
OUT
AUDIO
OUT
AUDIO
IN
OPT
DIGITAL IN
S-VIDEO cord
(not included)
S-VIDEO cord
TV
Rear panel
(R)
(L)
