Settings
23
P19
Double pulse
(MUP) enabled
0 1 or 2
1
0
0: normal pulse
1:double pulse
2:pulse + Short circuit

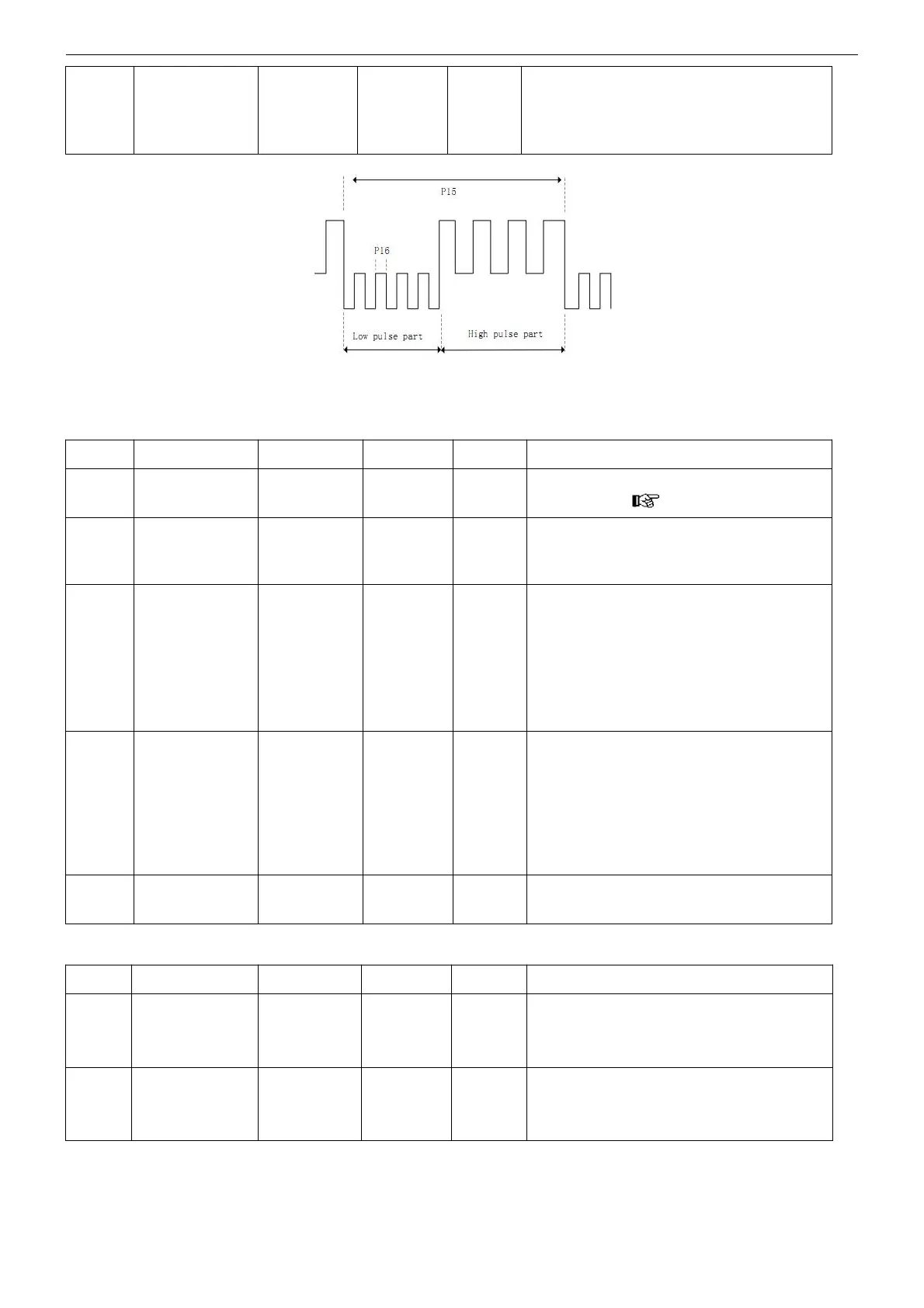

※5 Double pulse: In the original pulse (high pulse part), based on the increase in the low pulse part.c
【INIT·CRATER】
NO.
Menu contents
Set range
Increment
Default
Note
P06
CRATER
REPEAT
0 or 1
1
0
1: enabled, 0: disabled.
（ Chapter 8）
P07
CRATER
REPEAT
TIME
0 s～5 s
1 s
2 s
The setting of the value of the time of
closing arc repeating.
P14
Crater linkage
percentage
0～200
1
0
NOT 0: The arc current is [Welding current]
* [Setting value] %; 0: The closing arc
current is the setting of [Arc current value].
Note: After the linkage percentage is set,
the arc current does not exceed the
maximum welding current limit [350 A /
500 A]
P13
INIT linkage
percentage
0～200
1
0
Not0: Initial current is [Welding current] *
[Setting value] %;
0: Initial current is the set [Initial current
value].
Note: After the linkage percentage is set,
the initial current will not exceed the
maximum value of the welding current [350
A / 500 A]
P27
INIT·CRATER
Switch
0 or 1
1
0
1：AUTO 0：Manual
【Others】
NO.
Menu contents
Set range
Increment
Default
Note
P24
Arc shape
-99～99
1
0
The higher value you set, the more
concentrated arc you get ； The lower, the
less concentrated arc.
P25
Welding display
mode
0 or 1
1
0
0 stands for current and voltage display ;1
stands for energy display [P=U*I] .
