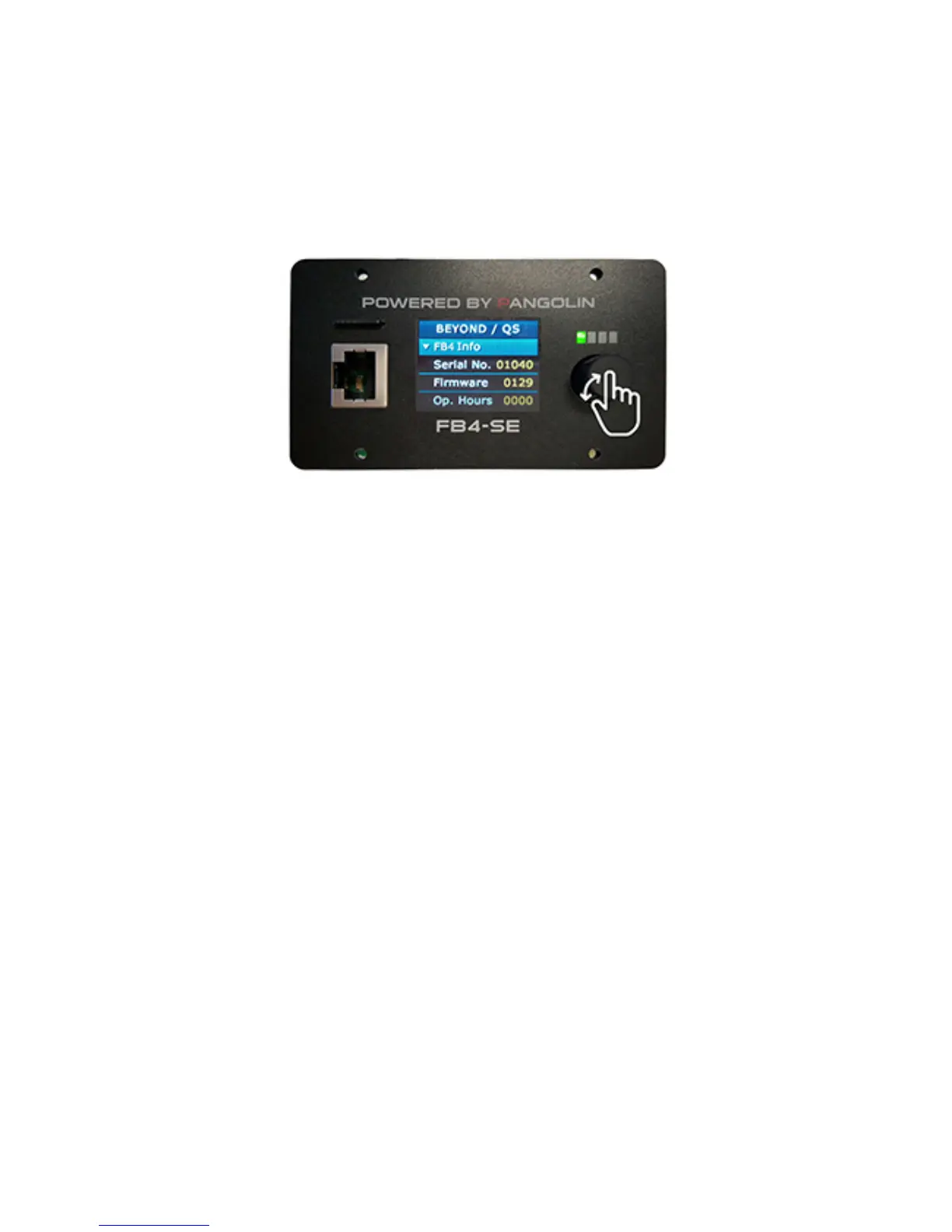

FB4 Settings
Menu options will become available depending on the operation mode the FB4 is working
on. E.g. in [BEYOND/QS] mode, [Geo correction] is not available.
[MASTER SETTINGS]
The [master settings] determine the range and the limits of the FB4 scan angle. It determines
where the projector may send laser light. Adjustments made below influence the Maximum
scannable region, limited by the scanner performance inside the laser projector. All master
settings are applied before software or DMX fixture modifications take place. The alterations
of the master settings do not affect the output resolution of the software applications.
[Master settings] will be saved when powering down the laser.
[Brightness] Determines the maximum output brightness of the laser.
[Master size] Determines the overall size of the projection area.
[X Scale] Determines the horizontal size of the projection image
[Y Scale] Determines the vertical size of the projection image
[Invert X] Inverts the complete output area on the X ax.
[Invert Y] Inverts the complete output area on the Y ax.
[Swap XY] Inverts the complete output area on the X and Y axes.
[Rescan time] Allows you to raise the error threshold by allowing the FB4 to repeat
the last part of a frame when it expects a frame and does not receive
one. This can happen when experiencing bad network conditions.
The default value is 500.
Note: Changing sizing inside QuickShow or BEYOND, modifies the resolution of the
output image. When using master size on FB4 (ether through the QuickShow or Beyond
FB4 settings editor or on the back of the FB4) the image will always maintain the
highest resolution.
