Pangolin FB4 SE - Color Outputs; Color Output Pinout Details

FB4 SE manual Version 0.91 Beta
27

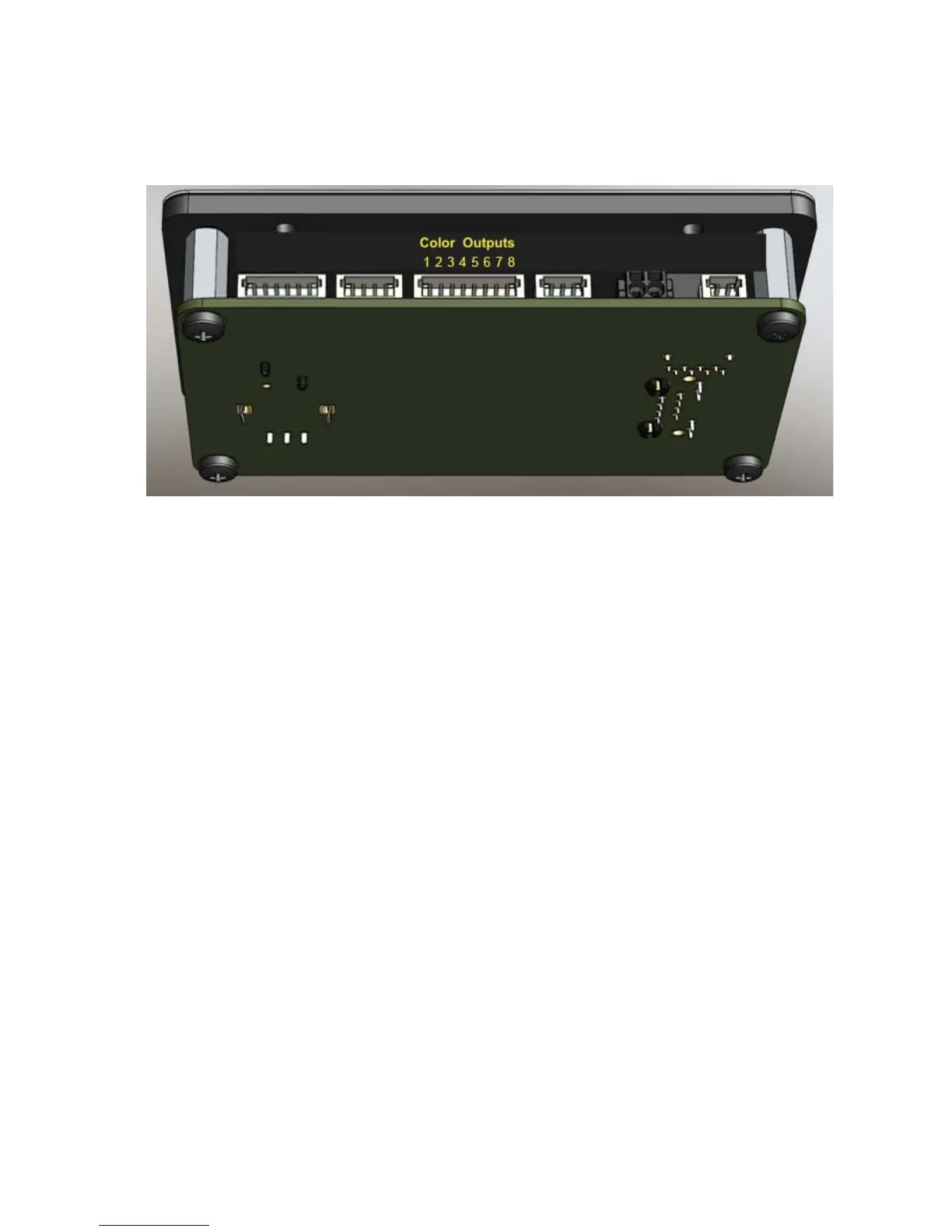

Color Outputs
Color Output
Pin Signal Name Voltage level
1 Color 1 (Red) 0 to +5V
2 Color 2 (Green) 0 to +5V
3 Color 3 (Blue) 0 to +5V
4 Color 4 (Deep Blue) 0 to +5V
5 Color 5 (Yellow) 0 to +5V
6 Color 6 (Cyan) 0 to +5V
7 Shutter 0 to +5V
8 GND
