[DMX-512]

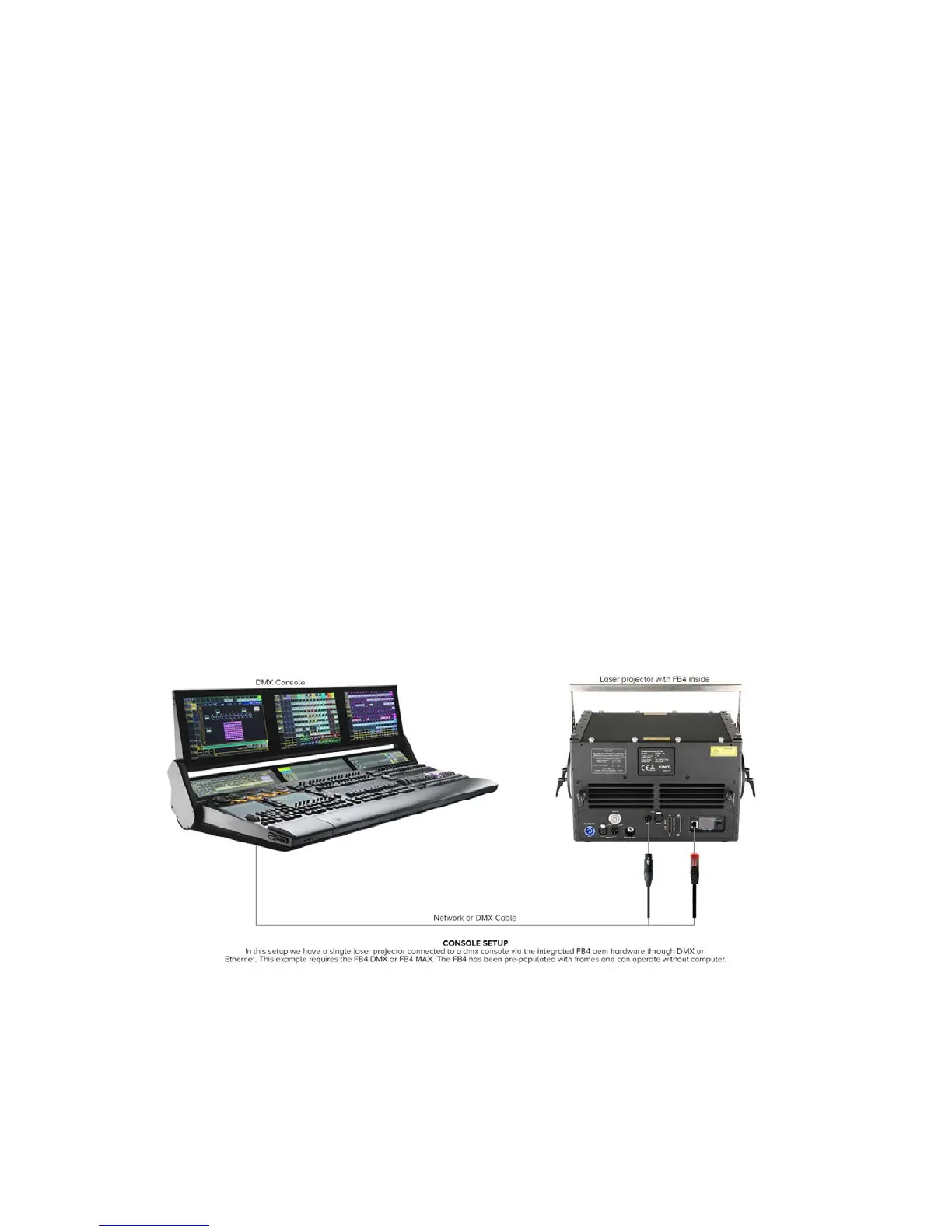

[DMX 512] is only available when the DMX daughter board is connected. This
daughterboard has two XLR-5 connectors for DMX in and through. The XLR 5 ports are
meant to control the laser as “DMX fixture”. Laser frames can be stored on the SD card and
playback can be controlled by DMX. Laser frames can be uploaded by Pangolin’s
QuickShow or BEYOND its FB4 Export wizard through an ethernet connection.
The FB4 has two separate fixture profiles. A 16-channel and a 39-channel fixture profile.
More information about both profiles can be found on page 20.
During this operation mode, the following menu options will be available.
[DMX settings] (See page 12)
[Master settings] (See page 11)
[Geo Correction] (See page 14)
[Color Settings] (See page 14)
[Scan Guard] (See page 14)
[Network Setup] (See page 15)
[FB4 Device Info] (See page 15)
Note: The XLR 5 ports can not be used to generate DMX output.
Note: It is not possible to send content from QuickShow or BEYOND through the XLR cables
connections.
