FB4 ILDA Daughterboard Connector
FB4 may be connected to an optional daughterboard which provides ILDA-
Input and ILDA-Through capability. When this daughterboard is used, FB4 can
direct the ILDA Input through FB4 circuitry for signal modification, before
forwarding those signals to the Axis and Color outputs on the FB4. The signal
modification includes the ability to adjust the color level and color shift as well
as the orientation of the ILDA input. All of these ILDA input signal
modifications are accessible through the FB4 menus.

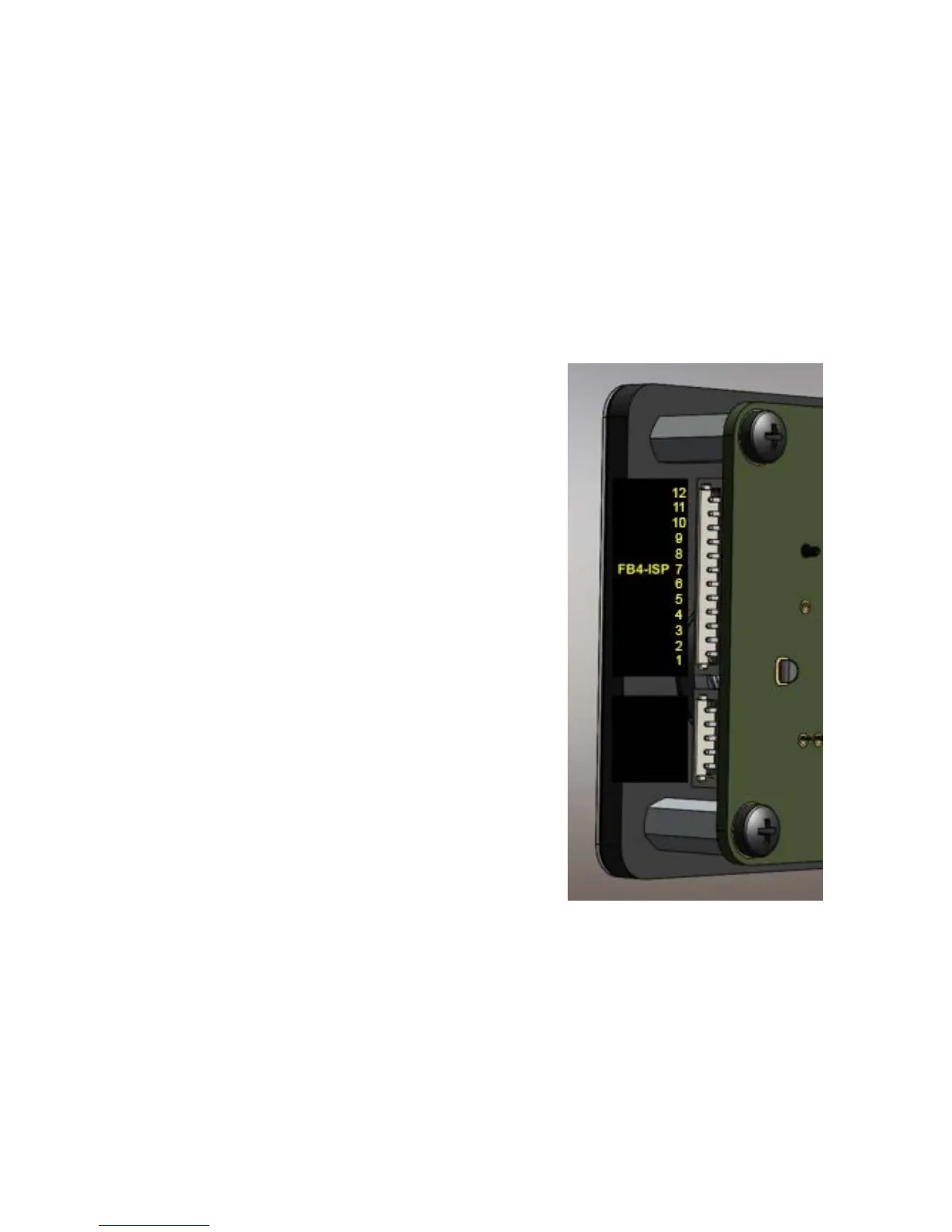

ISP Input
Pin Signal name Voltage level
1 GND
2 I2C SDA
3 I2C SCL
4 I2C INT
5 VCC 3.3V
6 B IN
7 G IN
8 R IN
9 Y IN
10 X IN
11 VSS -5.8V
12 VDD 5.8V
NOTE: The FB4 ILDA board will not generate ILDA out in [BEYOND/QS]
mode. The FB4 is meant as OEM device to be built in, into a laser or external
housing. All wires will need to be connected to the corresponding ports on the
FB4.
