Onboard Serial port output for DMX
The FB4 allows you to utilize the FB4’s onboard Serial port as DMX output for,
for example gratings. More information on this subject on page 18.

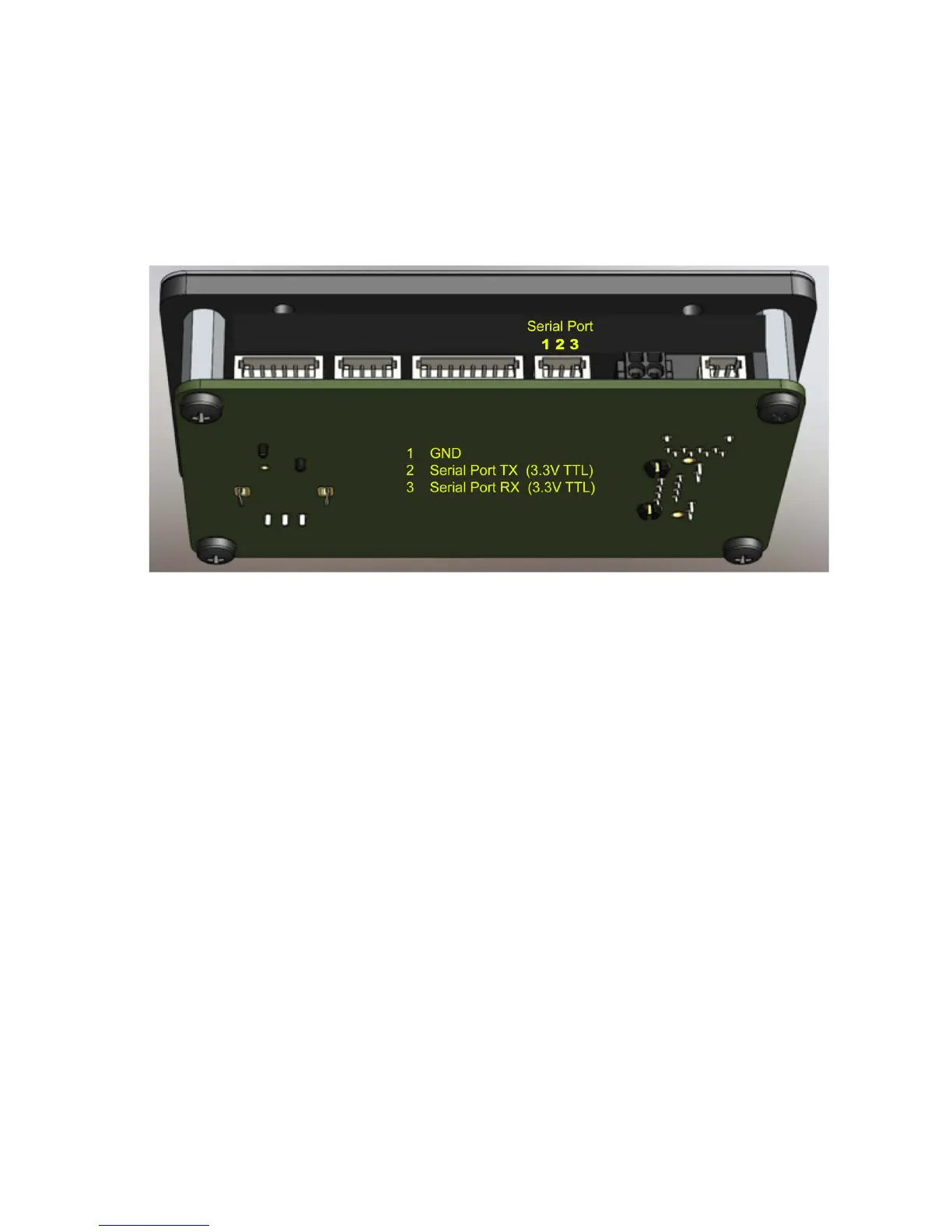

Pin Signal name Voltage level
1 GND
2 Serial Port TX 3.3V TTL
3 Serial Port RX 3.3V TTL
